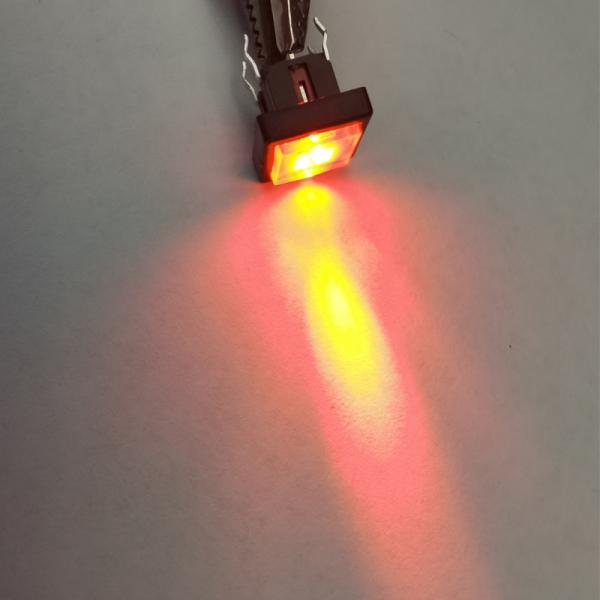

Illumination Tactile Switch,Square Cover Silicone Cap Led Push Button Tact Switch ,Lamp Switch,Illumination Tact Switch

The button switch with light is a control switch with manual operation (finger or palm), indicator

light and energy storage reset.

Assembly process of light touch switch:

First, assemble circuit: first, put the switch of the descending circuit on the sandwich layer first,

and then touch the silver paste lamp on the switch. It should be placed in the middle of the

sandwich, without foam, and then put on the circuit. Pay attention to the alignment of the upper

and lower circuits, and the contacts shall not be misplaced.

② Tail punch line: punch off the tail punch line with a tool holder, and the tail punch lines at both

ends shall be uniform. Use a rubber ruler to align the inner edge of the discharge hole with the

end line from top to bottom. It is important to note that the ruler should be glued to the other side

of the line to avoid sticking to the silver paste.

③ Make at least three circles, tap the ventilation slot together, and be careful to avoid passing

through the intersection of the upper and lower lines. If so, it should be sealed with clear glue.

④ Post circuit board: post the detected panel on the circuit. When posting, pay attention to the

alignment of the four corners, scrape the surface rubber bubble, and post it to the open place

to see if it is adhered.

Lamp switches'Features

1.High sensitive,sounds silvery,feeling and rhythm are perfect;

2.With a fixed-stand and covers in many kinds of structure and color

3.It can be mounted with single color led and double color or 3 colors led according to preference;

4.It can be assembled in different ways: DIP⪪ with Pushbutton and tact for operating.

Materials

LED Specifications

The led tact switch is suitable for TV,DVD,instruments and meter equipment,audio apparatus

KKG electric CO.,LTD. is a company which devotes itself to researching and manufacturing

the components such as switches, sockets and connectors. The Production of Products mainly

used in computer products, consumer electronics, electrical & electronics, industrial equipment

& components......

So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland

China, Taiwan(China) and Hong Kong .

1.KKG factory with high standard in product quality control;

2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.

3.Our customers from all over the world, like US, UK,Japan, Germany, Argentina, Mexico, Singapore

4.One-stop Service for Customers

Q1: Are you a factory or trading company

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?

A3:Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?

A4: If you can not buy our product in your local area, we will ship a sample to you.You will

be charged a sample price plus all related shipping costs.Express delivery charge depends

on the quantity of the samples.
