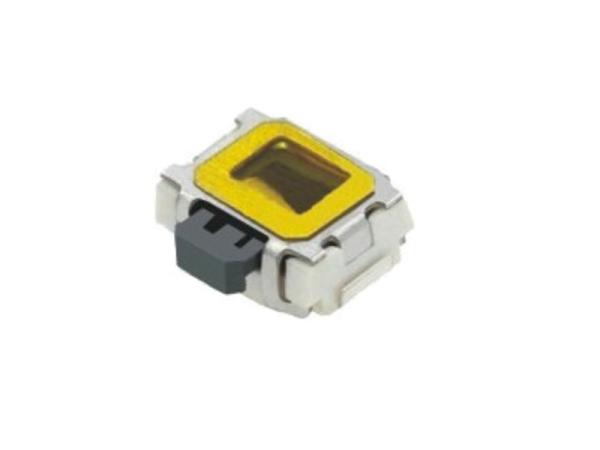

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin
Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin
Specifications
Brand Name :
KKG
Model Number :
TK-034CU
Place of Origin :
China
MOQ :
Accepted
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
15 - 20 days
Packaging Details :
Export package
Max. Voltage :
50VDC
Operating Temperature :
-30℃to+85℃
Max. Current :
50mA
Whether the smart :
No
Contact Resistance :
100mΩ Max
Type :
SMD tact switches
LED :
No
Travel :
0.25±0.1mm
life :
1000000circle
withstanding voltage :
250VACfor1min
Rated current :
50mA.12VDC
Operating force :
100g/160g/260g
Description

Small Turtle Side Press 2 Pin 3.9x3.6 Push Button Tactile Switch

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

The structure of thetact switch is composed of an insert, a base, a shrapnel, a button and a

cover plate. The waterproof light touch switch is composed of adding a layer of polyimide

film on the shrapnel.

Tact switches'Features

1. Good feeling and long life;

2. Micro-Miniature, light operating;

3. Snap-in type, can be mounted directly on P. C. Board and good for electrostatic discharge;

4. It has a lot of choices for button shape and height and it is easily to install and kind of product;

5. The tactile switches/tact switch come with multiple cap and color options, excellent tactile

feedback and high reliability dome technology.

Tact Switch's Specification

Brand : KKG
Housing material: plastic
Terminal material: stainless steel
Dimension: 3.8*3.6×H
Height range: 1.3/1.4/1.45/1.6mm
Max. Current: DC 50mA
Max voltage: 12V
Button color: Red / customer requested

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

1. Package in tube/reel/cut tape/bulk, bubble wrap, box, carton;

2. Original manufacturer package, the out package will be in a well condition

with suitable size to save the shipping cost;

3. Sample with same-day or the next-day delivery, bulk order within 3-7 days,

but depens on the exact quantity;

4. Customer shipping account are available;

5. If the declared value for customs clearance are required, please tell us before shipping;

6. Registered packet, DHL, FedEx, UPS, ARAMEX, Air shipping, Sea shipping.

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Because of its small size, long service life, light touch and other advantages, it has been

widely used in many fields such as household appliances.

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

KKG electric CO.,LTD. is a company which devotes itself to researching and manufacturing

the components such as switches, sockets and connectors. The Production of Products mainly

used in computer products, consumer electronics, electrical & electronics, industrial equipment

& components......

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

1. OEM/ODM
2. Free samples
3. Quick reply

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

1. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

2.what can you buy from us?

Tact Switch,Slide Switch,Multi-Function Switch,Lever Switch,Waterproof Switch

3. why should you buy from us not from other suppliers?

KKG Electronics is the first brand in China for micro switch, such as tact switch,

multi-functional type, slide switch, lever switch, and detector switch, etc. We promise

to our customers with high Quality, Competitive Price, Fast Delivery, Quick Response

4. what services can we provide?

Accepted Delivery Terms: FOB,CIF,DDP,DDU,Express Delivery；

Accepted Payment Currency:USD,EUR,HKD;

Accepted Payment Type: T/T,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin

Small Turtle Side Press 3.9x3.6 Push Button Tact Switch 2 Pin
