12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power
12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power
12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power
12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power
12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power
12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power
Specifications
Brand Name :
IMAX Power /Private label
Model Number :
12.8V 300AH（3840Wh）
Certification :
MSDS/ UN38.3
Place of Origin :
Made in China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
Carton/Wooden box
Rated Capacity :
300AH
Rated Voltage :
DC12
Usage :
Boats Marine
Cycle life :
3000 Times
Description

12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power

3000 Deep Cycle Battery Back Up Power 12V 300Ah LiFePO4 Lithium Li-Ion Boats Marine

3000 deep cycle battery back up power​ 12.8V 300AH(3840Wh) Lithium-ion Battery Pack Caravan RV Marine 12v deep cycle battery

Rechargeable Lithium ion SUBMARINES 12v 300ah LiFePO4 Battery Pack

1. Specifications

NO Item SPEC Remark
1 Rated Capacity 300AH
2 Rated Voltage DC12
3 Rated Energy 3840wh
4 Operating Voltage 11.2V～14.6V 2.8V～3.65V
5 Max. Charge Current 150A 0.5c
6 Max. Discharge Current 200A 0.6
7 Peak Current 300A(1s)
8 Ip Grade IP20
9 Discharge Temp -10℃～55℃
10 Charge Temp 0℃～55℃
11 Dimension L522*W270*H220(mm)
12 Weight 28kg
13 Internal Resistance ≤30mΩ
14 Cycle Life 5000 25℃
15

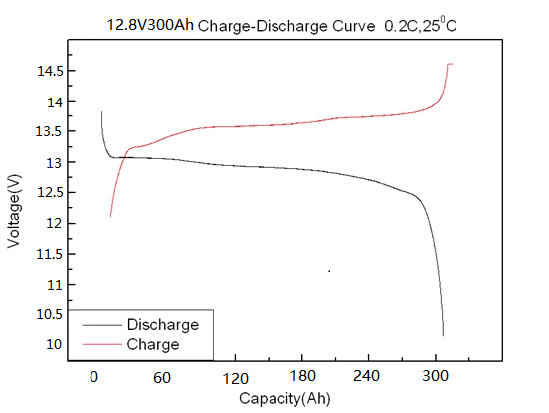

2. Characteristic Curve

12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power

3. BMS Description

NO Item MIN MAX Type Unit
1 Operating Voltage 11.2 14.6 / V
2 Continuous Charging Current 1 150 / A
3 Continuous Discharging Current 1 200 / A
4 Discharging Over Current 300 400 / A
5 Operating Temp -20 70 / ℃
6 Operating Humidit 10 85 / %
7 Internal Resistance ＜10 mΩ
8 Normal Operating Consumption ＜30 mA
9 Static Total Consumption 100 50 uA

12V 300Ah Home Energy Storage Battery 3000 Deep Cycle Back Up Power
