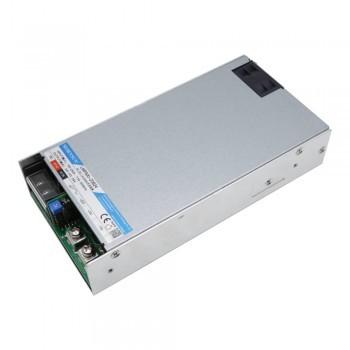

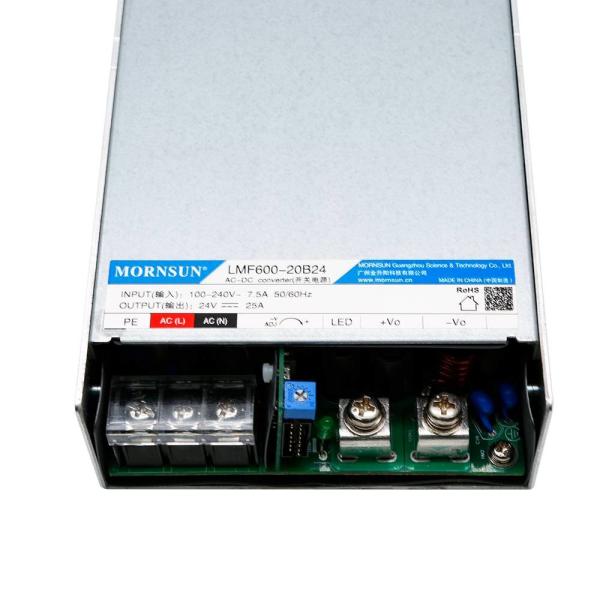

600W /24V Industrial AC DC Enclosed Power Supply with PFC function
600W /24V Industrial AC DC Enclosed Power Supply with PFC function
600W /24V Industrial AC DC Enclosed Power Supply with PFC function
600W /24V Industrial AC DC Enclosed Power Supply with PFC function
600W /24V Industrial AC DC Enclosed Power Supply with PFC function
600W /24V Industrial AC DC Enclosed Power Supply with PFC function
600W /24V Industrial AC DC Enclosed Power Supply with PFC function
600W /24V Industrial AC DC Enclosed Power Supply with PFC function
Specifications
Brand Name :
MORNSUN
Model Number :
LMF600-20Bxx Series
Certification :
UL/CE/CB
Place of Origin :
China
MOQ :
No
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
600W AC DC Power Supply with PFC function
Input voltage :
Universal 85~305V AC
Output voltage :
12V/15V/24V/27V/36V/48V
High I/O isolation :
4000VAC
Protection function :
OSC/OCP/ OVP/ OTP
Operating Temperature :
-40~70℃
Operating altitude :
5000m
Case Material :
Metal (SGCC)
Description

600W Ac Dc Power Supply with PFC function enclosed type power supply

Descriptions

LMF600-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective, low no load power consumption,high efficiency, high reliability and double or reinforced insulation.
These converters offer excellent EMC performance and meet IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Features

  • Universal 80 - 277VAC or 110- 390VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • Low standby power consumption, high efficiency, active PFC
  • High I/O isolation test voltage up to 4000VAC
  • The base plate with conformal coating
  • Output short circuit, over-current, over-voltage over-temperature protection
  • Remote sense compensation, remote ON/OFF function
  • DC_OK function
  • With 5V/1A standby power
  • Operating altitude up to 5000m


Specifications

Selection Guide

Certification

Part No.

Output Power

(W)

Nominal Output Voltage and Current

(Vo/Io)*

Output Voltage Adjustable

Range (V)

 Efficiency at 230VAC (%) Typ.

Max.

Capacitive Load (µF)

Remote Sense Compensation

(mV)

 Standby (Vo/Io)*



EN/CCC

 LMF600-20B12



600

 12V/50A 11.8-12.6

92

6000



500



5V/1A
LMF600-20B15 15V/40A 14.7-15.8
LMF600-20B24 24V/25A 23.5-25.2


94

4000
LMF600-20B27 27V/22.3A 26.4-28.4
LMF600-20B36 36V/16.7A 35.3-37.8 2400
LMF600-20B48 48V/12.6A 47.0-50.4 1600

Note: 1.*Under any conditions, the total power of the product should not exceed the 600W rated power, and the output current cannot exceed the rated output current;

2.*Standby power: provide 5V/1A independent output, it is recommended to use with the main circuit.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 80 -- 277 VAC
DC input 110 -- 390 VDC
Input Voltage Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 7.5

A
230VAC -- -- 3.5
Inrush Current 230VAC Cold start -- 40 --

Power Factor

 115VAC

Full load

 -- 0.98 --

--
230VAC -- 0.95 --
Leakage Current 240VAC ＜0.1mA
Hot Plug Unavailable
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 101.6 x 203.1 x 40.6mm
Weight 1000g (Typ.)
Cooling Method Forced air convection
