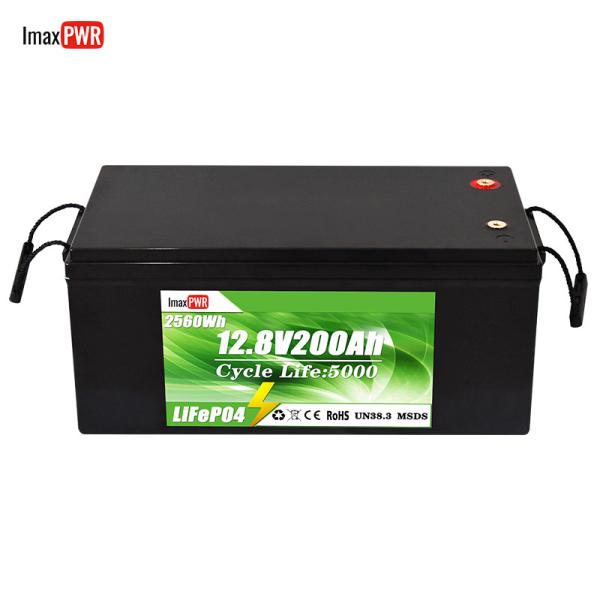

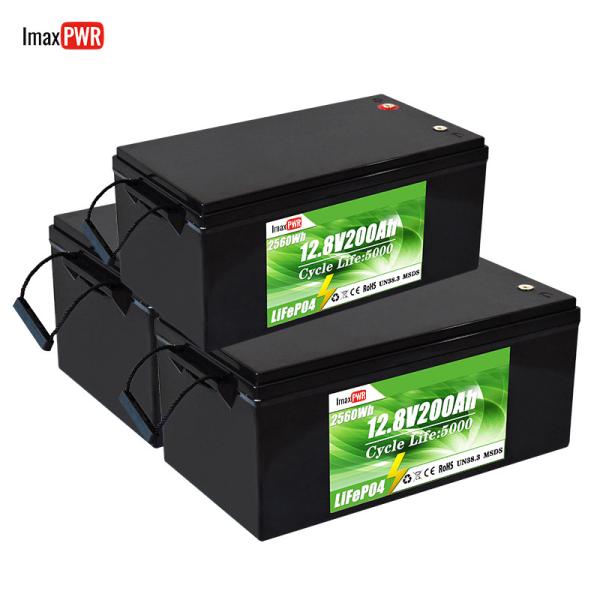

12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine
Specifications
Brand Name :
IMAX Power
Model Number :
12.8V 200AH（2560Wh）
Certification :
MSDS/ UN38.3 /CE
Place of Origin :
Made in China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T
Packaging Details :
Carton/Wooden box
Rated Capacity :
200AH
Usage :
Solar System
Rated Energy :
2560wh
Voltage :
12.8v
Material :
Eco Friendly
Description

12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine

12.8V 200Ah LiFePO4 Lithium Li-ion Solar Caravan RV Marine 12v deep cycle battery

12.8V 200AH(2560Wh) Lithium-ion Battery Pack Specification

NO Item SPEC Remark
1 Rated Capacity 200AH
2 Rated Voltage DC12
3 Rated Energy 2560wh
4 Operating Voltage 11.2V～14.6V 2.8V～3.65V
5 Max. Charge Current 100A 0.5c
6 Max. Discharge Current 200A 1c
7 Peak Current 300A (1s)
8 Ip Grade IP20
9 Discharge Temp -10℃～55℃
10 Charge Temp 0℃～55℃
11 Dimension L532*W207*H215(mm)
12 Weight 22kg
13 Internal Resistance ≤30mΩ
14 Cycle Life 3000 25℃
15

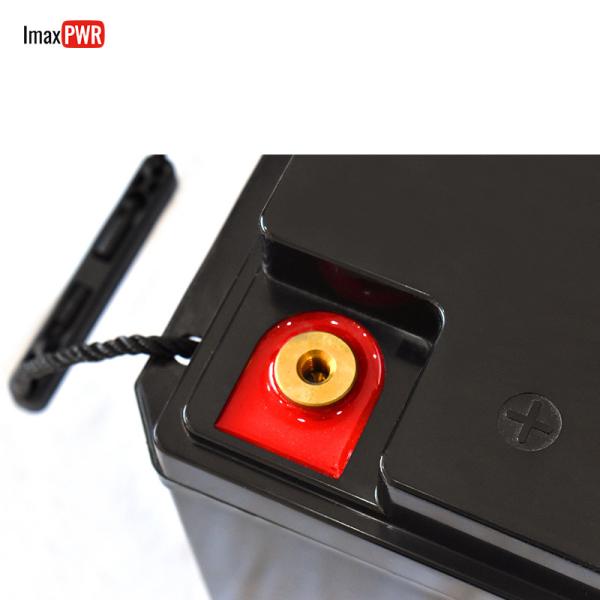

Item SPEC Interface Refer
POSITIVE binding post

M8 screw

NEGATIVE binding post

M8 screw

12.8V 200Ah Home Energy Storage Battery Pack For Caravan RV Marine

BMS Description

NO Item MIN MAX Type Unit
1 Operating Voltage 11.2 14.6 / V
2 Continuous Charging Current 1 100 / A
3 Continuous Discharging Current 1 200 / A
4 Discharging Over Current 210 300 / A
5 Operating Temp -20 70 / ℃
6 Operating Humidit 10 85 / %
7 Internal Resistance ＜10 mΩ
8 Normal Operating Consumption ＜30 mA
9 Static Total Consumption 100 50 uA
Product tags

rv camper battery

,

camping battery pack inverter

,

battery rv
