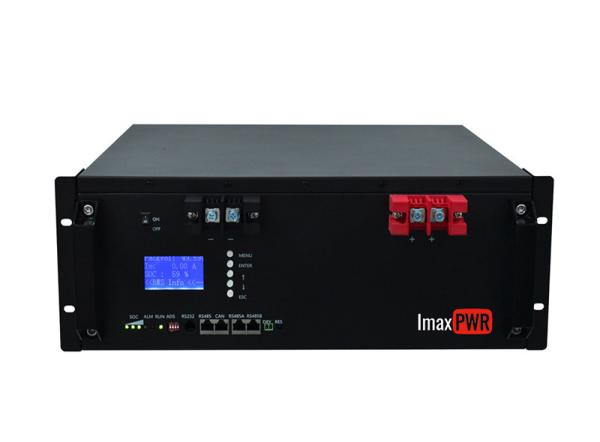

4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station
4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station
4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station
4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station
4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station
4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station
Specifications
Brand Name :
IMAX POWER
Model Number :
IM-100ABox-48100
Certification :
UN38.3,MSDS,UL1973(cell),IEC62619(cell)
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500PCS/Day
Delivery Time :
Negotiated
Packaging Details :
Carton packed /Wooden case packed
Capacity :
100Ah
Nominal voltage :
48V
Energy :
4.8KWh
BMS Charge Curren :
50A 0.5C(max)
BMS Discharge Current :
100A 1C(max)
Dimensions :
L480*W420*H176(mm)(4U)
Weight :
42kgs
Description

4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station

8Volt Cabinet series LiFePO4 48V 100Ah Lithium Battery storage​ for Telecommunication base station

4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station

Features

4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station

Specification—48V/51.2V Lithium Battery UPS cabinet system series
Model IM-200ABox-481200
Battery type LiFePO4
Nominal voltage 48V/51.2V(optional)
Capacity 1200Ah
Energy 60KWh
Internal Resistance ≤60mΩ
Cycle life

≥5000cycles@80%DOD,25℃,0.5c

≥4000cycles@80%DOD,40℃,0.5c
Design life ≥10 years
Charge cut-off Voltage 53.0V±0.5V(15S); 56.0V±0.5V(16S);
Max.Continuous work current 400A
Discharge cut-off voltage 45V±1.0V(15S),48V±1.0V(16S)
Charge Temperature 0℃~60℃(under 0℃ extra heating mechanism)
Discharge Temperature -20℃~60℃(under 0℃ extra heating mechanism)
Storage Temperature -40℃~55℃@60%±25% relative humidity
IP Grade IP21
Dimensions 600*800*1610mm
Weight Approx:680kgs
Protocol(Optional) RS232-PC,RS485(B)-PC,RS485(A)-Inverter,Canbus-Inverter
Certification UN38.3,MSDS,UL1973(cell),IEC62619(cell)

Support inverter Brands

4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station

Cycle Life

4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station

Application

4.8KWh 48V 100Ah Lifepo4 Battery For Telecommunication Base Station

Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External housing design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Support Customized Design service.

FAQs:

Q: Are you manufacture?

A: Yes, Welcome you visit our factory.

Q: Do you accept OEM/ODM? Can you do private label for us?

A: Yes,OEM/ODM welcomed. We can support private label service.


Q:How about the real capacity of your battery?
A: All of our battery cells with Grade A,100% brand new and real capacity.

Q: Do you get certificates?
A: We can provide MSDS,UN38.3, CE,FCC,IEC62133 certificates for standard products.


Contact us for more information.

Tag:

100Ah 48V/51.2V Rechargeable LiFePO4 Battery for New energy communication base station

100Ah 48V/51.2V LiFePO4 Battery for Telecommunication base station

51.2Volt 48Volt Cabinet series LiFePO4 51.2V 100Ah Lithium Battery storage​ for Telecommunication base station

4800Wh 48V/51.2V 100Ah Rechargeable LiFePO4 Battery energy storagefor telecom backup

48V/51.2V Rechargeable Rack mount series LiFePO4 48V/51.2V 100Ah Lithium Battery energy storage
