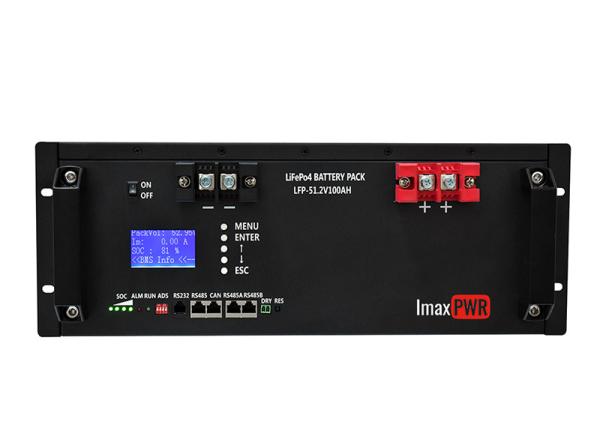

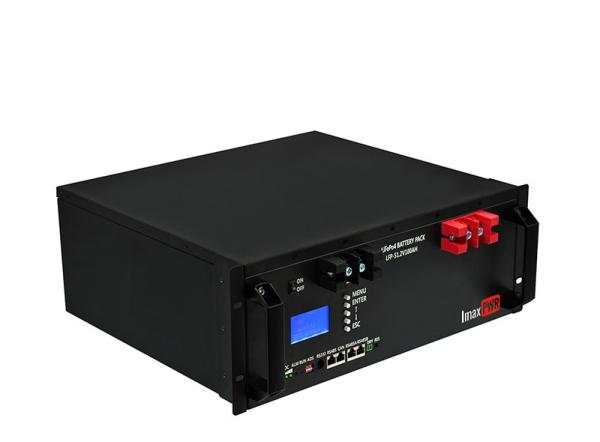

5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup
5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup
5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup
5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup
5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup
5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup
Specifications
Brand Name :
IMAX POWER
Model Number :
IM-100ABox-5120
Certification :
UN38.3,MSDS,UL1973(cell),IEC62619(cell)
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500PCS/Day
Delivery Time :
Negotiated
Packaging Details :
Carton packed /Wooden case packed
Capacity :
100Ah
Nominal voltage :
51.2V
Energy :
5120Wh
.BMS Charge Current: :
50A 0.5C
BMS Discharge Current :
100A 1C
Dimensions :
L482*W420*H177(mm)
Weight :
45kgs
Material :
Metal
Description

5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup

51.2Volt Cabinet series LiFePO4 51.2V 100Ah Lithium Battery storage​ for Telecommunication base station

5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup

Features

5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup

Specification—48V/51.2V Lithium Battery UPS cabinet system series
Model IM-100ABox-5120
Battery type LiFePO4
Nominal voltage 51.2V(optional)
Capacity 100Ah
Energy 5120Wh
Internal Resistance ≤60mΩ
Cycle life

≥5000cycles@80%DOD,25℃,0.5c

≥4000cycles@80%DOD,40℃,0.5c
Design life ≥10 years
Charge cut-off Voltage 53.0V±0.5V(15S); 56.0V±0.5V(16S);
Max.Continuous work current 400A
Discharge cut-off voltage 45V±1.0V(15S),48V±1.0V(16S)
Charge Temperature 0℃~60℃(under 0℃ extra heating mechanism)
Discharge Temperature -20℃~60℃(under 0℃ extra heating mechanism)
Storage Temperature -40℃~55℃@60%±25% relative humidity
IP Grade IP21
Dimensions
L482*W420*H177(mm)
Weight Approx:45kgs
Protocol(Optional) RS232-PC,RS485(B)-PC,RS485(A)-Inverter,Canbus-Inverter
Certification UN38.3,MSDS,UL1973(cell),IEC62619(cell)

Support inverter Brands

5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup

Cycle Life

5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup

Application

5120Wh Lithium Iron Lifepo4 Battery Energy Storage For Telecom Backup

Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External housing design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Support Customized Design service.

FAQs:

Q: Are you manufacture?

A: Yes, Welcome you visit our factory.

Q: Do you accept OEM/ODM? Can you do private label for us?

A: Yes,OEM/ODM welcomed. We can support private label service.


Q:How about the real capacity of your battery?
A: All of our battery cells with Grade A,100% brand new and real capacity.

Q: Do you get certificates?
A: We can provide MSDS,UN38.3, CE,FCC,IEC62133 certificates for standard products.


Contact us for more information.
