30W Open Frame AC DC Power Supply 110VDC Smart Grid Dual Supply SMPS
30W Open Frame AC DC Power Supply 110VDC Smart Grid Dual Supply SMPS
30W Open Frame AC DC Power Supply 110VDC Smart Grid Dual Supply SMPS
30W Open Frame AC DC Power Supply 110VDC Smart Grid Dual Supply SMPS
Specifications
Brand Name :
MORNSUN
Model Number :
LO30-23BxxE Series
Certification :
\
Place of Origin :
China
MOQ :
/
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
30W AC DC Open Frame Switching Power Supply
Input voltage :
Ultra-wide 85 - 305VAC and 88- 430VDC input voltage range
Output Voltage :
3.3/5/12/15/24V
Input Frequency :
47~440HZ
Operating Temperature :
-40~85°C
Efficiency :
>80%
Dimension :
105.00 x 50.00 x 30.00 mm
Weight :
110g (Typ.)
Description

30W AC DC Open Frame Switching Power Supply single output

Descriptions

LO30-23BxxE series is a special power supply design for the smart grid industry that meets the power industry standards.It features AC input and at the same time accepts DC input voltage,with ultra-wide input voltage range,wide operating temperature range,high EMS level, high reliability,and high isolation.EMC and safety specifications meet IEC/EN61000-4,CISPR32/EN55032,UL/EN/IEC62368 standards.It is suitable for smart grid occasions with poor power quality and high reliability requirements,such as smart power transmission and substations. It also can be used in microcomputer protection equipment,bus voltage protection equipment or equipment with high reliability requirements that require110VDC input voltage.

Features

  • Specific power supply designing for smart grid
  • Ultra-wide 85 - 305VAC and 88- 430VDC input voltage range
  • Ultra-wide operating ambient temperature range:-40℃ to +85℃
  • High reliability, low output ripple & noise
  • EMI performance meets CISPR32/EN55032 CLASS B
  • Immunity meets electricity standard Level 4
  • Meets impulse voltage requirements of 1.2/50us 5KV
  • Designed to meet UL/EN/IEC62368 standards
  • EN62368 safety approval

​Specifications

Selection Guide
CertificationPart No.Output PowerNominal Output Voltage and CurrentOutput Voltage Adjustable Range(V)Efficiency at 230VAC (%) Typ.Capacitive Load (µF) Max.


CE

LO30-23B03E19.8W3.3V/6000mA2.97-3.637730000
LO30-23B05E

30W

5V/6000mA4.5-5.58230000
LO30-23B12E12V/2500mA10.8-13.28615000
LO30-23B15E15V/2000mA13.5-16.58712000
LO30-23B24E31.2W24V/1300mA21.6-26.4882000
Input Specifications
ItemOperating ConditionsMin.Typ.Max.Unit

Input Voltage Range

AC input85--305VAC
DC input88--430VDC
Input Frequency 47--440Hz

Input Current

115VAC----750

mA

230VAC----450

Inrush Current

115VAC--15--

A

230VAC--30--
Leakage Current277VAC0.3mA RMS max.
Hot Plug Unavailable
Output Specifications
ItemOperating ConditionsMin.Typ.Max.Unit

Output Voltage Accuracy

0% - 100% load

3.3V, 5V output--±2--


%

Other output--±1--

Line Regulation

Rated load

3.3V, 5V output--±0.8--
Other output--±0.4--
Load Regulation0% - 100% load--±1--
Ripple & Noise*100MHz bandwidth (peak-to-peak value)--50120mV
Stand-by Power Consumption ----0.5W
Temperature Coefficient --±0.02--%/°C
Short Circuit Protection Hiccup, continuous, self-recovery
Mechanical Specifications
Dimension105.00 x 50.00 x 30.00 mm
Weight110g (Typ.)
Cooling methodFree air convection

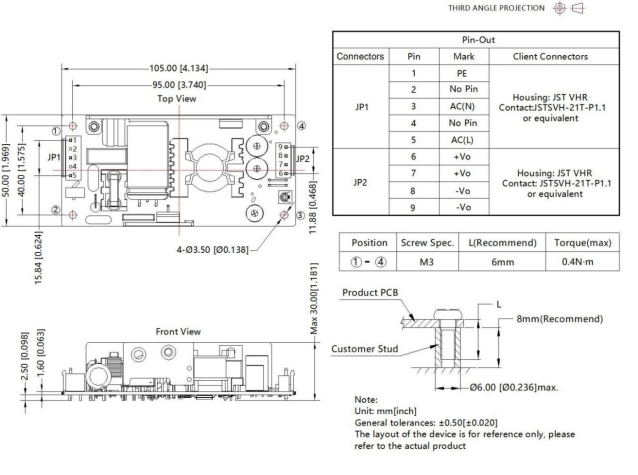

Dimensions and Recommended Layout

30W Open Frame AC DC Power Supply 110VDC Smart Grid Dual Supply SMPS
