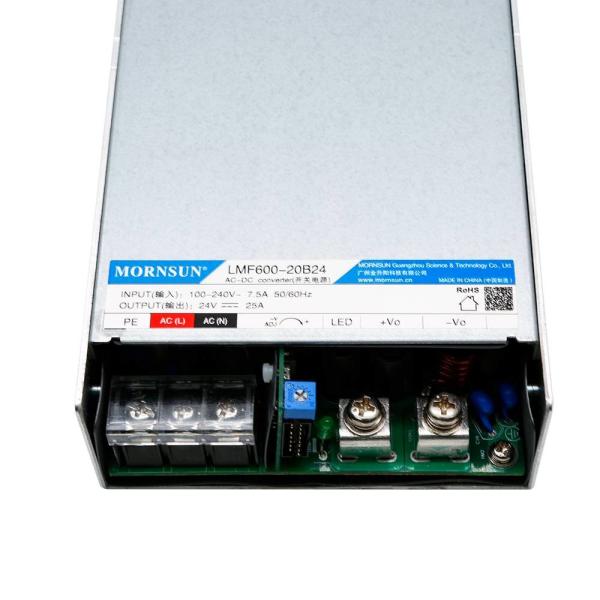

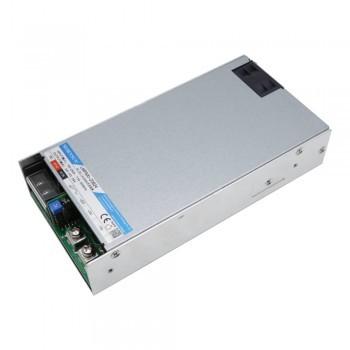

24 Volt Industrial AC DC Enclosed Power Supply 600W PFC GB4943
24 Volt Industrial AC DC Enclosed Power Supply 600W PFC GB4943
24 Volt Industrial AC DC Enclosed Power Supply 600W PFC GB4943
24 Volt Industrial AC DC Enclosed Power Supply 600W PFC GB4943
Specifications
Brand Name :
MORNSUN
Model Number :
LMF600-20Bxx Series
Certification :
UL/CE/CB
Place of Origin :
China
MOQ :
No
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
600W AC DC Power Supply with PFC function
Input voltage :
Universal 85~305V AC
Output voltage :
12V/15V/24V/27V/36V/48V
High I/O isolation :
4000VAC
Protection function :
OSC/OCP/ OVP/ OTP
Operating Temperature :
-40~70℃
Operating altitude :
5000m
Case Material :
Metal (SGCC)
Description

600W Ac Dc Power Supply with PFC function enclosed type power supply

Descriptions

LMF600-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective, low no load power consumption,high efficiency, high reliability and double or reinforced insulation.
These converters offer excellent EMC performance and meet IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Features

  • Universal 80 - 277VAC or 110- 390VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • Low standby power consumption, high efficiency, active PFC
  • High I/O isolation test voltage up to 4000VAC
  • The base plate with conformal coating
  • Output short circuit, over-current, over-voltage over-temperature protection
  • Remote sense compensation, remote ON/OFF function
  • DC_OK function
  • With 5V/1A standby power
  • Operating altitude up to 5000m


Specifications

Selection Guide

Certification

Part No.

Output Power

(W)

Nominal Output Voltage and Current

(Vo/Io)*

Output Voltage Adjustable

Range (V)

 Efficiency at 230VAC (%) Typ.

Max.

Capacitive Load (µF)

Remote Sense Compensation

(mV)

 Standby (Vo/Io)*



EN/CCC

 LMF600-20B12



600

 12V/50A 11.8-12.6

92

6000



500



5V/1A
LMF600-20B15 15V/40A 14.7-15.8
LMF600-20B24 24V/25A 23.5-25.2


94

4000
LMF600-20B27 27V/22.3A 26.4-28.4
LMF600-20B36 36V/16.7A 35.3-37.8 2400
LMF600-20B48 48V/12.6A 47.0-50.4 1600

Note: 1.*Under any conditions, the total power of the product should not exceed the 600W rated power, and the output current cannot exceed the rated output current;

2.*Standby power: provide 5V/1A independent output, it is recommended to use with the main circuit.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 80 -- 277 VAC
DC input 110 -- 390 VDC
Input Voltage Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 7.5

A
230VAC -- -- 3.5
Inrush Current 230VAC Cold start -- 40 --

Power Factor

 115VAC

Full load

 -- 0.98 --

--
230VAC -- 0.95 --
Leakage Current 240VAC ＜0.1mA
Hot Plug Unavailable
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 101.6 x 203.1 x 40.6mm
Weight 1000g (Typ.)
Cooling Method Forced air convection

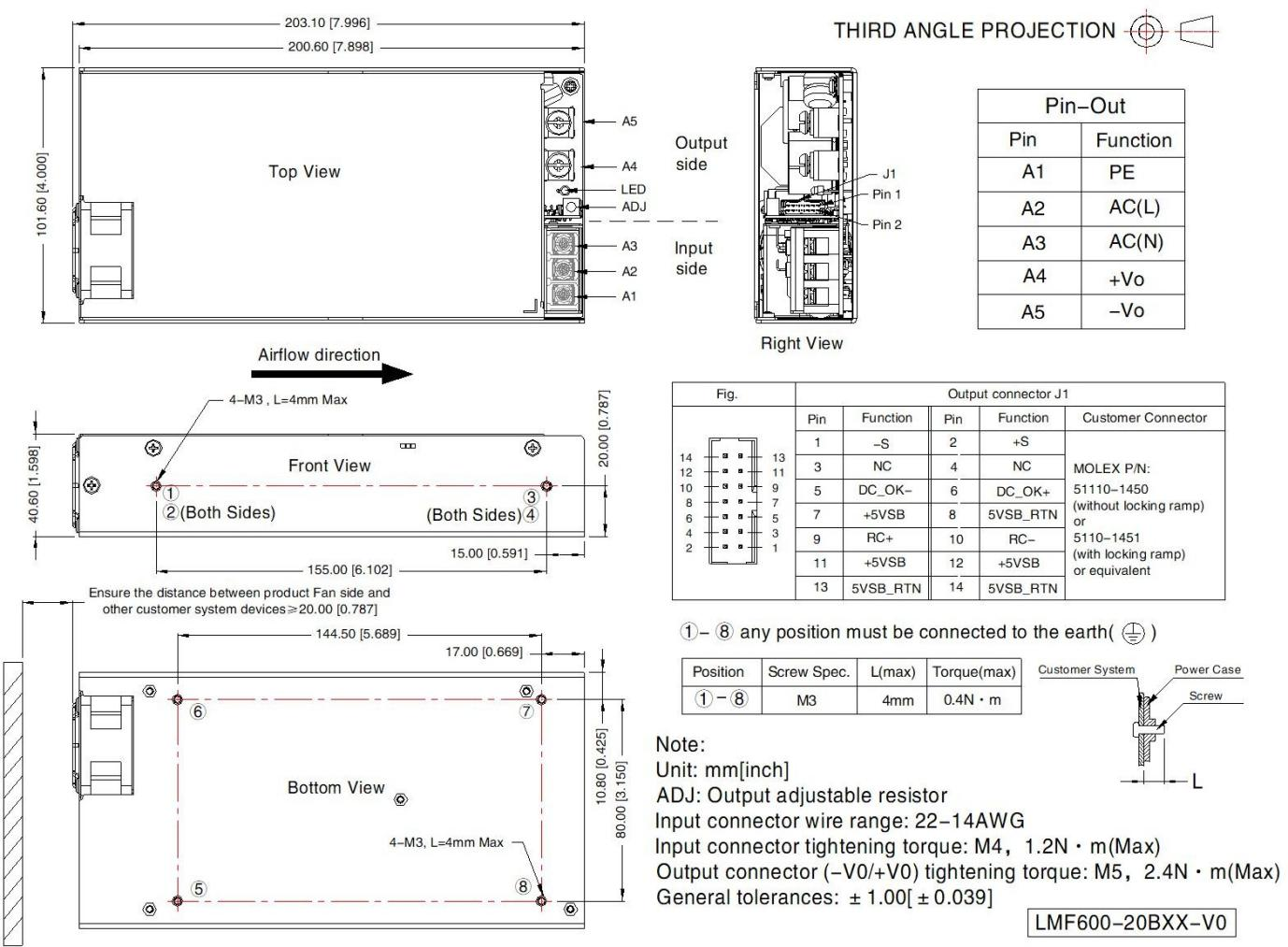

Dimensions and Recommended Layout

24 Volt Industrial AC DC Enclosed Power Supply 600W PFC GB4943
