120VDC Industrial Din Rail Power Supply Universal 75W For IoT
120VDC Industrial Din Rail Power Supply Universal 75W For IoT
120VDC Industrial Din Rail Power Supply Universal 75W For IoT
120VDC Industrial Din Rail Power Supply Universal 75W For IoT
120VDC Industrial Din Rail Power Supply Universal 75W For IoT
120VDC Industrial Din Rail Power Supply Universal 75W For IoT
Specifications
Brand Name :
MORNSUN
Model Number :
LM75-20Bxx
Certification :
UL/CB/CE/CCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
Western Union, T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
75W Enclosed Ac Dc Enclosed Type Power Supply
Input voltage :
85~305VAC
Output voltage :
5V/12V/15V/24V/36V/48
Output frequency :
47-63HZ
Efficiency :
≥86%
Output type :
Single
Dimension :
99.00 x 97.00 x 30.00 mm
Cooling Method :
Free air convection
Description

75W Enclosed Ac Dc Enclosed Type Power Supply LED street light control

Descriptions

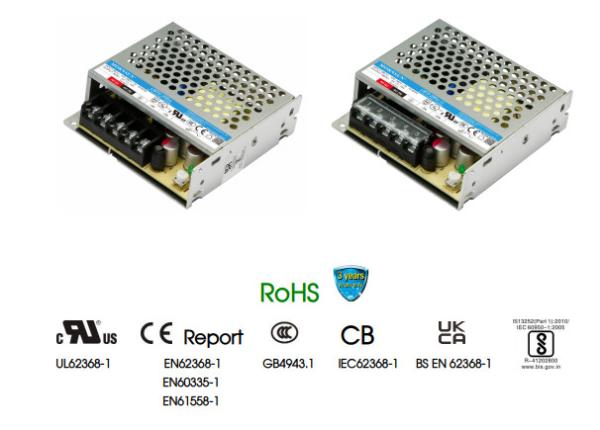

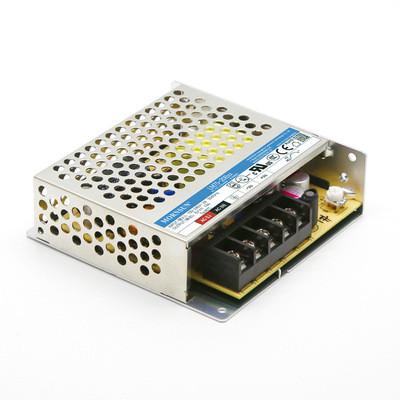

LM75-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC/UL/EN62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Applications

Widely used in industrial control, LED street light control,smart home, transportation, renewable energy, IoT, power grid, automotive etc.

Features

  • Universal 85 - 264VAC or 120 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • IEC/EN/UL62368, EN60335, GB4943 safety approved
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

Specifications

Selection Guide
Certification Part No.* Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

UL/CE/CCC/CB

 LM75-20B05 70 5V/14A 4.5-5.5 86 10000
LM75-20B12 72 12V/6A 10.2-13.8 88 6000
LM75-20B15 75 15V/5A 13.5-18 88 5000
LM75-20B24 76.8 24V/3.2A 21.6-28.8 90 1500
LM75-20B36 75.6 36V/2.1A 32.4-39.6 90 1000
LM75-20B48 76.8 48V/1.6A 43.2-52.8 91.5 680
Note: *Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 115VAC -- -- 2

A
230VAC -- -- 1
Inrush Current 115VAC Cold start -- 40 --
230VAC -- 65 --
Leakage Current 240VAC ＜0.75mA
Hot Plug

Unavailable

Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range 5V -- ±2 --

%
12V/15V/24V/36V/48V -- ±1 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load 5V -- ±1 --
12V/15V/24V/36V/48V -- ±0.5 --

Ripple & Noise*

20MHz bandwidth (peak-to-peak value)

 5V -- 100 --

mV
12V/15V -- 120 --
24V -- 150 --

36V -- 200 --
48V -- 200 --
Temperature Coefficient 0℃ to 50℃, 230VAC -- ±0.03 -- %/℃
Minimum Load 0 -- -- %
Stand-by Power Consumption -- -- 0.3 W

Hold-up Time

 115VAC 8 -- --

ms
230VAC 55 -- --
Short Circuit Protection Recovery time <5s after the short circuit disappear. Hiccup, continuous, self-recovery
Over-current Protection 110%-200% Io, self-recovery

Over-voltage Protection

 5V ≤6.3VDC (Output voltage clamp)
12V ≤16.2VDC (Hiccup, self-recovery)
15V ≤21.75VDC (Hiccup, self-recovery)
24V ≤33.6VDC (Hiccup, self-recovery)
36V ≤50VDC (Output voltage clamp)
48V ≤60VDC (Output voltage clamp)
Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information.

Mechanical Specifications
Case Material Metal(AL1100, SGCC)

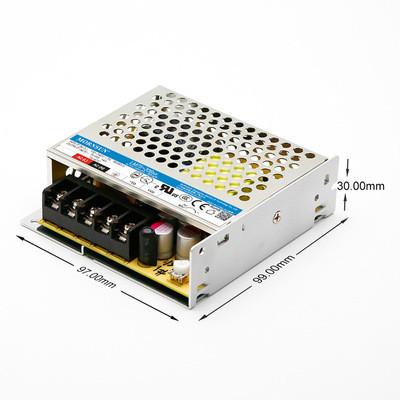

Dimensions 99.00 x 97.00 x 30.00 mm
Weight 220g (Typ.)
Cooling Method Free air convection

Dimensions and Recommended Layout

120VDC Industrial Din Rail Power Supply Universal 75W For IoT
