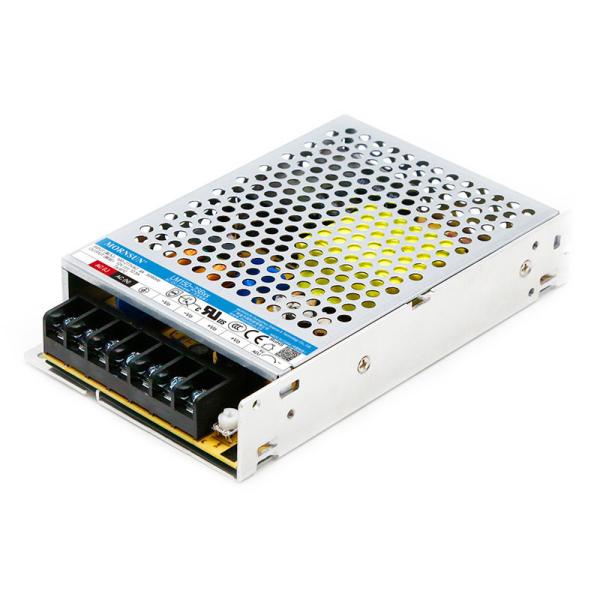

150W Active PFC AC DC Enclosed Power Supply 48V EN55032 120 - 430VDC
150W Active PFC AC DC Enclosed Power Supply 48V EN55032 120 - 430VDC
150W Active PFC AC DC Enclosed Power Supply 48V EN55032 120 - 430VDC
150W Active PFC AC DC Enclosed Power Supply 48V EN55032 120 - 430VDC
150W Active PFC AC DC Enclosed Power Supply 48V EN55032 120 - 430VDC
150W Active PFC AC DC Enclosed Power Supply 48V EN55032 120 - 430VDC
Specifications
Brand Name :
MORNSUN
Model Number :
LMF150-23Bxx
Certification :
UL/CE/CCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
150W AC DC Power Supply with PFC function
Input voltage :
Universal 85 - 305V AC
Output voltage :
12V/15V/24V/48
MTBF(MIL-HDBK-217F@25℃) :
>300,000 h
Efficiency :
≥85%
Case Material :
Metal (SGCC)
Dimension :
179.00 × 99.00 × 30.00mm
Weight :
500g (Typ.)
Description

150W Ac Dc Power Supply with PFC function enclosed type power supply

Descriptions

LMF150-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,built-inactive PFC function,high efficiency and high reliability.

These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,UL/EN/IEC62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Features

  • Universal 85 - 305V AC or 120 - 430VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range: -30℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current (Built-in constant current limiting circuit), over-voltage,
  • over-temperature protection
  • Remote ON-OFF control
  • UL/EN/IEC62368, GB4943 safety approved
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

Specifications

Selection Guide
Certification Part No.* Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

UL/CE/CB/CCC

 LMF150-23B12 150 12V/12.5A 10.2-13.8 85.5 5000
LMF150-23B15 150 15V/10A 13.5-18 86 5000
LMF150-23B24 151.2 24V/6.3A 21.6-28.8 87 5000
LMF150-23B48 153.6 48V/3.2A 45.6-55.2 88 3000
Note: *Use suffix ”C” for terminal with protective cover and suffix ”Q” for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 85 -- 305 VAC
DC input 120 -- 430 VDC
Input Voltage Frequency 47 -- 63 Hz

Input Current

 85VAC -- -- 2.5

A
115VAC -- -- 2.0
230VAC -- -- 1.0
Inrush Current 115VAC Cold Start -- -- 30
230VAC -- -- 45
Power Factor 115VAC At full Load 0.97 0.99 -- --
230VAC 0.91 0.98 --
Leakage Current 277VAC ＜2mA
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full Load Range 12V/15V -- ±2 --

%
24V/48V -- ±1 --
Line Regulation Rated Load -- ±0.5 --
Load Regulation 0% - 100% load -- ±0.5 --

Output Ripple & Noise*

 20MHz bandwidth (peak-to-peak value) 12V/15V -- 100 --

mV
24V -- 150 --
48V -- 250 --
Temperature Coefficient -- ±0.05 -- %/℃
Minimum Load 0 -- -- %
Hold-up Time 230VAC 16 -- -- ms
Short Circuit Protection Recovery time <3s after the short circuit disappear. Constant current, continuous, self-recover
Over-current Protection 105%-150% Io, constant current mode, self-recover

Over-voltage Protection

 12V ≤16.8V (Output voltage turn off, re-power on for recover)
15V ≤24.5V (Output voltage turn off, re-power on for recover)
24V ≤33.6V (Output voltage turn off, re-power on for recover)
48V ≤60V (Output voltage turn off, re-power on for recover)

Over-temperature Protection*

 Over-temperature Protection Activation -- -- 85

℃
Over-temperature Protection Deactivation 50 -- --

Remote Control

 Open or 0~0.8VDC Power ON 0 -- 0.8

VDC
4-10VDC Power OFF 4 -- 10

Note: 1. *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information;

2. *Over-temperature Protection needs to be tested under rated full load conditions.
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 179.00 × 99.00 × 30.00mm
Weight 500g (Typ.)
Cooling Method Free air convection

Dimensions and Recommended Layout

150W Active PFC AC DC Enclosed Power Supply 48V EN55032 120 - 430VDC
