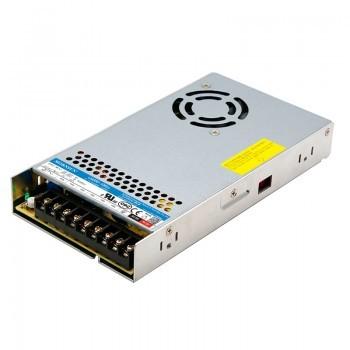

350W 12V AC DC Power Supply 90VAC Input LM350-10Bxx Enclosed Type power supply
350W 12V AC DC Power Supply 90VAC Input LM350-10Bxx Enclosed Type power supply
350W 12V AC DC Power Supply 90VAC Input LM350-10Bxx Enclosed Type power supply
350W 12V AC DC Power Supply 90VAC Input LM350-10Bxx Enclosed Type power supply
350W 12V AC DC Power Supply 90VAC Input LM350-10Bxx Enclosed Type power supply
350W 12V AC DC Power Supply 90VAC Input LM350-10Bxx Enclosed Type power supply
Specifications
Brand Name :
MORNSUN
Model Number :
LM350-10Bxx
Certification :
UL/CB/CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
350W AC DC Power Supply smart home enclosed type
Selectable Input voltage :
90 - 132VAC/180 - 264VAC
Output voltage :
5V/12V/15V/24V/36V/48
Input Voltage frequency :
47-63HZ
Efficiency :
≥86%
Case Material :
Metal (AL1100, SGCC)
Dimension :
215.00 x 115.00 x 30.00mm
Weight :
700g (Typ.)
Description

350W Ac Dc Power Supply smart home enclosed type

Features

  • Selectable AC input range: 90 - 132VAC/180 - 264VAC
  • DC input range: 240 - 370VDC
  • Operating ambient temperature range: - 30℃ to +70℃
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Built-in DC fan
  • Operating up to 5000m altitude

Descriptions

LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features selectable AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency and high reliability.These power supply offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC/UL/EN62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Specifications

Selection Guide
Certification Part No.* Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

UL/EN IEC/CQC

 LM350-10B05 300 5V/60A 4.5-5.5 83.5 10000
LM350-10B12 348 12V/29A 10.2-13.8 85 4000
LM350-10B15 348 15V/23.2A 13.5-18 86 3300
LM350-10B24 350.4 24V/14.6A 21.6-28.8 87 1500
LM350-10B36 349.2 36V/9.7A 32.4-39.6 88 1500
LM350-10B48 350.4 48V/7.3A 43.2-52.8 88.5 470
Note: *Use suffix “C” for terminal with protective cover, suffix “Q” for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

AC input

 Low voltage (switch in position of 115) 90 -- 132

VAC
High voltage (switch in position of 230) 180 -- 264
DC input Switch in position of 230 240 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 115VAC -- 6.8 8

A
230VAC -- 3.4 4
Inrush Current 115VAC Cold start -- 60 --
230VAC -- 60 --
Leakage Current 240VAC -- -- 0.75 mA
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit

Output Voltage Accuracy

Full load range

 5V -- ±3 --

%
12V -- ±1.5 --
15V/24V/36V/48V -- ±1 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load 5V -- ±2 --
12V -- ±1 --
15V/24V/36V/48V -- ±0.5 --

Output Ripple & Noise*

 20MHz bandwidth (peak-to-peak value) 5V/12V/15V/24V -- 150 --

mV
36V/48V -- 200 --
Temperature Coefficient -- ±0.02 -- %/℃
Minimum Load 0 -- -- %
Stand-by Power Consumption 230VAC, 25℃ -- -- 0.75 W
Hold-up Time 115VAC -- 12 -- ms
230VAC -- 16 --
Short Circuit Protection Recovery time <8s after the short circuit disappear Hiccup, continuous, self-recover
Over-current Protection 110% - 180% Io, self-recover

Over-voltage Protection

 5V 5.75V-6.75V (Hiccup, self-recover)
12V 13.8V-16.2V (Hiccup, self-recover)
15V 18V-21V (Hiccup, self-recover)
24V 28.8V-33.6V (Hiccup, self-recover)
36V 41.4V-46.8V (Hiccup, self-recover)
48V 55.2V-59.5V (Hiccup, self-recover)
Over-temperature Protection Hiccup, self-recover
Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, details please refer to Enclosed Switching Power Supply Application Notes.
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 215.00 x 115.00 x 30.00mm
Weight 700g (Typ.)
Cooling Method Free air convection

Dimensions and Recommended Layout

350W 12V AC DC Power Supply 90VAC Input LM350-10Bxx Enclosed Type power supply
