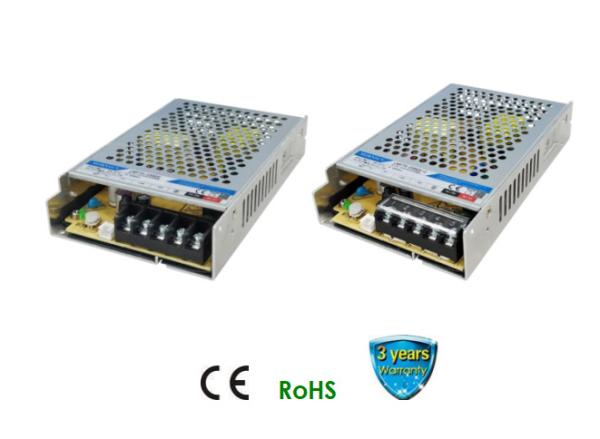

75W 24V Industrial AC DC Enclosed Power Supply 305VAC Input PFC
75W 24V Industrial AC DC Enclosed Power Supply 305VAC Input PFC
Specifications
Brand Name :
MORNSUN
Model Number :
LMF75-23Bxx
Certification :
CE
Place of Origin :
China
MOQ :
No
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
75W ac dc power supply PFC function 305Vac input
Input voltage :
85 - 305V AC
Output voltage :
5/12V/15V/24V/48
MTBF(MIL-HDBK-217F@25℃) :
>300,000 h
Efficiency :
≥85%
Leakage Current :
2mA(277VAC/60Hz)
Dimension :
159.00 x 97.00 x 30.00mm
Warranty :
3 years
Description

75W ac dc power supply PFC function 305Vac input

Descriptions

LMF75-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,built-inactive PFC function,high efficiency and high reliability.

These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC62368,UL62368,EN62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Features

  • Universal 85 - 305V AC or 120 - 430VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range -30℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • High efficiency, high reliability
  • Output short circuit, over-current, over-voltage, over-temperature protection(Built-in constant current limiting circuit)
  • Remote ON-OFF control
  • Designed to meet IEC/EN/UL62368, EN60335, GB4943
  • EN62368 safety approval
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Emissions meets CISPR32/EN55032 CLASS B

Specifications

Selection Guide

Certification

Part No.*

 Output Power(W)

Nominal Output Voltage and Current

(Vo/Io)

Output Voltage Adjustable Range

ADJ(V)

 Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

CE

 LMF75-23B05 75 5V/15A 4.75-5.5 81 10000
LMF75-23B12 75.6 12V/6.3A 11.4-13.2 84 6000
LMF75-23B15 75 15V/5A 14.3-16.5 85 5000
LMF75-23B24 76.8 24V/3.2A 22.8-26.4 86 1500
LMF75-23B48 76.8 48V/1.6A 45.6-52.8 88 680
Note:*Use suffix“C”for terminal with protective cover and suffix“Q”for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 305 VAC
DC input 120 -- 430 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 115VAC -- -- 1.0

A
230VAC -- -- 0.6

Inrush Current

 115VAC

Cold start

 -- 20 --
230VAC -- 35 --
Power Factor 115VAC At full load 0.98 -- -- --
230VAC 0.93 -- --
Leakage Current 277VAC/60Hz 2mA
Hot Plug Unavailable
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 159.00 x 97.00 x 30.00mm
Weight 380g (Typ.)
Cooling Method Free air convection

Dimensions and Recommended Layout
