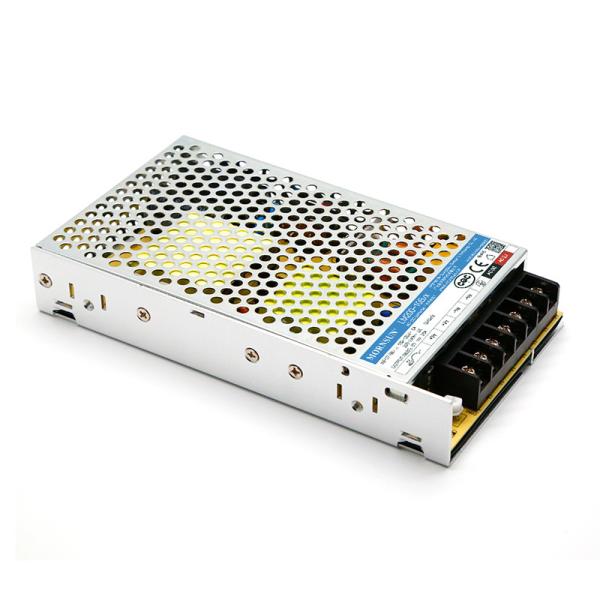

200W AC And DC CCTV Camera Power Supply 90VAC Enclosed Type CE
200W AC And DC CCTV Camera Power Supply 90VAC Enclosed Type CE
200W AC And DC CCTV Camera Power Supply 90VAC Enclosed Type CE
200W AC And DC CCTV Camera Power Supply 90VAC Enclosed Type CE
200W AC And DC CCTV Camera Power Supply 90VAC Enclosed Type CE
200W AC And DC CCTV Camera Power Supply 90VAC Enclosed Type CE
Specifications
Brand Name :
MORNSUN
Model Number :
LM200-20Bxx
Certification :
UL/CB/CE/CCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
200W AC DC security Power Supply
Selectable Input voltage :
90 - 132VAC/180 - 264VAC
Output voltage :
5V/12V/15V/24V/36V/48
Input Voltage frequency :
47-63HZ
Efficiency :
≥86%
Output type :
Single
Dimension :
179.00 x 99.00 x 30.00 mm
Weight :
520g (Typ.)
Description

200W Enclosed Ac Dc security Power Supply

Descriptions

LM200-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features selectable AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency and high reliability.

These power supply offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,UL/EN/IEC62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Features

  • Selectable AC input range: 90 - 132VAC/180 - 264VAC
  • DC input range: 240 - 370VDC(Switch in position of 230)
  • Ultra low standby power consumption < 0.75W @230VAC
  • Operating ambient temperature range: - 30℃ to +70℃
  • High efficiency, high reliability
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • UL/EN/IEC62368, EN60335, EN61558, GB4943 safety
  • Operating altitude up to 5000m

Specifications

Selection Guide

Certification

Part No.*

 Output Power (W)

Nominal Output

Voltage and Current (Vo/Io)

Output Voltage

Adjustable Range (V)

 Efficiency at 230VAC (%) Typ.

Max.

Capacitive Load (µF)
Steady state transient*

UL/CE/CB/CQC

 LM200-10B05 150 200 5V/30A 4.5 - 5.5 87 10000
LM200-10B12 204 -- 12V/17A 10.2 -13.8 87.5 4000
LM200-10B15 210 -- 15V/14A 13.5 -18 88 3300
LM200-10B24 211.2 -- 24V/8.8A 21.6 - 28.8 88.5 1500
LM200-10B36 212.4 -- 36V/5.9A 32.4 - 39.6 89 1500
LM200-10B48 211.2 -- 48V/4.4A 43.2 - 52.8 89.5 470
Note: 1.*Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating; 2.*Hold-up time1min (Typ.).
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range (by switch)

AC input

 Low voltage (Switch in position of 115) 90 -- 132

VAC
High voltage (Switch in position of 230) 180 -- 264
DC input Switch in position of 230 240 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 5

A
230VAC -- -- 3

Inrush Current

 115VAC

Cold start

 -- 60 80
230VAC -- 60 80
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range 5V -- ±3 -- %
12V -- ±1.5 --
15V/24V/36V/48V -- ±1 --
Line Regulation Rated load -- ±0.5 --

%

Load Regulation

0% - 100% load

 5V -- ±2 --
12V -- ±1 --
15V/24V/36V/48V -- ±0.5 --
Output Ripple & Noise* 20MHz bandwidth (peak-to-peak value) 5V/12V/15V/24V -- 150 -- mV
36V/48V -- 200 --
Temperature Coefficient -- -- ±0.03 %/℃
Minimum Load 0 -- -- %
Stand-by Power Consumption 230VAC, 25℃ -- -- 0.75 W
Hold-up Time 115VAC 12 -- -- ms
230VAC 16 -- --
Short Circuit Protection Recovery time <5s after the short circuit disappear. Hiccup, continuous, self-recover
Over-current Protection 110% - 185% Io, self-recover

Over-voltage Protection

 5V ≤8VDC (Output voltage turn off, re-power on for recover)
12V ≤18VDC (Output voltage turn off, re-power on for recover)
15V ≤22VDC (Output voltage turn off, re-power on for recover)
24V ≤33.6VDC (Output voltage turn off, re-power on for recover)
36V ≤46.8VDC (Output voltage turn off, re-power on for recover)
48V ≤60VDC (Output voltage turn off, re-power on for recover)
Over-temperature Protection Output voltage turn off, re-power on for recover

Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to

Enclosed Switching Power Supply Application Notes for specific information.
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 179.00 x 99.00 x 30.00 mm
Weight 520g (Typ.)
Cooling Method Free air convection

Dimensions and Recommended Layout
