Specifications
Brand Name :
MORNSUN
Model Number :
LM50-20Bxx
Certification :
UL/CB/CE/CCC
Place of Origin :
China
MOQ :
No
Price :
Negotiated
Payment Terms :
Western Union, T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :

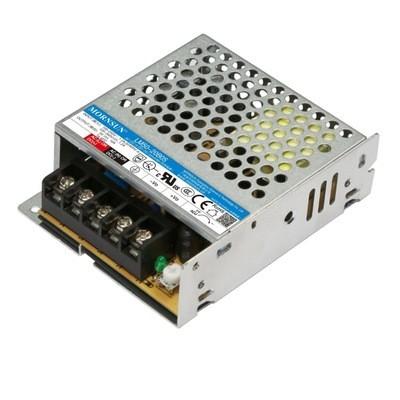

50W Ac Dc Enclosed Type Power Supply
Input voltage :
85 - 264VAC
Output voltage :
5V/12V/15V/24V/36V/48
Output frequency :
47-63HZ
Efficiency :
≥83%
Weight :
180g (Typ.)
Dimension :
99.00 x 82.00 x 30.00 mm
Warranty :
3 years
Description

50W Ac Dc Enclosed Type Power Supply security power supply

Descriptions

LM50-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications, smart home etc.

Features

  • l Universal 85 - 264VAC or 120 - 370VDC input voltage
  • l Accepts AC or DC input (dual-use of same terminal)
  • l Operating ambient temperature range: -30℃ to +70℃
  • l Low standby power consumption, high efficiency
  • l High I/O isolation test voltage up to 4000VAC
  • l Low ripple & noise
  • l Output short circuit, over-current, over-voltage protection
  • l IEC/EN/UL62368, IEC/EN60335, GB4943, IEC/EN61558safety approved
  • l Over-voltage class Ⅲ (designed to meet EN61558)
  • l Operating altitude up to 5000m

Specifications

Selection Guide
Certification Part No.* Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

UL/CE/CB/CCC

LM50-20B05 50 5V/10A 4.5-5.5 86 8500
LM50-20B12 50.4 12V/4.2A 10.2-13.8 87 2000
LM50-20B15 51 15V/3.4A 13.5-18 88 1500
LM50-20B24 52.8 24V/2.2A 21.6-28.8 89 1000
LM50-20B36 52.2 36V/1.45A 32.4-39.6 89 800
LM50-20B48 52.8 48V/1.1A 43.2-52.8 90 680
Note: *Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 115VAC -- -- 1.2

A

230VAC -- -- 0.8
Inrush Current 115VAC Cold start -- 30 --
230VAC -- 50 --
leakage Current 240VAC 0.75mA
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range 5V -- ±2 --

%

12V/15V/24V/36V/48V -- ±1 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load 5V -- ±1 --
12V/15V/24V/36V/48V -- ±0.5 --
Ripple & Noise* 20MHz bandwidth 5V -- 80 -- mV
Mechanical Specifications
Case Material Metal (AL1100, SGCC)
Dimensions 99.00 x 82.00 x 30.00 mm
Weight 180g (Typ.)
Cooling Method Free air convection

Dimensions and Recommended Layout
