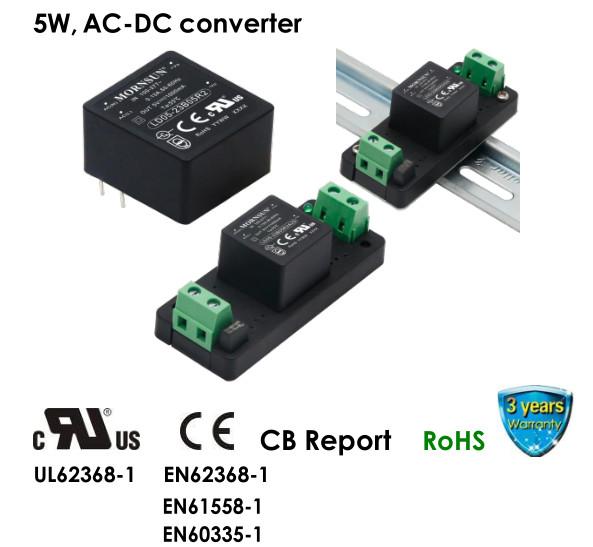

5W AC DC Converter Dual Output 3.3VDC 5VDC 1 × 1 Inch Compact Size
5W AC DC Converter Dual Output 3.3VDC 5VDC 1 × 1 Inch Compact Size
Specifications
Brand Name :
MORNSUN
Model Number :
LD05-23BxxR2 Series
Certification :
CE/UL/CB
Place of Origin :
China
MOQ :
100PCS
Payment Terms :
T/T
Packaging Details :
Carton packed
Input voltage :
3.3VDC,5VDC,12VDC,15VDC,24VDC
High efficiency :
81.5%
No-load power consumption :
0.1W
Weight :
18.0g (Typ.)
Dimensions :
25.40 x 25.40 x 17.60 mm
Case Material :
Plastic case meets UL94V-0 flammability
Description

1W isolated DC-DC converter Fixed input voltage, regulated dual output

Description

LD05-23BxxR2 series AC-DC converters is one of Mornsun’s compact size power converter.It features ultra-wide AC input and at the same Time accepts DC input voltage,low power consumption,high efficiency,high reliability,reinforced isolation.It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558 standards.The converters are widely used in industrial,power,home appliances,instrumentation,communication and civil applications.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.

FEATURES

  • Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range

  • 1 × 1 inch compact size

  • Operating ambient temperature range: -40℃ to +85℃

  • Up to 81.5% efficiency

  • No-load power consumption 0.1W

  • 5000m altitude application

  • Plastic case meets UL94V-0 flammability

  • EMI performance meets CISPR32/EN55032 CLASS B,EN55014

Specifications

Selection Guide
Certification Part No.* Output Power Nominal Output Voltage and Current Efficiency at 230VAC (%) Typ. Capacitive Load (uF) Max.

UL/EN/IEC

 LD05-23B03R2

5W

 3.3V/1515mA 71.5 4000
LD05-23B05R2 5V/1000mA 77.5 3000
LD05-23B09R2 9V/555mA 80.5 1200
LD05-23B12R2 12V/416mA 80.5 1200
LD05-23B15R2 15V/333mA 81.5 680
LD05-23B24R2 24V/208mA 81.5 220
Note: * Use suffix ”A2S” for chassis and suffix ”A4S” for DIN-Rail mounting.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 85 -- 305 VAC
DC input 100 -- 430 VDC
Input Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 0.13

A
230VAC -- -- 0.07

Inrush Current

 115VAC -- 15 --
230VAC -- 25 --
Leakage Current 277VAC/50Hz 0.25mA RMS Max.

Recommended External Input Fuse

1A, slow-blow, required

(The actual use needs to be selected according to the application enviroment)
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit

Output Voltage Accuracy

 3.3V output -- ±3 --

%
others -- ±2 --
Line Regulation Full load -- ±0.5 --
Load Regulation 0%-100% load -- ±1 --
Ripple & Noise* 20MHz bandwidth (peak-to-peak value) -- 50 100 mV
Stand-by Power Consumption 230VAC -- 0.10 -- W
Temperature Coefficient -- ±0.02 -- %/°C
Short Circuit Protection Hiccup, continuous, self-recovery
Over-current Protection ≥130%Io, self-recovery

Over-voltage Protection

 3.3/5VDC output ≤7.5VDC
9VDC output ≤15VDC
12VDC output ≤16VDC
15VDC output ≤20VDC
24VDC output ≤30VDC
Minimum Load 0 -- -- %

Hold-up Time

 115VAC input -- 5 --

ms
230VAC input -- 50 --
Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 10uF electrolytic capacitor and 1uF ceramic capacitor, please refer to AC-DC Converter Application Notes for specific information.
Mechanical Specifications
Case Material Black plastic, flame-retardant and heat-resistant (UL94V-0)

Dimension

 Horizontal package 25.40 x 25.40 x 17.60 mm
A2S mounting 76.00 x 31.50 x 26.40 mm
A4S mounting 76.00 x 31.50 x 31.00 mm

Weight

 Horizontal package 18.0g (Typ.)
A2S mounting 38.0g (Typ.)
A4S mounting 58.0g (Typ.)
Cooling method Free air convection
