120W 15V AC DC Din Rail Power Supply 15V Industrial DC DC Converter EMC
120W 15V AC DC Din Rail Power Supply 15V Industrial DC DC Converter EMC
Specifications
Brand Name :
MORNSUN
Model Number :
LI120-20BxxR2
Certification :
UL/CE/CB
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product name :
100W Ac DC Din Rail Power Supply
Input voltage :
85-264VAC
Output voltage :
12/15V/24V/48V
Output frequency :
47-63HZ
MTBF :
>300,000 h
MateriaL :
Metal (AL1050, SGCC) and Plastic (PC940)
Dimensions :
35.00 x 125.00 x 112.70mm
Weight :
500g (Typ.)
Description

120W AC DC Din Rail Power Supply Industrial Control Power Supply

Descriptions
LI120-20BxxR2 is Mornsun AC-DC converter series featuring a cost-effective,energy efficient green power supply solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise for industrial control equipment,machinery,and other industrial equipment in a variety of harsh environments.These light weight AC-DC converters have an extremely compact design and the standard rail (35mm)installation for space saving.With good EMC performance,compliant with international IEC/EN/UL62368,EN60335,GB4943 standards for EMC and safety.

Features

Universal 90 - 264VAC or 127 - 370VDC Input voltage

Accepts AC or DC input (dual-use of same terminal)

Operating ambient temperature range: -20℃ to +60℃

The efficiency is up to 89%

High I/O isolation test voltage up to 4000VAC

Low ripple & noise

Output short circuit, over-current, over-voltage, over-temperature protection

DIN rail TS-35/7.5 or 15 mountable

Ultra slim design with 35mm width: suitable for small chassis and narrow space installation

EN62368 safety approved, safety according to IEC/EN/UL62368, EN60335, GB4943

Specifications

Selection Guide
Certification Part No. Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

CE

 LI120-20B12R2

120

 12V/10A 12-14 85 3000
LI120-20B24R2 24V/5A 24-28 88 1200
LI120-20B48R2 48V/2.5A 48-55 89 800
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 90 -- 264 VAC
DC input 127 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 2.7

A
230VAC -- -- 1.6

Inrush Current

 115VAC

Cold start

 -- 20 --
230VAC -- 40 --
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit

Output Voltage Accuracy

Full load range

 12V -- ±2.0 --

%
24V/48V -- ±1.0 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load -- ±1.0 --
Ripple & Noise* 20MHz bandwidth 12V -- -- 100 mV
Mechanical Specifications
Case Material Metal (AL1050, SGCC) and Plastic (PC940)
Dimensions 35.00 x 125.00 x 112.70mm
Weight 500g (Typ.)
Cooling Method Free air convection

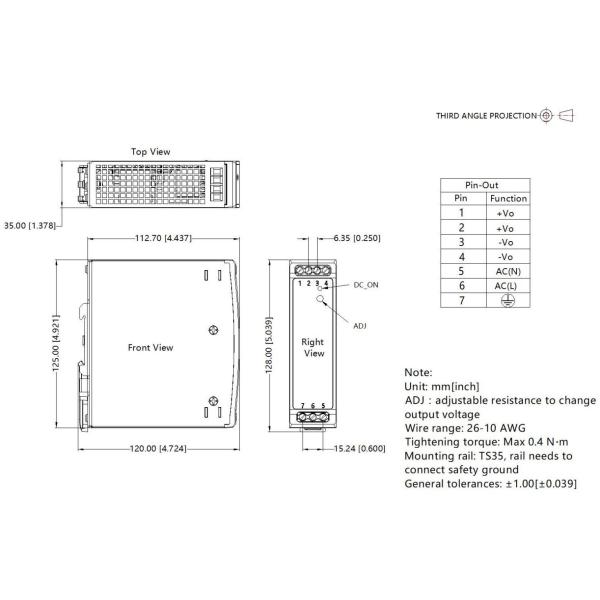

Dimensions and Recommended Layout
