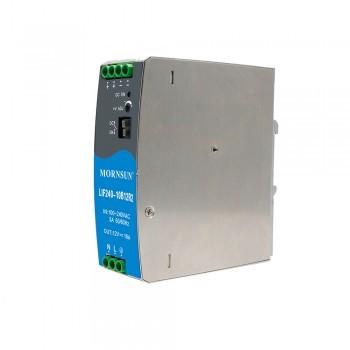

24V 240W Energy Efficient Power Supply UL62368 EMC AC DC Din Rail
24V 240W Energy Efficient Power Supply UL62368 EMC AC DC Din Rail
Specifications
Brand Name :
MORNSUN
Model Number :
LIF240-10BxxR2 Series
Certification :
UL (Pending)
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product name :
240W Ac DC Din Rail Power Supply
Input voltage :
90 - 264VAC
Output voltage :
12V/24V/48V
Output frequency :
47-63HZ
MTBF :
>300,000 h
MateriaL :
Metal (AL1100, SPCC) and Plastic (PC940)
Dimensions :
124.00 x 41.00 x 110.00mm
Weight :
650 (Typ.)
Description

240W AC DC Din Rail Power Supply Industrial Control Power Supply

Descriptions


LIF240-10BxxR2 is Mornsun AC-DC converter series featuring a cost-effective,energy efficient green power supply solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise for industrial control equipment,machinery,and other industrial equipment in a variety of harsh environments.These light weight AC-DC converters have an extremely compact design and the standard rail installation for space saving.With good EMC performance,compliant with international IEC/EN/UL62368,UL61010 standards for EMC and safety.


Features

Universal 85 - 264VAC or 120 - 370VDC Input voltage

Accepts AC or DC input (dual-use of same terminal)

Operating ambient temperature range: -40℃ to +70℃

High efficiency, high reliability

DC OK function

Built-in active PFC function

150% peak load output for 3 seconds

LED indicator for power on

Output short circuit, over-current, over-voltage, over-temperature protection

Safety according to IEC/EN/UL62368, UL61010, UL508


Specifications

Selection Guide
Certification Part No. Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)

UL

(Pending)

 LIF240-10B12R2 192 12V/16A 12.0-14.0 92 160,000
LIF240-10B24R2

240

 24V/10A 24.0-28.0

94

 40,000
LIF240-10B48R2 48V/5A 48.0-53.0 10,000
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Voltage Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 3

A
230VAC -- -- 1.5

Inrush Current

 115VAC

Cold start

 -- 15 --
230VAC -- 30 --

Power Factor

 115VAC -- 0.98 --

--
230VAC -- 0.94 --
Leakage Current 264VAC ＜0.5 mA
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit

Output Voltage Accuracy

Full load range

 12V -- ±2.0 --

%
24V/48V -- ±1.0 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load -- ±1.0 --
Ripple & Noise* 20MHz bandwidth 12V -- 50 100 mV
Mechanical Specifications
Case Material Metal (AL1100, SPCC) and Plastic (PC940)
Dimensions 124.00 x 41.00 x 110.00mm
Weight 650 (Typ.)
Cooling Method Free air convection


Dimensions and Recommended Layout

24V 240W Energy Efficient Power Supply UL62368 EMC AC DC Din Rail
