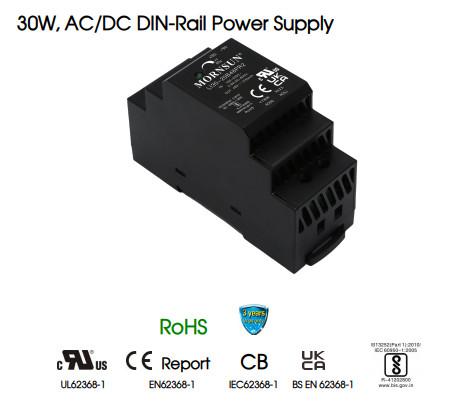

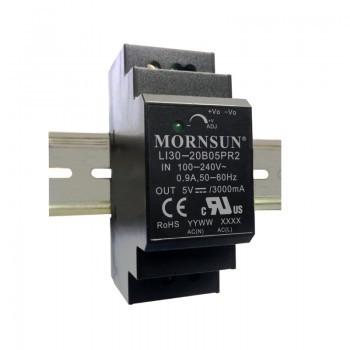

30W Din Rail AC DC Voltage Converters Power Supply Universal Input Black Single Output
30W Din Rail AC DC Voltage Converters Power Supply Universal Input Black Single Output
30W Din Rail AC DC Voltage Converters Power Supply Universal Input Black Single Output
30W Din Rail AC DC Voltage Converters Power Supply Universal Input Black Single Output
Specifications
Brand Name :
MORNSUN
Model Number :
LI30-20BxxPR2
Certification :
UL/CE/CB
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Payment Terms :
Western Union, T/T
Product name :
30W Ac DC Din Rail Power Supply
Input voltage :
85~264Vac
Output voltage :
15V/24V/30V/36V/48V
Output frequency :
47-63HZ
Output type :
Single
Color :
Black
MateriaL :
Plastic
Dimensions :
92.66 x 35.00 x 58.00 mm
Description

30W AC DC Din Rail Power Supply Industrial Control Power Supply

Descriptions

LI30-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective,energy efficient solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise,compliant with international IEC62368 standards for EMC and safety sepecifitions meet IEC/EN61000-4,CISPR32,EN55032,UL62368,IEC62368 and EN62368.These light weight AC-DCconverters also have an extremely compact design for space saving

Applications

Widely used in industrial control equipment machinery and all kinds of applications in a harsh environment.

Features

  • Universal 85-264VAC or 120-370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range -40℃ to +70℃
  • High I/O isolation test voltage up to 4000VAC
  • Industrial product technology design
  • Over-voltage class III (Designed to meet EN61558-1 safety standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Withstand 300VAC surge input for 5s
  • DIN rail TS35X7.5/ TS35X15 mountable

Specifications

Selection Guide
Certification Part No. Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range(V)* Efficiency at 230VAC (%) Typ. Capacitive Load (µF) Max.

UL/EN/IEC

 LI30-20B05PR2 15 5V/3A 4.9-5.5 82 12000
LI30-20B12PR2 24 12V/2A 10.8-13.8 88 6000
LI30-20B15PR2 30 15V/2A 13.5-18.0 89 5000
LI30-20B24PR2 36 24V/1.5A 21.6-29.0 88 1400
LI30-20B48PR2 36 48V/0.75A 43.2-55.2 90 600
Note: * The actual adjustment range may extend outside the values stated, care should be exercised to ensure that the output voltage and power levels remain within the published maximum values.

Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 0.9

A
230VAC -- -- 0.5

Inrush Current

 115VAC -- 25 --
230VAC -- 45 --
Leakage Current 264VAC 0.25mA RMS max.
Hot Plug Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy 0% - 100% load -- ±2 --

%
Line Regulation Rated load -- ±0.5 --
Load Regulation 230VAC -- ±1.5 --

Output Ripple & Noise*

20MHz bandwidth (peak-to-peak value)

 5V Output -- -- 80

mV
12V Output -- -- 120
15V Output -- -- 120
24V Output -- -- 150
48V Output -- -- 240
Temperature Coefficient -- ±0.02 -- %/°C
Short Circuit Protection Hiccup, continuous, self-recovery
Over-current Protection ≥120 % Io, self-recovery

Over-voltage Protection

 5V Output ≤7.5V (Output voltage clamp or hiccup)
12V Output ≤16V (Output voltage clamp or hiccup)
15V Output ≤20V (Output voltage clamp or hiccup)
24V Output ≤36V (Output voltage clamp or hiccup)
48V Output ≤60V (Output voltage clamp or hiccup)
Minimum Load 0 -- -- %
Start-up Time -- -- 3 s

Hold-up Time

 115VAC -- 12 -- ms
230VAC -- 60 --
Note: * The “parallel cable” method is used for ripple and noise test, please refer to AC-DC Converter Application Notes for specific information.
General Specifications
Item Operating Conditions Min. Typ. Max. Unit
Isolation Test Input - Output Electric Strength Test for 1min., (leakage current＜5mA) 4000 -- -- VAC
Operating Temperature -40 -- +70

℃
Storage Temperature -40 -- +85
Storage Humidity -- -- 95 %RH
Operating Altitude -- -- 2000 m
Switching Frequency -- 65 -- kHz

Power Derating

-40℃ to -30℃

 5V/48V Output 3.0 -- --

%/℃
12V/15V Output 7.0 -- --
24V Output 5.0 -- --
+50℃ to +70℃ 2.5 -- --
85VAC - 100VAC 1.0 -- -- %/VAC

Safety Standard

UL62368-1/IEC62368-1 Safety Approval EN62368-1 (Report)

Design refer to EN61558-1
Safety Class CLASS I I
MTBF MIL-HDBK-217F@25°C > 300,000 h
Mechanical Specifications
Case Material Plastic, heat-resistant (UL94V-0)
Package Dimensions 92.66 x 35.00 x 58.00 mm
Weight 115g (Typ.)
Cooling method Free air convection

Dimensions and Recommended Layout

30W Din Rail AC DC Voltage Converters Power Supply Universal Input Black Single Output
