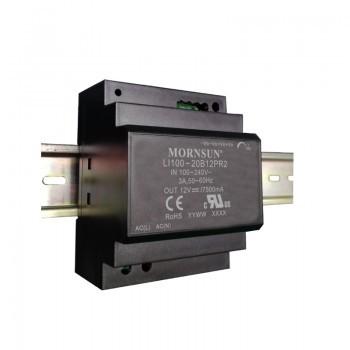

15V 48V 100W AC DC Din Rail Power Supply EN62368 Heat Resistant MateriaL
15V 48V 100W AC DC Din Rail Power Supply EN62368 Heat Resistant MateriaL
Specifications
Brand Name :
MORNSUN
Model Number :
LI100-20BxxPR2
Certification :
UL/CE/CB
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
Western Union, T/T
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product name :
100W Ac DC Din Rail Power Supply
Input voltage :
85-264VAC
Output voltage :
12/15V/24V/48V
Output frequency :
47-63HZ
Isolation Test :
4000Vac
MateriaL :
Plastic, heat-resistant (UL94V-0)
Dimensions :
70.00 x 92.66 x 58.00 mm
Weight :
235g (Typ.)
Description

100W AC DC Din Rail Power Supply Industrial Control Power Supply

Descriptions

LI100-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective,energy efficient solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise,compliant with international IEC62368 standards for EMC and safety sepecifitions meet IEC/EN61000-4,CISPR32,EN55032,UL62368,IEC62368 and EN62368.These light weight AC-DCconverters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

Features

  • Universal 85-264VAC or 120-370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • High I/O isolation test voltage up to 4000VAC (Input - output)
  • Industrial product technology design
  • Over-voltage class III (Designed to meet EN61558-1 standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Withstand 300VAC surge input for 5s
  • DIN rail TS35X7.5/ TS35X15 mountable

Specifications

Selection Guide
CertificationPart No.Output Power (W)Nominal Output Voltage and Current (Vo/Io)Output Voltage Adjustable Range(V)*Efficiency at 230VAC (%) Typ.Capacitive Load (µF)Max.


UL/EN/IEC

LI100-20B12PR29012V/7.5A12.0 - 13.88810000
LI100-20B15PR297.515V/6.5A13.5 - 18.0896400
LI100-20B24PR2100.824V/4.2A21.6 - 29.0902500
LI100-20B48PR2100.848V/2.1A43.2 - 55.2901100
Note: * The actual adjustment range may extend outside the values stated, care should be exercised to ensure that the output voltage and power levels remain within the published maximum values.
Input Specifications
ItemOperating ConditionsMin.Typ.Max.Unit
Input Voltage RangeAC input85--264VAC
DC input120--370VDC
Input Frequency 47--63Hz

Input Current

115VAC----3


A

230VAC----1.6

Inrush Current

115VAC--35--
230VAC--70--
Leakage Current240VAC/50Hz0.5mA RMS Max.
Hot Plug Unavailable
Output Specifications
ItemOperating ConditionsMin.Typ.Max.Unit
Output Voltage Accuracy0% - 100% load--±2--

%

Line RegulationRated load--±0.5--
Load Regulation230VAC--±1.5--


Output Ripple & Noise*

20MHz bandwidth (peak-to-peak value)

12V Output----120


mV

15V Output----120
24V Output----150
48V Output----240
Mechanical Specifications
Case MaterialPlastic, heat-resistant (UL94V-0)
Package Dimensions70.00 x 92.66 x 58.00 mm
Weight235g (Typ.)
Cooling methodFree air convection

Dimensions and Recommended Layout

15V 48V 100W AC DC Din Rail Power Supply EN62368 Heat Resistant MateriaL
