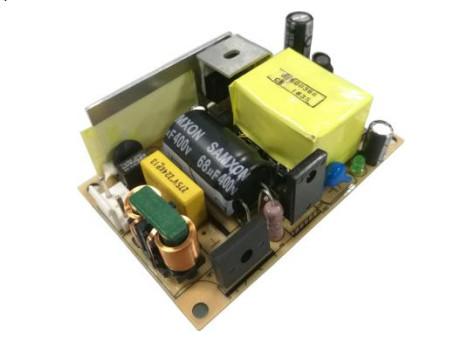

45W Medical Open Frame Power Supply 90VAC Input , High Voltage AC DC Power Supply GB4943
45W Medical Open Frame Power Supply 90VAC Input , High Voltage AC DC Power Supply GB4943
45W Medical Open Frame Power Supply 90VAC Input , High Voltage AC DC Power Supply GB4943
45W Medical Open Frame Power Supply 90VAC Input , High Voltage AC DC Power Supply GB4943
Specifications
Brand Name :
MORNSUN
Model Number :
LO45-20BxxMU(-C) Series
Certification :
CE
Place of Origin :
China
MOQ :
/
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
45W AC DC Open Frame Switching Power Supply
Input voltage :
85-264VAC
Output Voltage :
single Output
Input Frequency :
47~63HZ
Operating Temperature :
-40~70°C
Efficiency :
>82%
Dimension :
76.20 x 50.80 x 26.50 mm
Weight :
95g (Typ.)
Description

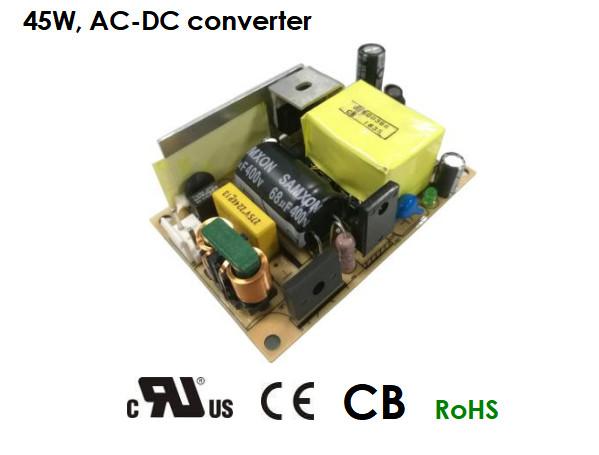

45W AC DC Open Frame Switching Power Supply single output

Descriptions

LO45-20BxxMU(-C) series features universal AC input and at the same time accepts DC input voltage,cost-effective,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC and safety performance,which meet UL/IEC/EN/ES60601,UL/EN/IEC62368,IEC/EN60335,IEC/EN61558, GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security, telecommunications,smart home,medical,etc.

Features

  • l Universal 85-264VAC or 100-370VDC input voltage
  • l High power density, compact size: 3” x 2” x 1.03” (LO45-20BxxMU)
  • l 3.6” x 2.4” x 1.3” (LO45-20BxxMU-C)
  • l Operating ambient temperature range: -40℃ to +70℃
  • l High I/O isolation test voltage up to 4000VAC
  • l Meets 5000m altitude requirements
  • l Extremely low leakage current＜75uA
  • l Stand-by power consumption＜0.3W
  • l Efficiency up to 90%
  • l Meets 2 x MOPP safety certification
  • l Suitable for BF application
  • l Over-voltage class Ⅲ (designed to meet EN61558-1)


​Specifications

Selection Guide

Certification

Part No.*

Output Power

Nominal Output Voltage

and Current (Vo / Io)

Output Voltage

Adjustable Range ADJ (V)

Efficiency at

230VAC (%) Typ.

 Capacitive Load (µF) Max.




EN

 LO45-20B03MU(-C) 26.4W 3.3V/8.00A 2.97-3.63 82 20000
LO45-20B05MU(-C) 40W 5V/8.00A 4.5-5.5 84 20000
LO45-20B12MU(-C)



45W

 12V/3.75A 10.2-13.8 86 4000
LO45-20B15MU(-C) 15V/3.00A 13.5-18 86 3500
LO45-20B24MU(-C) 24V/1.875A 21.6-28.5 90 1000
LO45-20B30MU(-C) 30V/1.50A / 89 900
LO45-20B36MU(-C) 36V/1.25A 32.4-39.6 90 820
LO45-20B48MU(-C) 48V/0.94A 43.2-52.8 90 330
Note: *Use suffix “-C” for enclosed version.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Voltage Range

 AC input 85 -- 264 VAC
DC input 100 -- 370 VDC
Input Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 1100

mA
230VAC -- -- 700

Inrush Current

 115VAC -- -- 40

A
230VAC -- -- 60
Leakage Current 240VAC 75uA Max.
Hot Plug Unavailable
Mechanical Specifications

Dimension

 LO45-20BxxMU 76.20 x 50.80 x 26.50 mm
LO45-20BxxMU-C 91.40 x 60.50 x 33.30 mm

Weight

 LO45-20BxxMU 95g (Typ.)
LO45-20BxxMU-C 150g (Typ.)
Cooling method Free air convection


Dimensions and Recommended Layout
