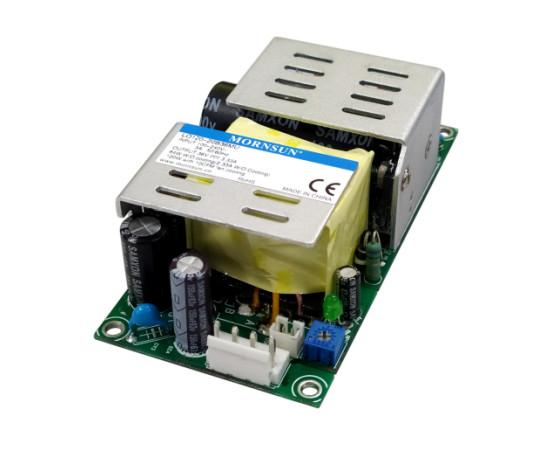

120W Medical Device AC DC Open Frame Power Supply 120 - 370VDC Single Output
120W Medical Device AC DC Open Frame Power Supply 120 - 370VDC Single Output
120W Medical Device AC DC Open Frame Power Supply 120 - 370VDC Single Output
120W Medical Device AC DC Open Frame Power Supply 120 - 370VDC Single Output
Specifications
Brand Name :
MORNSUN
Model Number :
LO120-20BxxMU Series
Certification :
CE
Place of Origin :
China
MOQ :
\
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product Name :
120W AC DC Open Frame Switching Power Supply
Input voltage :
85-264VAC
Output Voltage :
single Output
Input Frequency :
47~63HZ
MTBF :
MIL-HDBK-217F@25℃ ＞300,000 h
Efficiency :
>=82%
Dimension :
101.60 x 50.80 x 32.00 mm
Weight :
162g (Typ.)
cooling method :
Free air convection/10CFM
Description

120W AC DC Open Frame Switching Power Supply single output

Descriptions

LO120-20BxxMU series is one of Mornsun’s AC-DC miniaturize open frame power supply and suitable for all kinds of BF type (be accessible to patients)medical system equipment.It features universal AC input and at the same time accepts DC input voltage,cost-effective,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC and safety performance,which meet EN60601,UL/EN/IEC62368,IEC/EN60335,EN61558 standards and GB4943 they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home,medical,etc.

Features

  • l Universal 85-264VAC or 120-370VDC input voltage
  • l High power density, compact size: 4” × 2” × 1.26”
  • l Operating ambient temperature range: -30℃ to +70℃
  • l High I/O isolation test voltage up to 4000VAC
  • l Meets 5000m altitude requirements
  • l Extremely low leakage current＜100uA
  • l Stand-by power consumption＜0.3W
  • l Output short circuit, over-current, over-voltage, over-temperature protection
  • l Efficiency up to 91%
  • l Meets 2 x MOPP safety certification
  • l Suitable for BF application
  • l Over-voltage class Ⅲ (designed to meet EN61558-1)
  • l Installing in system of Safety Class I/II is available

​Specifications

Selection Guide

Certification

Part No.*

Cool Mode

Output Power

Nominal Output Voltage

and Current (Vo/Io)

Output Voltage

Adjustable Range ADJ (V)

Efficiency at

230VAC (%) Typ.

 Capacitive Load (µF) Max.

EN

 LO120-20B12MU Air cooling 84 12V/7A 11.4-12.6 89 6000
10CFM 120 12V/10A
LO120-20B15MU Air cooling 84 15V/5.6A 14.3-15.8 89 5000
10CFM 120 15V/8A
LO120-20B24MU Air cooling 84 24V/3.5A 22.8-25.2 90 3200
10CFM 120 24V/5A
LO120-20B27MU Air cooling 84 27V/3.11A 25.6-28.4 90 2400
10CFM 120 27V/4.44A
LO120-20B36MU Air cooling 84 36V/2.33 A 35.28-37.8 90 2000
10CFM 120 36V/3.33A
LO120-20B48MU Air cooling 84 48V/1.75A 45.6-50.4 91 1600
10CFM 120 48V/2.5A
LO120-20B54MU Air cooling 84 54V/1.56A 51.3-55.5 91 1300
10CFM 120 54V/2.22A
Notes: *Under any conditions, the total power of the product should not exceed the rated power of 120w and the output current should not exceed the rated output current;
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Frequency 47 -- 63 Hz

Input Current

 115VAC -- -- 3

A
230VAC -- -- 1.5

Inrush Current

 115VAC -- -- 30
230VAC -- -- 60
Mechanical Specifications
Dimension 101.60 x 50.80 x 32.00 mm
Weight 162g (Typ.)
Cooling method Free air convection/10CFM

Dimensions and Recommended Layout


120W Medical Device AC DC Open Frame Power Supply 120 - 370VDC Single Output
