Specifications
Brand Name :
IMAX Power
Model Number :
IMAXII-5500 -48
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
Negotiated
Packaging Details :
Negotiated
MPPT DC input voltage range :
120~450Vdc
Rated Output Power :
5500W
Nominal Output Current :
20 .5A/ 19 .6A/ 18 .8A
Maximum output Power :
5500W
Frequency Range :
50Hz/60Hz (Auto sensing)
Surge Power :
11000W
Gross Weight(KG) Voltage :
13.1kgs
Dimension (W x D x H)mm :
345x476x 133 .2
Description

48Vdc 5500W Hybrid Energy Storage Inverter IMAXII-5500 -48

IMAX - II Series

Hybrid Energy Storage Inverter

Wall Mounted Integrated Solar Power Inverter Technical Specification

Built - in MPPT Solar Controller

Product Features

Model:5.5K

Nominal Voltage:220/230/240VAC

Frequency Range:50Hz/60Hz

  • Touch screen display.
  • PV and utility power the load at the same time ( can be set ) .
  • Output power factor PF=1 .0 .
  • On&Off Grid with energy storage .
  • Energy generated record , load record , history
  • information and fault record .

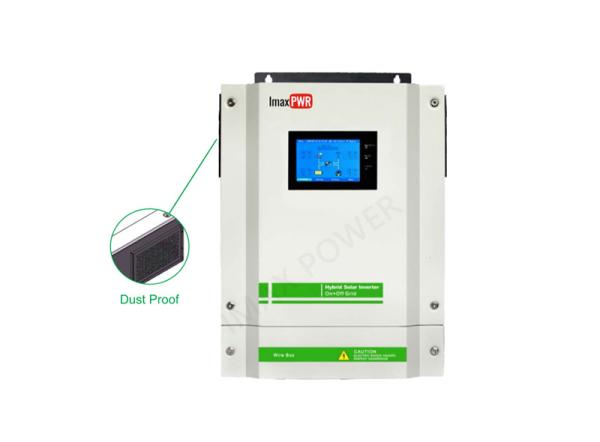

  • Structure with dust filter.
  • AC charging start and stop time setting .
  • External W i- F i device optional .
  • Parallel operation up to 9 units .
  • Connected with battery optional .
  • Wide PV input range120-450VDC .
  • Independent CPU
  • MAX PV Array power 5500W.
  • Solar and Utility supply power to the load W hen
  • solar power is not sufficient to load .
  • T he CT sensor will monitor the power consumption of
  • The system and will make sure no excess PV power is delivered to the Grid.

MODEL IMAXII-5500-48
Max PV Array Power 5500W
Rated Output Power 5500W
MPPT Range @ Operating Voltage 120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 20 .5A/ 19 .6A/ 18 .8A
Efficiency up to 93%
OFF-GRID , HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 120-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 48VDC
Maximum AC Charge Current 60A
Maximum Charge Current(AC+ PV) 90A
Emergency output power
Maximum output Power 5500W
Surge Power 11000W
Automatic Transfer Time < 10ms
GENERAL
INTERFACE
Parallel F unction Yes

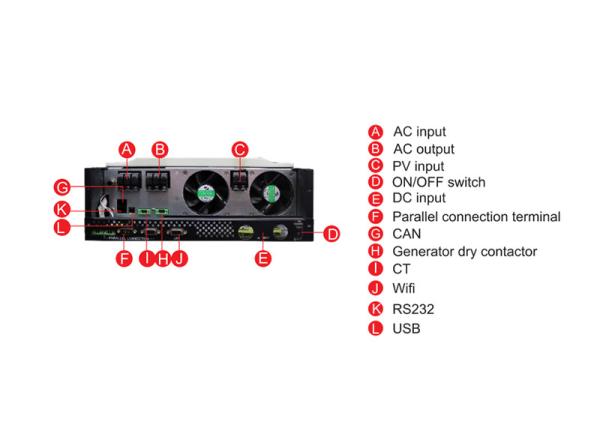

Communication USB or RS232 ,WIFI , Generator dry- Contact
ENVIRONMENT
Humidity 0~90% RH ( No Condensing)
Operating Temperature 0 to 50℃
Net Weight(KG) 11 .9
Gross Weight(KG) 13.1
Dimension (W x D x H)mm 345x476x 133 .2

5500W 20 .5A Inverter Battery Wall Mount , Wall Mounted Hybrid Solar Inverter

5500W 20 .5A Inverter Battery Wall Mount , Wall Mounted Hybrid Solar Inverter

5500W 20 .5A Inverter Battery Wall Mount , Wall Mounted Hybrid Solar Inverter5500W 20 .5A Inverter Battery Wall Mount , Wall Mounted Hybrid Solar Inverter
