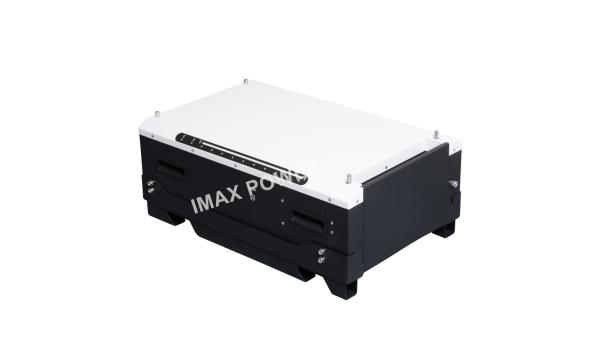

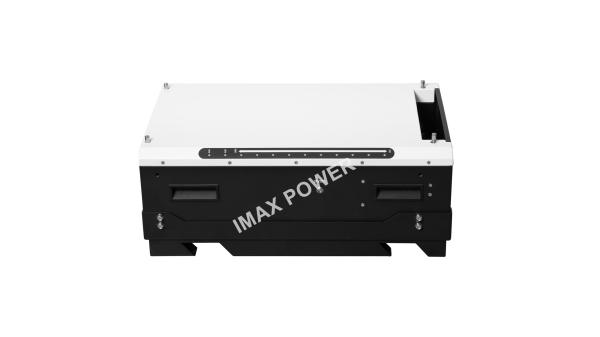

153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery
153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery
153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery
153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery
Specifications
Brand Name :
IMAX POWER
Model Number :
IM-Box-15000W/HV
Certification :
UN38.3,MSDS,UL1973(cell),IEC62619(cell)
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500PCS/Day
Delivery Time :
Negotiated
Packaging Details :
Carton packed /Wooden case packed
Capacity :
100Ah
Nominal voltage :
153.6V(48series)
Energy :
15.36kWh
Charge cut-off :
168V±0.5V
Discharge cut-off :
135V±0.5V
Dimensions :
745*415*590mm
Weight :
195kgs
Description

153.6Volt Rechargeable LiFePO4 153.6V 100Ah Li-ion Battery for home energy storage​

Features

153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery

Technical Specification—IM-Box HV series
Model IM-Box-15000W/HV
Battery type LiFePO4
Nominal voltage 153.6V(48series)
Capacity 100Ah
Energy 15.36kWh
Internal Resistance ≤80mΩ
Cycle life

≥5000cycles@80%DOD,25℃,0.5c

≥4000cycles@80%DOD,40℃,0.5c
Design life ≥10 years
Charge cut-off Voltage 168V±0.5V
Max.Continuous work current 100A
Discharge cut-off voltage 135V±0.5V
Charge Temperature 0℃~60℃(under 0℃ extra heating mechanism)
Discharge Temperature -20℃~60℃(under 0℃ extra heating mechanism)
Storage Temperature -40℃~55℃@60%±25% relative humidity
IP Grade IP21
Dimensions 745*415*590mm
Weight Approx:195kgs
Protocol(Optional) RS232-PC,RS485(B)-PC,RS485(A)-Inverter,Canbus-Inverter
Certification UN38.3,MSDS,UL1973(cell),IEC62619(cell)

Support inverter Brands

153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery

Cycle Life

153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery

Application

153.6V 48series Home Energy Storage Battery , RS232 100Ah Lithium Ion Battery

Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External housing design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Support Customized Design service.

FAQs:

Q: Are you manufacture?

A: Yes, Welcome you visit our factory.

Q: Do you accept OEM/ODM? Can you do private label for us?

A: Yes,OEM/ODM welcomed. We can support private label service.


Q:How about the real capacity of your battery?
A: All of our battery cells with Grade A,100% brand new and real capacity.

Q: Do you get certificates?
A: We can provide MSDS,UN38.3, CE,FCC,IEC62133 certificates for standard products.


Contact us for more information.

Tag:

153.6Volt Rechargeable LiFePO4 153.6V 100Ah Lithium Battery for home energy storage​

LiFePO4 Lithium Battery 100Ah 153.6Volt for household energy storage.

Residential energy storage 15.36KWh LiFePO4 lithium battery

153.6Volt 100Ah LiFePO4 lithium battery Rechargeable 15.36KWh for home energy storage

Household energy storage 153.6Volt 100Ah Rechargeable LiFePO4 lithium battery
