10W Switching Medical AC DC Power Supply Dual Output 15V EMC
10W Switching Medical AC DC Power Supply Dual Output 15V EMC
Specifications
Brand Name :
MORNSUN
Model Number :
LO10-23D0524-02E
Certification :
CE
Place of Origin :
China
MOQ :
/
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
500Kpcs/month
Delivery Time :
Negotiated
Packaging Details :
Carton packed
Product name :
AC DC open frame switching power supply
Input voltage :
85 - 305VAC
Output Voltage :
5V/9V/12V/15V/24V
Input Frequency :
47~60Hz
Output type :
Single
Dimension :
61.00 x 45.00 x 28.00 mm
Weight :
40 g (Typ.)
MIL-HDBK-217F@25℃ :
＞300,000 h
Description

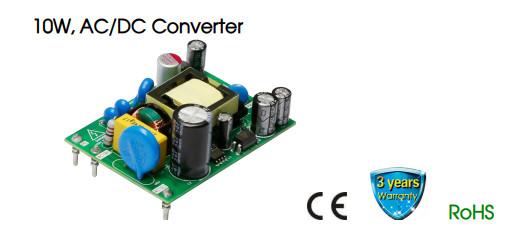

10W AC DC medical switching power supply

Descriptions

LO10-23D0524-02E is one of Mornsun’s dedicated power converter for power systems.It features universal AC input and at the same time accepts DC input voltage,high efficiency,high reliability,reinforced isolation.It offers good EMC performance compliant to UL/EN/IEC62368 standards,surge performance to meet the 4 level standards standards.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.

Features

  • Universal Input: 85 - 305VAC/100 - 430VDC

  • Regulated output, high efficiency

  • Output short circuit, over-current, over-voltage protection

  • Safety Class: CLASS I

  • Special designed for power systems​

Specificaions

Selection Guide

Certification

Part No.

Output Power

Nominal Output Voltage and CurrentEfficiency at 230VAC (%) Typ.Capacitive Load (µF) Max.
(Vo1/Io1)(Vo2/Io2)Vo1Vo2
CELO10-23D0524-02E9.8W5V/1000mA24V/200mA78800200

Input Specifications
ItemOperating ConditionsMin.Typ.Max.Unit


Input Voltage Range

AC input85--305VAC
DC input100--430VDC
Input Frequency 47--63Hz


Input Current

115VAC----0.26


A

230VAC----0.16


Inrush Current

115VAC--1015
230VAC--2025
Recommended External Input Fuse 2A/300V, slow-blow, required
Hot Plug Unavailable


Output Specifications
ItemOperating ConditionsMin.Typ.Max.Unit
Output Voltage AccuracyVo1--±2--



%

Vo2--±10--
Line RegulationFull loadVo1--±0.5--
Vo2--±1.5--
Load Regulation

10% - 100%
load

Isolated and separated twin output (balanced load)Vo1--±3--
Vo2--±5--
Ripple & Noise*20MHz bandwidth (peak-to-peak value)Vo1----100mV
Vo2----200


Temperature Coefficient

Vo1--±0.02--%/℃
Vo2--±0.15--
Stand-by Power ConsumptionRoom temperature, 230VAC----0.3W
Short Circuit Protection Continuous, self-recovery
Over-current Protection ≥110%Io self-recovery
Over-voltage Protection5VDC Output≤7.5VDC
Minimum LoadIsolated and separated twin output (balanced load)10----%
Hold-up Time115VAC input1015--ms
230VAC input7080--
Note: The "parallel cable" method is used for ripple and noise test, please refer to AC-DC Converter Application Notes for specific information.

Mechanical Specifications
Dimension61.00 x 45.00 x 28.00 mm
Weight40 g (Typ.)
Cooling Method

Free air convection


Dimensions and Recommended Layout
