Specifications
Place of Origin :
China
MOQ :
one
Packaging Details :
Wooden Package
Delivery Time :
30-40days
Payment Terms :
TT
Supply Ability :
100 per month
Model Number :
G
Connection :
V-belt,,Elastic coupling, Gear reducer, Fluid Coupling
Structure :
Horizontal single-stage pump
Material :
Cr27 Cr28 chrome alloy, A05, A07, rubber
Usage :
Transferring sludge at mine, civil works
Application :
Metal and Equipment Manufacturers, Mining industry,
Outlet Size :
1 inch - 18 inch
Description

10/8 Working Part High Chrome Cast Iron Anti-Wear Hard Metal Long Life Mining Slurry Pump

Product Description

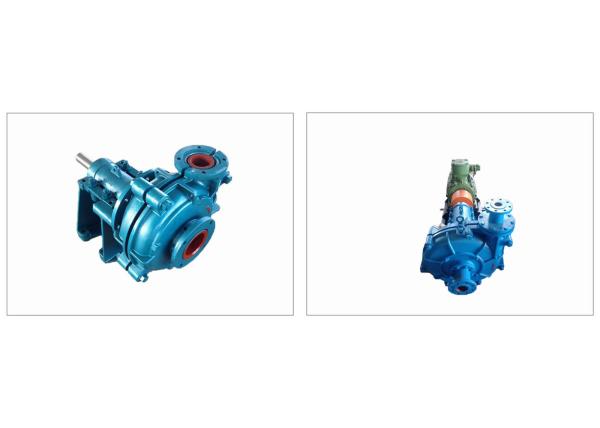

horizontal slurry pump
High chrome iron or rubber lined
Double casing design
Big solid through
Heavy duty bearing assembly

APPLICATION

Alumina,Copper mining,Iron ore,Gas oil,Coal ,Electric industry,Phosphate,Bauxite,Gold,Potash, Wolfram,Water sewerage utilities,Sugar,Tobacco,Chemical fertilizer

Features

· Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

Materials list of main spare parts

Part Name Material Specification HRC Application OEM Code
Liners & Impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. A33
Rubber R08
R26
R33
R55
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Stuffing Box Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron G01
Frame/Cover plate, bearing house & base Metal Grey iron G01
Ductile iron D21
Shaft Metal Carbon steel E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13 C21
304 SS C22
316 SS C23
