Centrifugal Large Capacity Iron Mining Pump Hard Metal Anti-Wear High Chrome Cast Iron Pump Parts

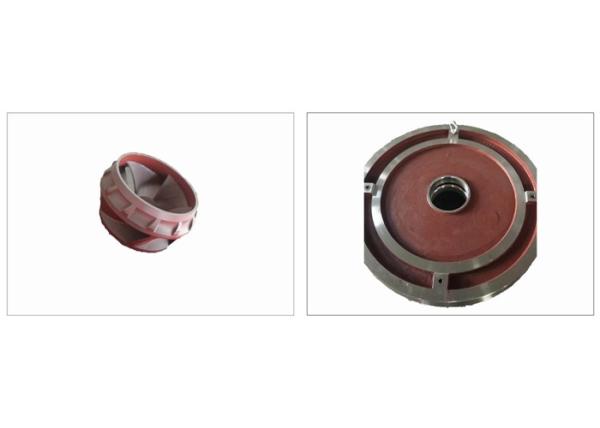

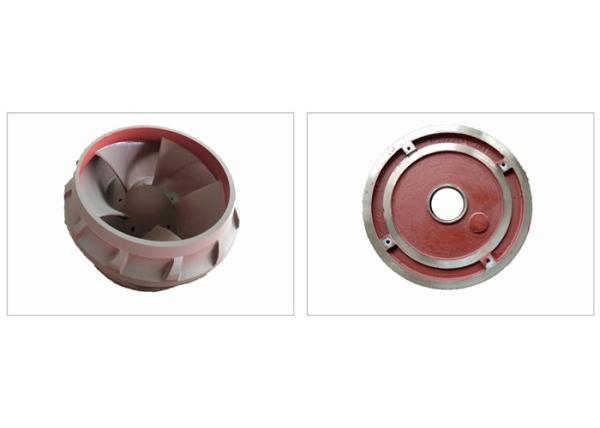

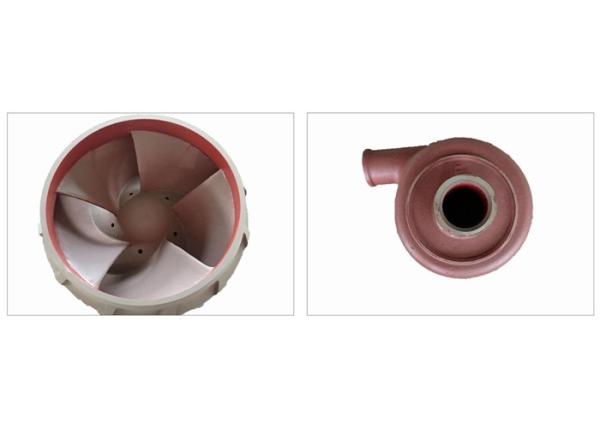

Slurry Pump Main parts:
• Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Hard metal and molded rubber impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of
maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Throat Bush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow

The Features:

1. The wet parts for slurry pump are made of wear-resistant chromium alloy.

2. Slurry pump's bearing assembly use cylindrical structure,adjusting the space between impeller andfront liner easily, they can be removed completely when being repaired. Bearing assembly use grease lubrication.

3. The shaft seal could use the packing seal, expeller seal and mechanical seal.

4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices for the slurry pump.

Application range

Concentrating/metallurgical plant: it deliveries a variety of slurries.

Sand plant: it feeds water and mineral sands to all kinds of classifying and dehydrating equipments.

Coal preparation plant: it deliveries coal pulps; it also classifies, screens and conveys materials of heavy medium.

Ceramic and glass plant: it is used to convey porcelain clay and sands, feed hydraulic cyclone, and dispose effluent.

Steel plant: it conveys slurry, rust and corrosive liquid.

Please specify it to us if the pump is applied to places where oil or chemical stuffs are present.
