Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Centrifugal Dredge Pump Parts 1 - 16 Inch Outlet Sludge Pump Parts
Specifications
Place of Origin :
China
Model Number :
G
MOQ :
one
Packaging Details :
Wooden Package
Delivery Time :
30-40days
Payment Terms :
TT
Supply Ability :
100 per month
Outlet Size :
1 inch - 16 inch
Material :
High Chromium Alloy A05 A07 A33 A49
Application :
River dredging, sand pumping, power plants, mining
Sealing :
Mechanical seal, packing seal, auxiliary impeller seal
Color :
As customized
Advantage :
Highly anti-abrasive and anti-corrosive
Transferring Medium :
sand gravel slurry
Structure :
Horizontal single-stage sand pump
Description

Centrifugal Large Capacity Anti-Abrasive High Chrome Cast Iron A05, A07 Material Dredge Pump Parts

Pump Parts

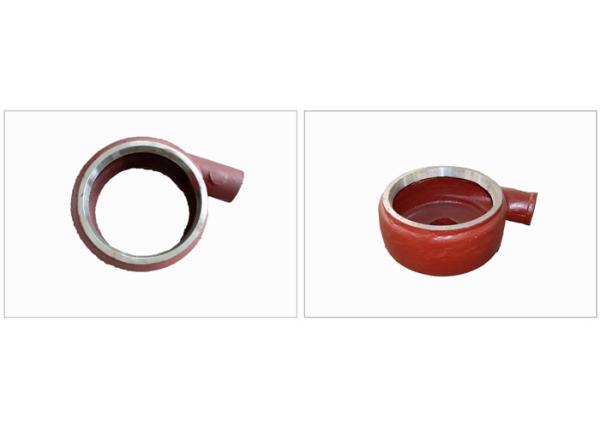

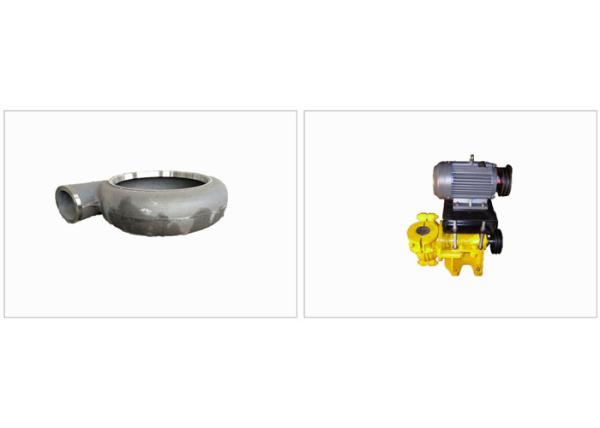

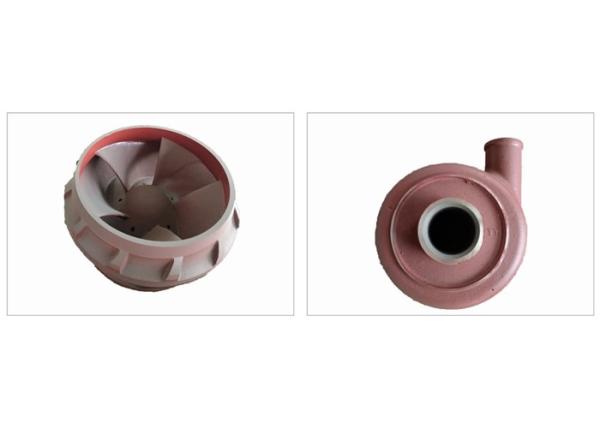

Main pump parts :Cover plate , Frame Plate, Impeller, Pump Liner , Volute Liner , Throat Bush, Frame plate Liner Insert, Back Liner , Expeller, shaft , shaft sleeve, stuffing box,base, Bearing Assembly, Shaft Spacer, base,gland assembly, lantern restrictor and so on.

Completely interchangeable with NH, L, M, HH, SP slurry pumps and G/GH gravel pumps.For unlisted slurry pump parts, OEM service offered. Drawings needed.

Some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
A H Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-A H Slurry Pump code: E4083
6/4 E-A H Slurry Pump code: E4083
8/6 E-A H Slurry Pump code: F6083
8/6 F-A H Slurry Pump code: F6083
10/8 F-A H Slurry Pump code: F8083
10/8 ST-A H Slurry Pump code: G8083
12/10 ST-A H Slurry Pump code: G10083
14/12 ST-A H Slurry Pump code: G12083

G Series Sand Gravel Pump
12/10G-G Sand Gravel Pump Throat Bush code: FG10013
14/12G-G Sand Gravel Pump Throat Bush code: GG1412013

Frame & Bearing Assembly types

Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.

Code Material # Hardness
HRC		 Performance Application
A05 KmTBCr26 ≥56 Ranks second only to A07 in abrasion-resistant performance; fair corrosion-resistant performance. High impact load abrasion condition; PH rate ranging from 5 to 12
A07 KmTBCr15Mo3 ≥59 Best abrasion-resistant performance; corrosion-resistant performance is inferior to A05 High impact load abrasion condition
A49 ≥43 Fair abrasion-resistant performance, close to A03; fair corrosion-resistant performance in media with lower PH rate. Corrosion conditions with low PH rate, especially for flue gas and FGD devices for media of PH≥4; general suitable for lower acid condition.
A61 63-68 Optimized abrasion-resistant performance than A12 High abrasive slurry with fine particles.
