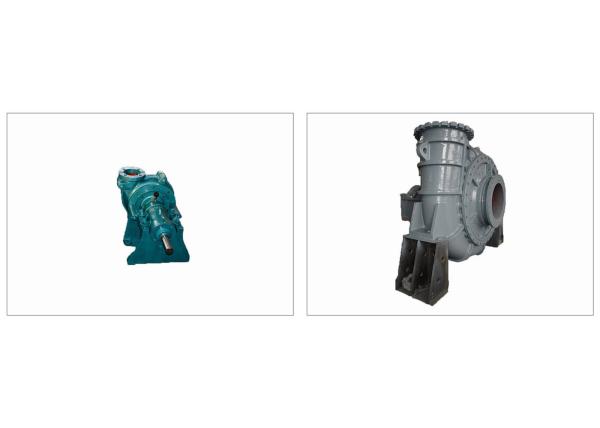

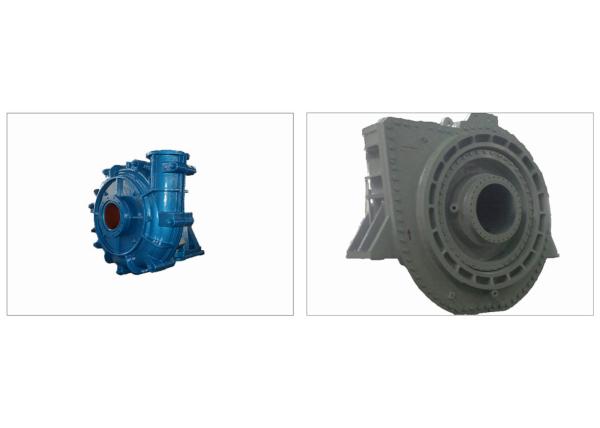

10 Inch Outlet Sand Gravel Suction And Transfer Centrifugal Horizontal Abrasive-Resistant Sand Dredge Pump

Sand Gravel Pump Introduction:

1. Sand pump (dredge pump) is designed as single casing connected by means of clamp bands and wide wet-passage.

2. The wearing parts are made of ultra chromium abrasion-resistance alloys, long service life and very low failure rate.

3.The pumps are designed for continuously transferring strong corrosive big-solid -contained slurry which the
common slurry pump cannot transfer. They are widely used in dredging,sand excavation;mining,
explosive-sludge in metal melting, etc.

4. G series gravel pump is often installed on cutter suction dredger or barge.

5. Gravel pump outlet direction can be in any position of 360· This type of pump possesses
the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.

6. The discharge direction of pump can be oriented in any direction of 360°

Material

There are 3 standard shaft seal methods: Packing seal: it is the lowest in cost. Expeller seal: it is the most commonly used. Mechanical seal: it has the best seal effect, but high in cost. also has strict requirement of flush water.

Bearing Assembly

Convenient to adjust the space between impeller and front liner and can be removed completely. Lubricated by grease; Easy maintenance.

Impeller – front and back shroud expulsion vanes reduce gland pressure and intrusion of high concentrations of solids in the gland area. Efficiency is maintained by minimizing suction side recirculation. Specially designed and shaped impeller vanes allow the handling of extraordinarily large particles. The unique casing design and sealing vanes prevent abrasive solids intrusion at the sealing faces.
Casing – The large, robust casing has been designed to reduce internal velocities resulting in minimum efficiency loss and improved casing wear life. The casing is made up of three components to reduce maintenance time and costs associated with a one piece design.

Seals
1. Expeller (Centrifugal Seal) – no external sealing water required where applicable
2. Stuffing Box – flushed gland sealing with braided packing and a lantern ring
3. Mechanical Seals

Application:
G Series sand gravel pumps are designed to handle abrasive and large particles for gravel and dredging operations.
G sand gravel pumps are designed for the continuous handling of the most difficult higher abrasive slurries,
containing solids too large to be pumped by a standard slurry pump.Such as :
Suction Hopper Dredging / Cutter suction Dredger / Constructional Material / Sand gravel processing /
Sand washing /Desanders/ Barge Loading/ Sand Reclamation / Land reclamation / Island building
