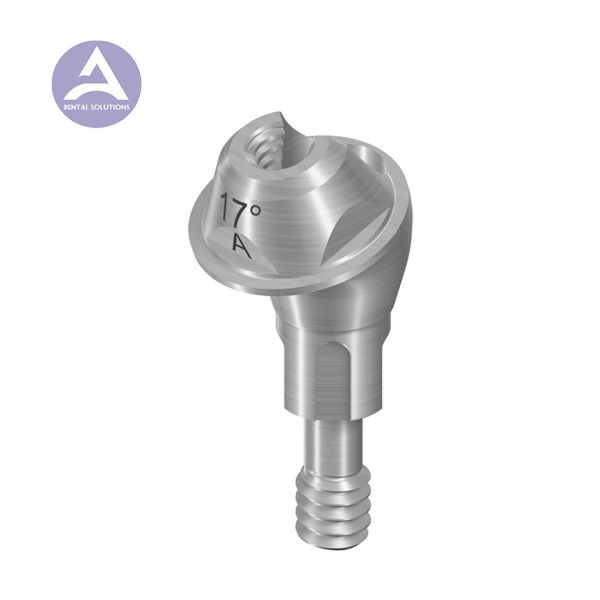

ITI Straumann Bone Level® 022.0136S NC SCREW-RET Multi unit Abutments - ANGLED 17°, Ø 4.6MM, GH 2.5MM, TYPE A,
ITI Straumann Bone Level® 022.0136S NC SCREW-RET Multi unit Abutments - ANGLED 17°, Ø 4.6MM, GH 2.5MM, TYPE A,
Specifications
Brand Name :
ANGELS
Model Number :
ITI Straumann Bone Level®
Certification :
TUV CE, ISO13485, ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
USD15-20/pc, included screw
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500,000pcs/month
Delivery Time :
3~5 days
Packaging Details :
1pcs/bag
Material :
Ti 6AI-4V ELI (Grade 5)
Warranty :
12 months
After-sale Service :
Online Technical Support
Gingival :
2.5 mm
Compatible :
NC 3.3mm
Properties :
Implant Materials & Artificial Organs
Product Tolerance :
+-0.01mm
Screwdriver :
Straumann-Torx
Diameter :
Ø 4.6 mm
Reference No. :
022.0136S
REF No. :
022.0136S
Degree :
17° Degree
Description

ITI Straumann Bone Level® 022.0136S NC SCREW-RET. ABUT., TAN - ANGLED 17°, Ø 4.6MM, GH 2.5MM, TYPE A

Desciption:

This staight abutment comes with a screw that takes a Straumann-Torx driver

Diameter: Ø 4.6 mm

Gingival Height: 2.5mm

Multi unit Abutments

Material:
Ti 6AI-4V ELI (Supply from Germany)

Reference Number:

022.0136S

Feature:

* Titanium interface abutment
* 1pc Screw Included

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom interface

Approved by CE, ISO 9001, ISO 13485

ITI Straumann Bone Level® 022.0136S NC SCREW-RET Multi unit Abutments - ANGLED 17°, Ø 4.6MM, GH 2.5MM, TYPE A,

ITI Straumann Bone Level® 022.0136S NC SCREW-RET Multi unit Abutments - ANGLED 17°, Ø 4.6MM, GH 2.5MM, TYPE A,

Product details

REF Reference

022.0136S
Gingiva Height
2.5 mm
Connection Type
NC (Narrow CrossFit®)
Diameter
Ø 4.6 mm

Specifications

Sterile
Yes
Implant Line
Bone Level Implants
Impression Level
Implant/Abutment Level
Impression Tray
Open/Closed Tray
Abutment Type
Standard Abutment
Indication
Bridge/Edentulous
Fixation
Screw-retained
Material
Titanium
Angulation
Angled
Abutment Engaging Type
Type A
Angulation (°)
17°

Points of ITI Straumann Bone level Straight Abutment:

ITI Straumann Bone Level® 022.0136S NC SCREW-RET Multi unit Abutments - ANGLED 17°, Ø 4.6MM, GH 2.5MM, TYPE A,

Fig. 7

Narrow connection (NC) Implant/abutment platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extra orally on a master model after a fixture level impression (direct, indirect).

"Cementable" abutments (Fig.7) are envisioned to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.

Cementable abutments are not cemented in to the implant as the name might suggest but screwed on to the implant like other abutments for bone level implants. Twelve different color coded "cementable" abutment versions are produced, combining two different emergence profiles (Fig.7, left) 3.5mm blue, 5.0mm yellow) and three collar heights (Fig.7, bottom row 1, 2, 3mm) with two abutment portion heights (Fig.7, right 4mm, 5.5mm). A color band etched on to the coronal portion of the abutment indicates the abutment portion height (4mm black, 5.5mm white).
