BioHorizons® Dental Implant Internal Premill Blank Abutment 10mm 3.0mm/ NP 3.5mm/ RP 4.5mm/ WP 5.7mm Custom Abutment

BioHorizons®

* 3.0mm

* NP 3.5mm

* RP 4.5mm

* WP 5.7mm

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

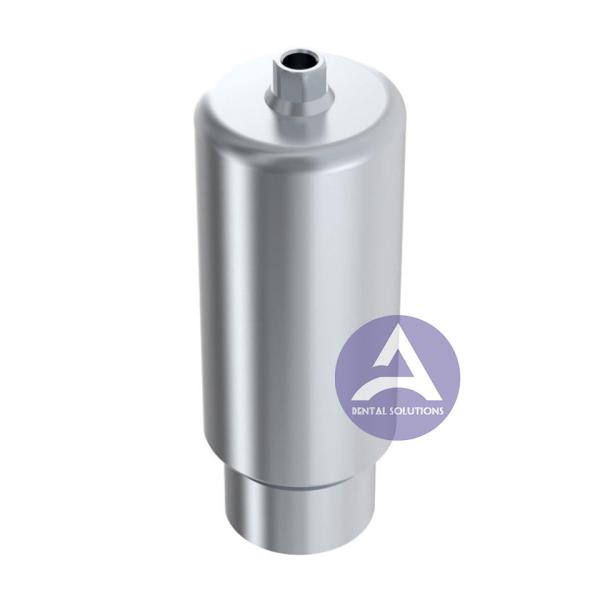

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of Biohorizons Internal Dental Implant:

Internal hex implants are machined with a parallel geometry, a square tread pattern and tapered apex out of grade 5 titanium. Available with a choice of two surface textures regardless of body diameter size. Resorbable blast textured (RBT) or a hydroxylapatite (HA) coating. Laser-Lok® micron sized channels at the implant neck are an option for RBT surface implants only. A machined collar of 0.5mm separates the platform from the textured body area.

Four implant body diameters (Fig.3) of 3.5, 4.0, 5.0, and 6.0mm are produced for this system with three possible implant/abutment interface platform diameters. 3.5mm body diameter implants have a 3.5mm platform diameter and 4.0mm body diameter implants have a 4.5mm platform diameter. 5.0mm and 6.0mm body diameter implants share the same 5.7mm platform diameter dimension. All components are color coded according to the platform diameter (3.5mm, yellow), (4.5mm, green) and (5.7mm, blue). The four body diameters are offered in four lengths (Fig.4) of 9mm, 10.5mm, 12mm and 15mm. Implants is packaged with a cover screw and already mounted on a 3 inOne abutment which serves as the implant mount for delivery, indirect (closed tray) impression coping and final abutment.
