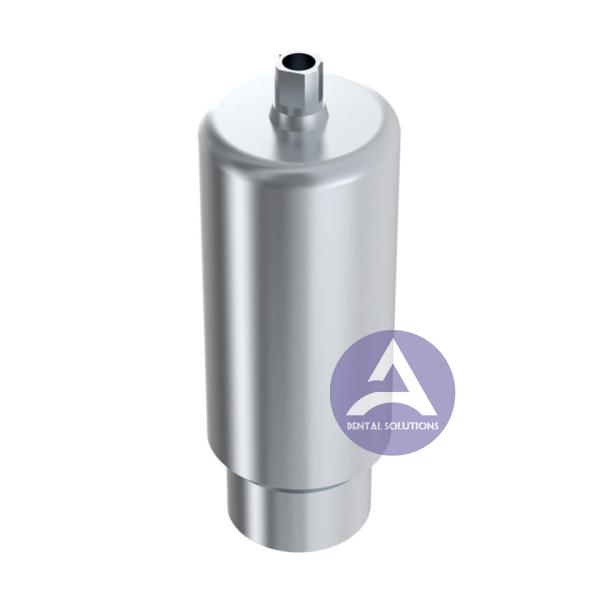

ITI Straumann Bone Level® Implant Internal Titanium Premill Blank 10mm Engaging

NC(3.3mm) / RC(4.1mm) Custom Abutment

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of ITI Straumann Bone level implant:

Bone level implants are machined out of grade four titanium and a parallel body geometry with a outside buttress thread design, available in two (3.3, 4.1mm) implant/abutment platform diameters. The 3.3mm platform is called "Narrow Connection" (NC) and the 4.1mm platform is referred to as "Regular Connection" (RC).

Narrow connection implants (Fig.6 left) are only offered with a 3.3 implant body diameter whereas the regular connection implant (Fig.7 middle and right) is available with a 4.1mm implant body diameter and a 4.8mm implant body diameter. Four lengths (8, 10, 12, 14mm) for all three body diameters are offered.

The implant/abutment connection feature differs from tissue level and tapered effect implants and is not compatible with either one. A quadrigon (square) is the signature indexing feature of bone level implants, called CrossFit™ (Fig.8).

Bone level implants do not have a machined collar and the surface roughening is carried all the way to the implant/abutment connection. Both, SLA® and SLActive® surface treatments are available for bone level implants.
