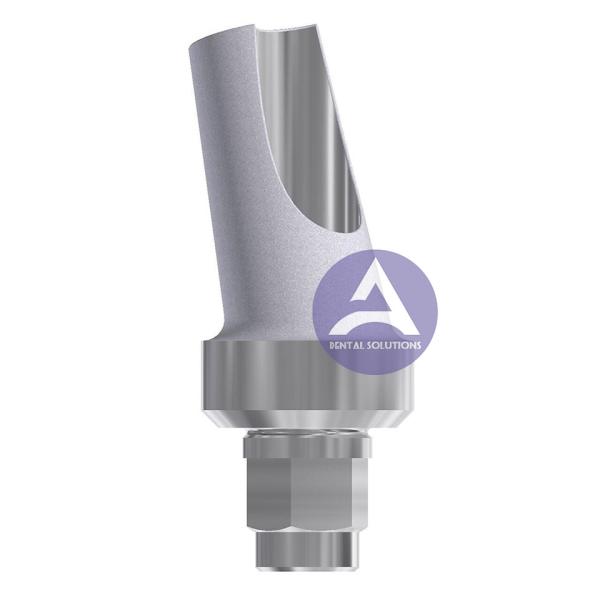

RP 3.8mm 3.0mm Dentsply Xive Angled Implant Abutment

Dentsply Xive® Titanium Angled Abutment

3.0mm/ NP 3.4mm/ RP 3.8mm/ WP 4.5mm/ 5.5mm -- 15°/25° Degree

Desciption:

This angled abutment comes with a screw that takes the 1.22mm hex driver

This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)

Angled abutments are available for cases where implants are not able to provide alignments leading to clinical parallelism.

15°/25° Angled Abutments in three cuff heights for pre-angulation.

Angled abutments are designed to be used with cemented prostheses.

They offer the clinician a wide range of three-dimensional options.

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Titanium interface abutment
* 1pc Screw Included

* Superior level of biocompatibility

* Precision machined up to ± 5µm
* Combination of high fatigue strength

* Can production Custom interface

Approved by CE, ISO 9001, ISO 13485

Points of Dentsply Xive Abutment:

Xive® S

Titanium abutments are color coded (3.0 brown, 3.4 gray, 3.8 yellow, 4.5 blue and 5.5mm red) for easy identification in regards to the platform diameter. Four collar heights (1, 2, 3 and 5mm) in straight and angled (15 degrees) configurations are offered for titanium abutments. The angle of the angled abutment is machined in relation to the flat side of the indexing feature (hex). Each titanium abutment has a screw hole tapped in to the intended lingual wall of the abutment for possible horizontal screw fixation of the definitive restoration.

Xive® TG

Titanium abutments are not color coded and seat on any TG implant diameter (3.4 gray, 3.8 yellow and 4.5 blue). Machined straight and angled (15 degrees) with the angle of the angled abutment machined in relation to the flat side of the indexing feature (square). Each titanium abutment has a screw hole tapped in to the intended lingual wall of the abutment for possible horizontal screw fixation of the definitive restoration.
