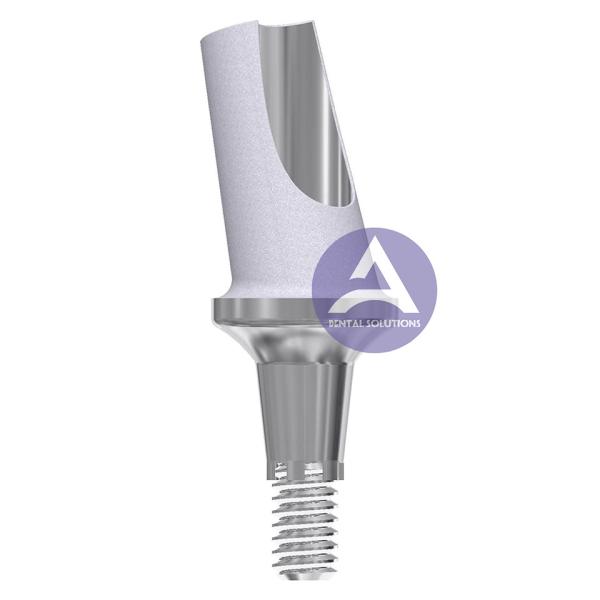

Dentsply Ankylos® Titanium Angled Abutment 15°/25° Degree
Dentsply Ankylos® Titanium Angled Abutment 15°/25° Degree
Specifications
Brand Name :
ANGELS
Model Number :
Dentsply Ankylos®
Certification :
TUV CE, ISO13485, ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
USD15-20/pc, included screw
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500,000pcs/month
Delivery Time :
3~5 days
Packaging Details :
1pcs/bag
Material :
Ti 6AI-4V ELI (Grade 5)
Warranty :
12 months
After-sale Service :
Online Technical Support
Degree :
15°/25°/Custom Degree
Compatible :
Dentsply Ankylos®
Properties :
Implant Materials & Artificial Organs
Product Tolerance :
+-0.01mm
Description

Titanium 15 Degree Dentsply Ankylos Angled Dental Implants

Dentsply Ankylos® Titanium Angled Abutment 15°/25° Degree

Desciption:

This angled abutment comes with a screw that takes a 1.00mm hex driver

This abutment is designed for use with implants placed 1mm-1.5mm sub-gingivally. (Or according your customize request)

Angled abutments are available for cases where implants are not able to provide alignments leading to clinical parallelism.

15°/25° Angled Abutments in three cuff heights for pre-angulation.

Angled abutments are designed to be used with cemented prostheses.

They offer the clinician a wide range of three-dimensional options.

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Titanium interface abutment

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* 1pc Screw Included

* Can production Custom interface
* Superior level of biocompatibility


Approved by CE, ISO 9001, ISO 13485

Dentsply Ankylos® Titanium Angled Abutment 15°/25° Degree

Dentsply Ankylos® Titanium Angled Abutment 15°/25° Degree

ANGLED
ABUTMENT

A

B

C

D
22.048 15º 2,52 Cone ANK 1,50 7,30
22.250 15º 2,52 Cone ANK 3,00 6,60
23.048 25º 2,52 Cone ANK 1,50 7,30
23.250 25º 2,52 Cone ANK 3,00 6,60

Points of Dentsply Ankylos® C/X Angled Abutment:

Dentsply Ankylos® Titanium Angled Abutment 15°/25° Degree

Fig. 3

Standard titanium abutments are intended for the abutment level impression technique and are produced with four variables; abutment diameter (Fig.3, left, 3.3mm "A", 4.5mm "B"), collar height (1.5, 3.0, 4.5, 6.0mm), abutment height (Fig.3, middle, 4mm, 6mm) and angulation (Fig.3, right, 0°, 15°). Straight abutments are machined as a unibody (screw and abutment are one singular piece) while angled abutments are manufactured as a two piece component with a permanently trapped screw.
