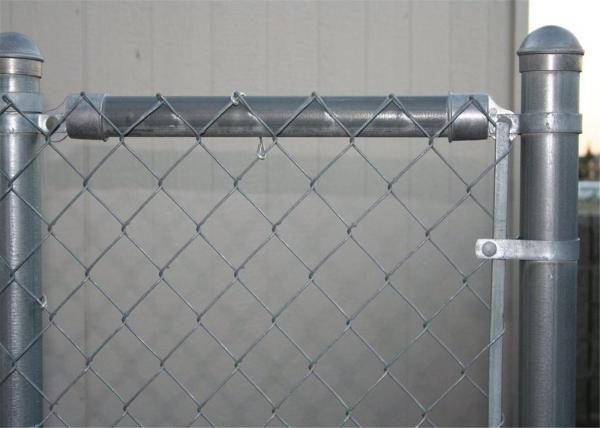

Galvanized chain link fence( diamond wire mesh), PVC Coated Chain mesh Fence
Galvanized chain link fence( diamond wire mesh), PVC Coated Chain mesh Fence
Specifications
Brand Name :
LNF-Chain link Fence melbourne
Model Number :
65mm mesh
Certification :
ASTM/AS4687-2007
Place of Origin :
American ,Australia ,Canadan
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 steel
Color :
Any Ral Color
Treatment :
Hot Dipped Glavanized,Powder Coated
Mesh Opening :
50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,60mm x 60mm ,80mm x 80mm
Diameter :
1.5mm to 5.00mm
Type :
Woven Mesh
Warranty :
5 -25 years depand on the treatment
Main Market :
Europea ,Middle East ,USA ,AU etc
Accessoires :
Tension Band ,Bar ,Steel Plate and Post Caps etc
Customized :
Available
Feature :
Diamond Mesh
Application :
Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence,and Son
Trade Mark :
N/M
Sample :
Free but pay freight cost
Nickname :
wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence
Description

Galvanized chain link fence( diamond wire mesh), PVC Coated Chain mesh Fence

1.Description of chain link fence

chain link fence is a type of woven fence usually made from galvanized or PVC/PE-

coated steel wire. chain link fence with easy construction and maintenance,

bright colors, which are the preferred products to beautify the urban env-

environment.

5.A common size of our chain link fence :

The dimension of Galvanized Chian Link Fence

Mesh

Wire Diameter

Width

Length

40mmx40mm

1.8mm--3.0mm

0.5m--4.0m

5m-25m

50mmx50mm

1.8mm--3.5mm

0.5m--4.0m

5m-25m

60mmx60mm

1.8mm--4.0mm

0.5m--4.0m

5m-25m

80mmx80mm

2.5mm--4.0mm

0.5m--4.0m

5m-25m

100mmx100mm

2.5mm--4.0mm

0.5m--4.0m

5m-25m

6.galvanized chain link fence weight list :

Mesh

Gauge(BWG)

Weight(kg/m2)

Width(m)

Length(m)

1/2"

14

4.4

0.5m-5.0m

1.0m-50m

3/4"

12

6.0

0.5m-5.0m

1.0m-50m

3/4"

14

3.3

0.5m-5.0m

1.0m-50m

3/4"

16

1.9

0.5m-5.0m

1.0m-50m

1"

12

4.0

0.5m-5.0m

1.0m-50m

1"

14

2.4

0.5m-5.0m

1.0m-50m

1"

16

1.4

0.5m-5.0m

1.0m-50m

5/4"

12

3.2

0.5m-5.0m

1.0m-50m

5/4"

14

1.92

0.5m-5.0m

1.0m-50m

3/2"

10

4.0

0.5m-5.0m

1.0m-50m

3/2"

12

2.7

0.5m-5.0m

1.0m-50m

3/2"

14

1.6

0.5m-5.0m

1.0m-50m

2"

8

4.16

0.5m-5.0m

1.0m-50m

2"

10

3.0

0.5m-5.0m

1.0m-50m

2"

11

2.5

0.5m-5.0m

1.0m-50m

2"

12

2.0

0.5m-5.0m

1.0m-50m

2"

9

3.2

0.5m-5.0m

1.0m-50m

7. surface treatment :

Surface treatment

Min

Max

Electro-Galvanized

15g/m2

25g/ m2

Hot dip galvanized

30/ m2

366g/m2

PVC/PE Coated

400microns

1000microns

9.CHOOSING THE BEST TYPE :

Height

Chain link fabric fence may be anything from 3 feet the 12 feet high, the highest being

generally used to surround sports areas where it is important to prevent balls

escaping.chain link fence for use around homes can be fitted with privacy slats.

Thickness of wire

The thickness of the wire for chain link fence can be quite confusing. Manufacturers

will usually refer to the thickness of the wire is a certain 'gauge', for example, 11 or

12 gauge. Oddly, the higher the number of the gauge, the thinner the wire. Thus,

11 gauge corresponds to a thickness of 0.120 inches, and a 12 gauge corresponds to a

the thickness of only 0.105 inches.

Although gauges can vary between 6 and 14, the most common gauges for chain link

fencing are 11, 11.5 and 12 gauge, 9 gauge chain link fence.

Finishes

Chain link fabric fence is normally made from zinc galvanized steel wire, with the galvanizing being applied either before or after the weaving of the wire. It is preferable for the galvanizing to the applied before weaving, to ensure that all surfaces are fully galvanized. Of course, you can also select the PVC/PE coated chain link fence.

Edge type

Closed edge and twisted barbed edge
