Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale
Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale
Specifications
Brand Name :
LNF-Chain link Fence fabric
Model Number :
2.5" etc
Certification :
ASTM392 ASTM396
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
3.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 steel
Color :
Any Ral Color
Treatment :
Hot Dipped Glavanized,Powder Coated
Mesh Opening :
65mm x 65mm 50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,60mm x 60mm ,80mm x 80mm
Diameter :
1.5mm to 5.00mm
Type :
Woven Mesh
Warranty :
5 -25 years depand on the treatment
Main Market :
Europea ,Middle East ,USA ,AU etc
Accessoires :
Tension Band ,Bar ,Steel Plate and Post Caps etc
Customized :
Available
Feature :
Diamond Mesh
Application :
Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence,and Son
Trade Mark :
N/M
Sample :
Free but pay freight cost
Nickname :
CYCLONE FENCE,wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence
Description

Tennis Play Ground Chain Wire Fence 50mm x 50mm, chain wire park chain wire fencing for sale

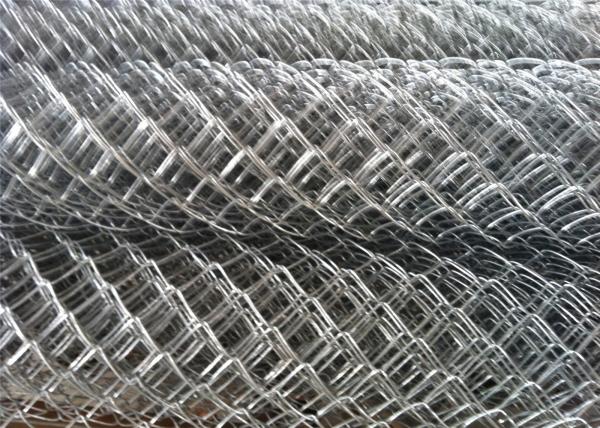

Chain link fence is made from galvanized or PVC coated iron wire, to fix with posts, brace, and fittings to build a chain-link fence system in the park, tennis court, airport, and other places. Also can be used for animal breeding. Chain link is mainly divided into galvanized, PVC, PE-coated three finishing chain link fence with easy construction and maintenance, bright colors, which are the preferred products to beautify the urban environment.

2.chain link fence common specification:

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale

The dimension of Galvanized Chian Link Fence
Mesh Wire Diameter Width Length
40mmx40mm 1.8mm--3.0mm 0.5m--4.0m 5m-25m
50mmx50mm 1.8mm--3.5mm 0.5m--4.0m 5m-25m
60mmx60mm 1.8mm--4.0mm 0.5m--4.0m 5m-25m
80mmx80mm 2.5mm--4.0mm 0.5m--4.0m 5m-25m
100mmx100mm 2.5mm--4.0mm 0.5m--4.0m 5m-25m

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale

Dimension of PVC Coated Chian Link Fence
Mesh Wire Diameter Width Length
40mmx40mm 2.8mm--3.8mm 0.5m--4.0m 5m-25m
50mmx50mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m
60mmx60mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m
80mmx80mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m
100mmx100mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale

galvanized chain link fence weight :

Mesh Gauge(BWG) Weight(kg/m2) Width(m) Length(m)
1/2" 14 4.4 0.5m-5.0m 1.0m-50m
3/4" 12 6.0 0.5m-5.0m 1.0m-50m
3/4" 14 3.3 0.5m-5.0m 1.0m-50m
3/4" 16 1.9 0.5m-5.0m 1.0m-50m
1" 12 4.0 0.5m-5.0m 1.0m-50m
1" 14 2.4 0.5m-5.0m 1.0m-50m
1" 16 1.4 0.5m-5.0m 1.0m-50m
5/4" 12 3.2 0.5m-5.0m 1.0m-50m
5/4" 14 1.92 0.5m-5.0m 1.0m-50m
3/2" 10 4.0 0.5m-5.0m 1.0m-50m
3/2" 12 2.7 0.5m-5.0m 1.0m-50m
3/2" 14 1.6 0.5m-5.0m 1.0m-50m
2" 8 4.16 0.5m-5.0m 1.0m-50m
2" 10 3.0 0.5m-5.0m 1.0m-50m
2" 11 2.5 0.5m-5.0m 1.0m-50m
2" 12 2.0 0.5m-5.0m 1.0m-50m
2" 9 3.2 0.5m-5.0m 1.0m-50m

Chain link fence surface treatment :

Surface treatment Min Max
Electro-Galvanized 15g/m2 25g/ m2
Hot dip galvanized 30/ m2 366g/m2
PVC/PE Coated 400microns 1000microns

3.Galvanized chain link fence :

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale

4.PVC coated chain link fence :

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale

CHOOSING THE BEST TYPE :

The main considerations are the height of the fence, the thickness of the wire, and the finish of the wire.

Height

Chain link fences may be anything from 3 feet the 12 feet high, the highest being generally used for surround sports areas where it is important to prevent balls escaping. Lower chain link fences for use around homes can be fitted with privacy slats.

Thickness of wire

The thickness of the wire for chain link fences can be quite confusing. Manufacturers will usually refer to the thickness of the wire being a certain 'gauge', for example, 11 or 12 gauge. Oddly, the higher the number of the

gauge, the thinner the wire. Thus, 11 gauge corresponds to a thickness of 0.120 inches, and a 12 gauge corresponds to a thickness of only 0.105 inches. Although gauges can vary between 6 and 14, the most common gauges for chain link fencing are 11, 11.5 and 12 gauge.

Finishes

Chain link fence is normally made from zinc galvanized steel wire, with the galvanizing being applied either before or after the weaving of the wire. It is preferable for the galvanizing to the applied before weaving, to ensure that all surfaces are fully galvanized. Of course, you can also select the PVC/PE coated chain link fence.

Edge type: Closed edge and twisted barbed edge

5.chain link fence fittings (terminal post, end post, corner post, gate post, line pot installing) :

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale

chain link fence fittings installation live-action :

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale

Packaging & Shipping

Packaging: Both ends are wrapped with plastic cloth and mesh bag, and then into the container. Special packaging requests are also accommodated.

Shipping: 15-20 days after we receive your payments

Tenis Play Ground Chain Wire Fence 50mm x 50mm ,chain wire park chain wire fencing for sale
