16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
16GA/ 1.6mm thick 1⅗(40mm) pipes cross brace chain wire mesh 2x2 (50mm x 50mm) 8ftx12ft construction temp fence
Specifications
Brand Name :
LNF-temporary chain link fence
Model Number :
6' 8' height width 9.5' 10' 12'
Certification :
ASTM392 ASTM396
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
9.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
2”x2/”(50mm x 50mm) 2¼”x2¼”(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½”x2½” (63mmx63mm)
Diameter :
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Type :
Chain Link Mesh
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Feet :
36” length x 30” width x 8” Height /914mmx762mmx203mm
Accessoires :
Top Couper
Description

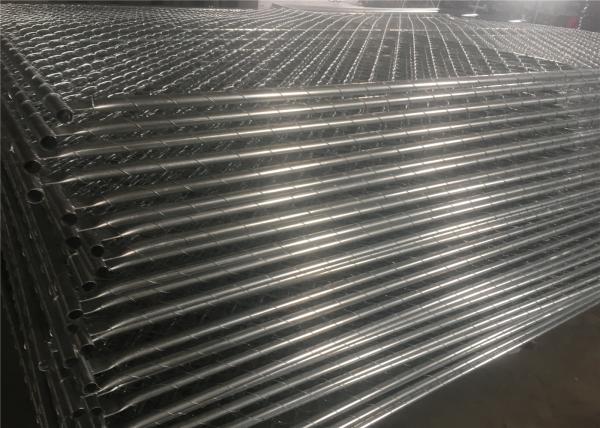

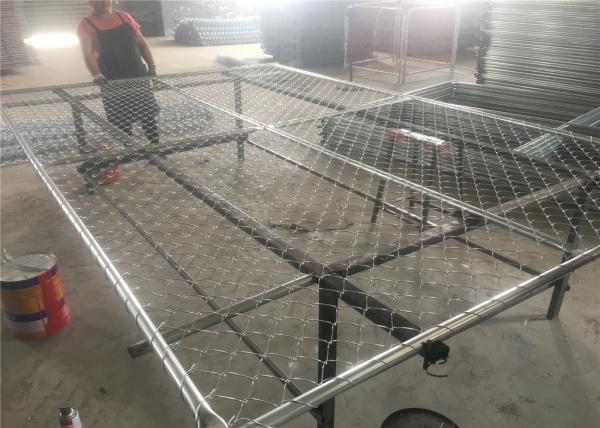

16GA/ 1.6mm thick 1⅗”(40mm) pipes cross brace chain wire mesh 2”x2/”(50mm x 50mm) 8ftx12ft construction temp fence

leading new fence manufactured construction fence panels available chain mesh and weld mesh both of 2 them we were sold well in United States market due to historical reason American people always took chain link mesh construction fence as first optional 6ft x 12ft standard temporary chain link fence panels were with the following advantage

  • Easy installation or maintenance replacement

  • Can be easily relocated

  • Minimum repair required only damaged panels to be replaced

  • Standard/custom modular sizes

Chain link fence panels for construction was widely application

  • Construction sites and private property

  • Residential housing sites and schools

  • For major public events, sports, concerts, festivals, gatherings, Sports playground or swimming pools.

  • Traffic control and crowd control.

Temporary Chain Link Fence /Construction Fence Panels /Removable Fence / Portable Fence
Tubing 1¼”(32mm) 1⅜”(35mm) 1½”(38mm) 1⅗”(40mm) 1⅝”(42mm) 1⅞”(48mm)and so on
Thickness of Tubing 16GA/ 1.6mm thick as a standard or customized owned size
Chain mesh aperture 2”x2/”(50mm x 50mm) 2¼”x2¼”(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½”x2½” (63mmx63mm)
Height 4ft/1220mm 6ft/1820mm 8ft/2420mm
Width 12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size 6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1 36” length x 30” width x 8” Height /914mmx762mmx203mm
Base Optional 2 36” length x 16” width x 8” Height /914mmx406mmx203mm
Base Optional 3 30” length x 18” width x 8” Height /762mm x460mm x203mm
Standard ASTM A392-06
Steel Galvanized Steel Construction
Finish Corrosion-Resistant Zinc Coating
Transport Packing Metal pallet Wrapped with Plastic
HDG zinc thickness 14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

  • 15 days after receiving the deposit shipment;

  • We choose a shipping company of high quality but charges lower price;

  • For loading goods, we track all the way to ensure the products’ safety and quickness until their arriving at the port of destination;

  • After confirming receipt, we will provide installation instructions and subsequent technical guidance;

  • For products and accessories, our company is able to provide various products accessories at the cost to the customer at any time.

16GA/ 1.6mm thick 1⅗
