4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
4'x10' chain link fence construction fencing tubing 1⅜(35mm) x16.5ga/1.50mm wall thick chain mesh 3x3 x 11.5ga dia
Specifications
Brand Name :
LNF-temporary chain link fence
Model Number :
6' 8' height width 9.5' 10' 12'
Certification :
ASTM392 ASTM396
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
9.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
2"x/(50mm) 2¼"(57mm) 2⅜"(60mm) 2½"(63mm)
Diameter :
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3mm
Type :
Chain mesh
Color :
Available any Such as Yellow ,Black ,Blue ,Red etc
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet :
30" length x 18" width x 8" Height
Accessoires :
Top Couper
Description

4'x10' chain link fence construction fencing tubing 1⅜"(35mm) x16.5ga/1.50mm wall thick chain mesh 3"x3" x 11.5ga dia

Temporary chain link fence panels are widely used by contractors construction companies and special event organizers. This type of temporary fence product is a quick and easy option for a construction site, an outdoor sporting event, or an arts festival.

2. Specification

Tubing

1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on

Thickness of Tubing

16GA/ 1.6mm thick as a standard or customized owned size

Chain mesh aperture

2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)

Height

4ft/1220mm 6ft/1820mm 8ft/2420mm

Width

12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft

Panels Size

6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on

Diameter /Gauge

10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m

Base Optional 1

36" length x 30" width x 8"Height /914mmx762mmx203mm

Base Optional 2

36" length x 16" width x 8" Height /914mmx406mmx203mm

Base Optional 3

30" length x 18" width x 8" Height /762mm x460mm x203mm

Standard

ASTM A392-06

Steel

Galvanized Steel Construction

Finish

Corrosion-Resistant Zinc Coating

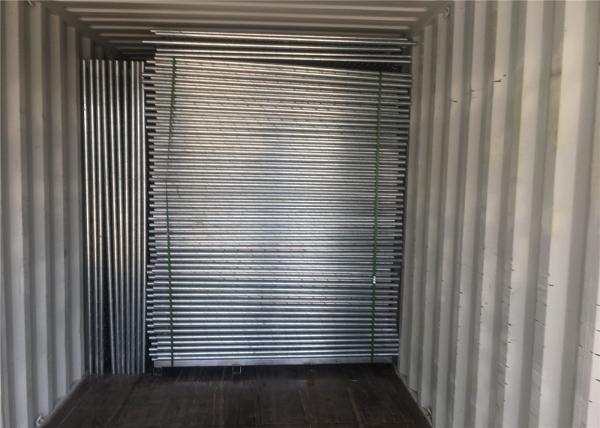

Transport Packing

Metal pallet Wrapped with Plastic

HDG zinc thickness

14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

Application

  • Secure construction sites and private property.

  • Residential housing sites.

  • Crowd control barriers for major public.

  • Events, sports, concerts, festivals, gatherings, etc.

  • Swimming pools

4'x10' chain link fence construction fencing tubing 1⅜4'x10' chain link fence construction fencing tubing 1⅜4'x10' chain link fence construction fencing tubing 1⅜
