Mil 3 Galvanized Hesco Bastion , Hesco Flood Mitigation Barrier Wall
Mil 3 Galvanized Hesco Bastion , Hesco Flood Mitigation Barrier Wall
Mil 3 Galvanized Hesco Bastion , Hesco Flood Mitigation Barrier Wall
Mil 3 Galvanized Hesco Bastion , Hesco Flood Mitigation Barrier Wall
Mil 3 Galvanized Hesco Bastion , Hesco Flood Mitigation Barrier Wall
Mil 3 Galvanized Hesco Bastion , Hesco Flood Mitigation Barrier Wall
Specifications
Brand Name :
TOP HESCO BARRIERS
Model Number :
Military Barriers
Certification :
ISO
Place of Origin :
China
MOQ :
100 pcs
Price :
5USD-135USD per roll
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 pcs per week
Delivery Time :
15 work days
Packaging Details :
Wooden Or Metal Pallet ,Bulk ,Two End Of Roll Wrapped With Plastic Bag
Materials :
Q235 steel pre hot dipped galvanized steel pipe
Color :
Any Ral Color
Treatment :
Hot Dipped Glavanized Wire
Wire Thickness :
4.00mm -5.00mm
Type :
Weld
Warranty :
5 -25 years depand on the treatment
Main Market :
USA etc
Customized :
Available
Sample :
Free but pay freight cost
Mesh Opening :
3" x 3"
Name :
welded hesco bastion blast wall
Hole shape :
Square,Hexagonal,5*20cm or customized,Rectangle
Material :
Galvanized Iron Wire,Low-Carbon Iron Wire,galvanized low carbon steel wire,hot dipped galvnaized wire,Galfan Wire
Wire gauge :
4mm,2.0-4.0mm,5mm,3.0,5.00mm
Application :
Gabions,Fence Mesh,Cages,protection against blasts/detonations & ramming vehicles,Protecting Mesh
Product name :
Military Sand Wall Rapid Deployment Barrier Hesco Defensive Barrier,Galvanized HESCO defensive barriers hesco barriers for sale,hesco barriers price,Anping good quality Much safe galvanized gabion wire mesh for sale,Welded Hesco Barrier
Aperture :
50x50mm,1/2",1/4"-6",3/4",75x75mm
Feature :
Easily Assembled,Anti-corrosion,Low Cost,Easy Install,Durable
Surface treatment :
Hot Dipped Galvanized,galfan,Hot-dipped Galvanized,Galvanized+PVC Coated,Electro galvanized/Hot dip galvanized
Usage :
Protection,Flood Control Retaining Wall,Blast Wall,decorative stone,military
Width :
0.61-2.13m,2'6",2',3'3",7'
Packing :
Wrapped with shrink film or packed in pallet,Pallet,Shrink Film,flat packed on pallet,wooden pallet with straps according to the clients' request
Length :
1.2-30m,10',4',18',32'
Geotextile :
in heavy duty non-woven polypropylene,2.5mm,no-wovwn cloth,250g/sqm,Non-woven polypropylene
Wire diameter :
5mm,4mm,3.0-5.0mm,6mm,3-6mm
Mesh size :
60x80 80x100 80x120 100x120,75X75mm,3" x 3",50mm*50mm,4" x 4" etc
Finish :
Hot dipped galvanized,Hot-dipped Galvanized,Galfan Coated.,Geotextile Lined mesh gabion box,hdp galvanized after welded
Height :
0.61-2.21m,7',3'6",2'
Description

The Mil1-Mil 10 Hesco Barrier Bastion is a multi-cellular barrier system manufactured from welded Zinc-Aluminium coated steel mesh and lined with heavy-duty non-woven polypropylene geotextile.

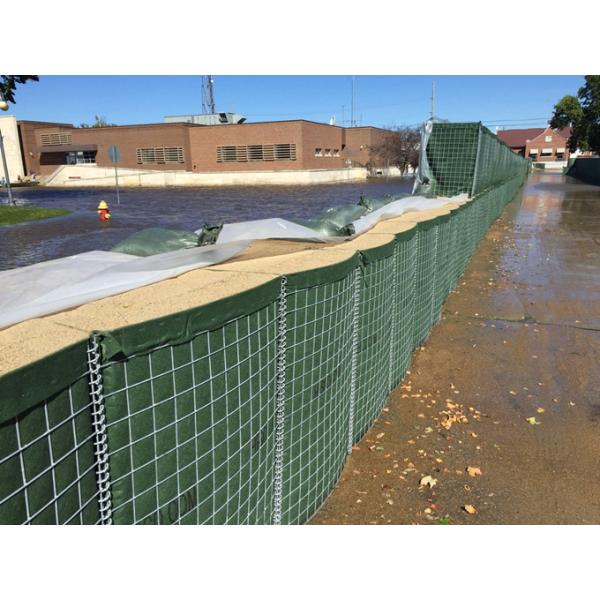

Hesco barrier is ideal for emergency flood response, offering significant advantages over traditional sandbags, in terms of cost, time and labor requirement for installation.

A wall using HESCO earth-filled barrier can be filled by two people and a standard front-end loader in just 20 minutes. The equivalent sized wall of 1,500 sandbags can take 10 people up to 7 hours to fill and build.The unique design, strength and versatility of the unit means that corners can be constructed easily, shaping the protective storm barrier to its surrounding landscape.

Specification

Mil1-Mil 10 Hesco Barrier Bastion
Material Steel wire, galvanized wire
Wire Diameter 4.0mm 5.0mm
Spring Diameter 4.0mm
Mesh Opening 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect
Panel Size 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested
Geotextile Heavy duty non-woven polypropylene
Colour White, Sand color, Military Green
SX-1 1.37m* 1.06m*10.0m
SX-2 0.61m* 0.61m*1.22m
SX-3 1.0m*1.0m*10.0m
SX-4 1.0m*1.5m*10.0m
SX-5 0.61m* 0.61m*3.05m
SX-6 0.61m* 0.61m*6.10m
SX-7 2.21m*2.13m*8.52m
SX-8 1.37m*1.22m*10.0m
SX-9 1.0m*0.76m*9.14m
SX-10 2.13m*1.52m*7.62m

Features

1. A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner.

2. Filling material is an easily-obtained mix of sand and small stones.

3. Can be connected together to any length, and can be stacked for additional height.

4. One of the best features of the defensive barrier is the ease in which it is set up. Get it flown in or pull it off a truck, unfold it, use a front end loader or other heavy equipment to fill it up with dirt, sand or gravel.

Applications

The Mil1-Mil 10 Hesco Barrier Bastion come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4 by 1.1 by 9.8 metres (4.6 ft × 3.6 ft × 32.2 ft) to 2.1 by 1.5 by 30 metres (6.9 ft × 4.9 ft × 98.4 ft).

Environment is that of a Mil1-Mil 10 Hesco Barrier Bastion , used to protect personnel and equipment from the effects of weapons and to increase security around a perimeter. For maximum strength and ease of construction, defence walls are generally constructed from multiple courses, and in a pyramid configuration.

Advantage

The main advantage of Mil1-Mil 10 Hesco Barrier Bastion , strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup.
