Specifications
Brand Name :
LNF-Construction Fencing
Model Number :
4'6'8' Height and 2100mm height etc
Certification :
ISO
Place of Origin :
American ,Australia ,Canadan
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
2”x2/”(50mm x 50mm) 2¼”x2¼”(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½”x2½” (63mmx63mm)
Diameter :
10ga -13 ga 2.0mm -3.2mm
Type :
Weld Mesh and Steel
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet :
36” length x 16” width x 8” Height /914mmx406mmx203mm
Accessoires :
Top Couper
Description

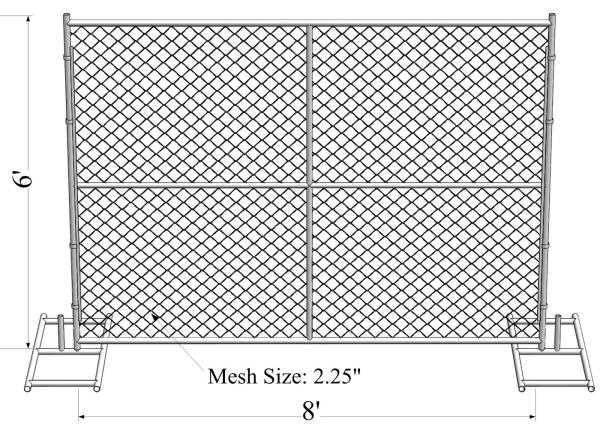

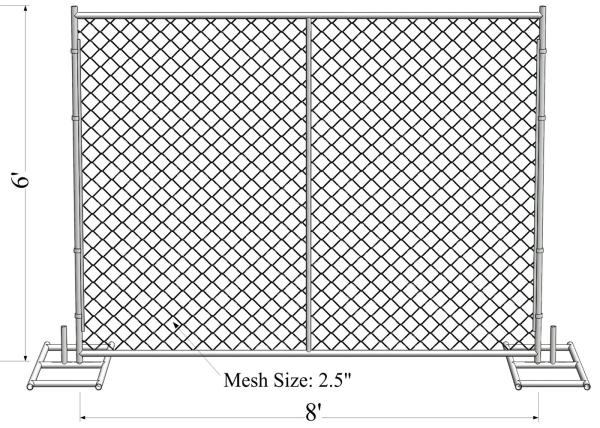

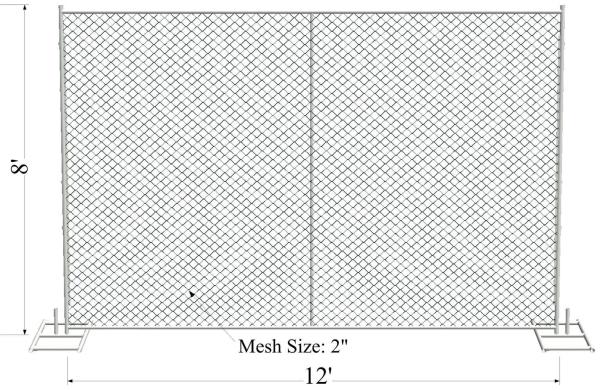

ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗"(40mm) cross brace mesh 1⅗"40mm

Chain Link, Temporary fence is also known as Temporary fencing, temporary fence panels, portable fence, Temp fence, temp fencing and mobile fence. It is consist of chain link panel, round tube frame, plastic feet, stays and clamps. This kind of fence has a superior structure, the globality, mobility and environmental suitability is very good.
2.Common product specification:
Material
low carbon steel wire, Q195
carbon steel pipe, Q235
AU Standard Specification
Wire diameter:2.7mm
Mesh opening:58x58mm,60mm*60mm,50mm*50mm
Frame pipe:32mm O.D.33.4m
Pipe thickness:2.0mm--3.0mm
HXL:6'x10'
Surface finish
(Hot dipped galvanising)
Wire zinc coating
About 200g/m2(28 microns)
Pipe zinc coating
About 300g/m2(42 microns)
Fence base
Hot dipped galvanising, sizes are suited to pipe diameter.
Base feet size
762mm*460mm,customized colors
Package
On steel pallet
3. Chain link fence features:
1). It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
2). Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle while being strong and robust at the same time;
3). The feet are removable which makes transportation and storage much easier and more efficient
4). Easy to Erect - four metres a minute
Light and easy to handle
Create a gate at any point on the perimeter
Economical temp fence - can be used time after time
Delivered accompanied by forklift for easy distribution
Constructed from heavy gauge galvanized tube and welded mesh infill

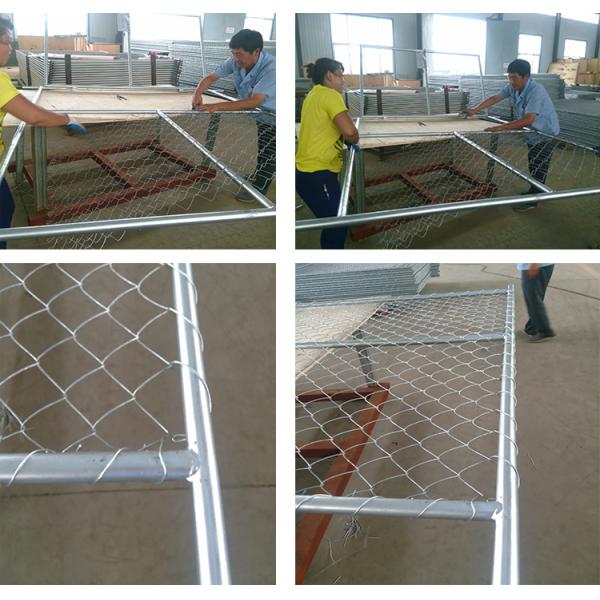

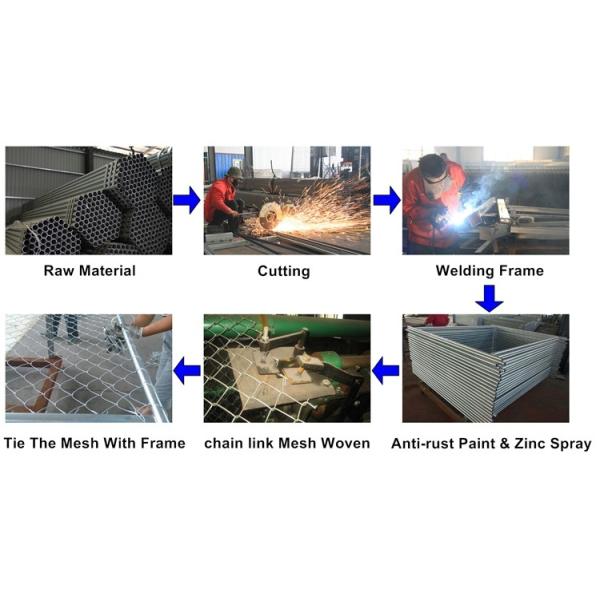

4.Construction chain link fence productive process:
Pre-hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh---Pre hot dip galvanized pipes welded—polish the welds—paint anti-rust epoxy—spray silver powder coat on each welds—stacking—packaging
chain link temporary fence , also known as mobile fence, temporary isolation fence, mobile security fence, mobile fence. The main use of removable components will be the main guardrail with the base or guard column for standard connection, such as the specific needs of the time can be easily removed, for mobile installation.They are popular in Australia, American, England, Africa market.......
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗
Specification
Wire Diameter
2.0mm-4.0mm
Mesh Opening
50x50mm, 60x60mm, 80x80mm, 100x100mm
Frame Post
26mm, 32mm, 38mm, 42mm, 48mm O.D
Panel Height
1800mm, 2000mm, 2100mm
Panel Length
2000mm, 2100mm, 2300mm, 2400mm, 2500mm
Surface Treatment
Pre-galvanized wire and tube welded;
pvc or pe coated after welded
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗

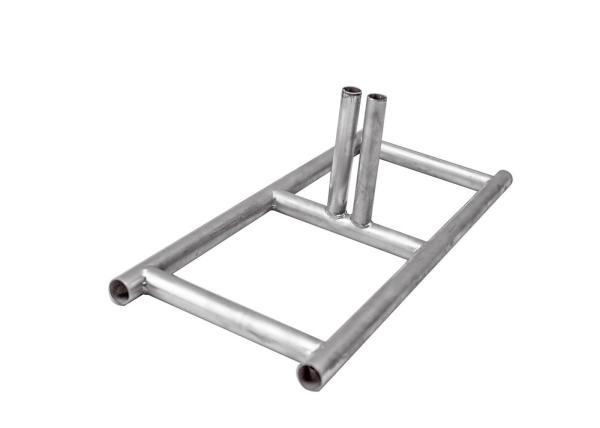

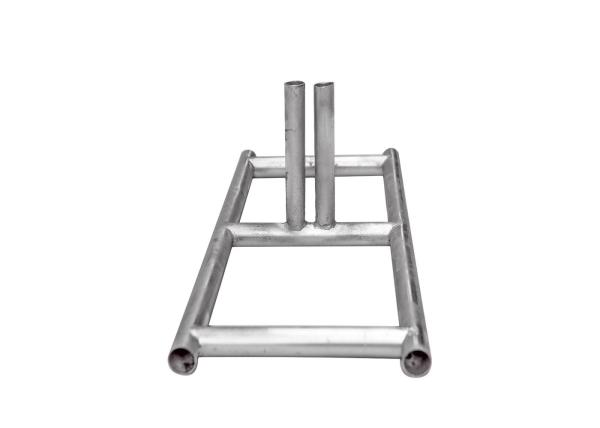

Different kinds of bases/feet of chain link temporary Fence
Temporary construction fence feet are a high quality, heavy duty, long life product. size is914x450mm.
Your High quality steel chain link temporary fence will look greater and be safer.
Of course, the plastic colorful feet is also available.
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗
The Gate of the chain link temporary Fence
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗
The application of chain link temporary Fence
· for the important meeting,festival,sports events and other matters barriers
· for all kinds of construction sites,mines and important site of cooped protection,etc
· for grassland
· for construction situation
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗
The Chain Link Temporary Fence characteristic:
1.Anti -climb mesh infill
2.360°weld between the vertical & horizontal pipe.Horizontal pipe ends crimped for increased
strength.
3.Above Industry Benchmark in thickness of galvanising
4.1.94 Metre Top Horizontal Pipe for extra security

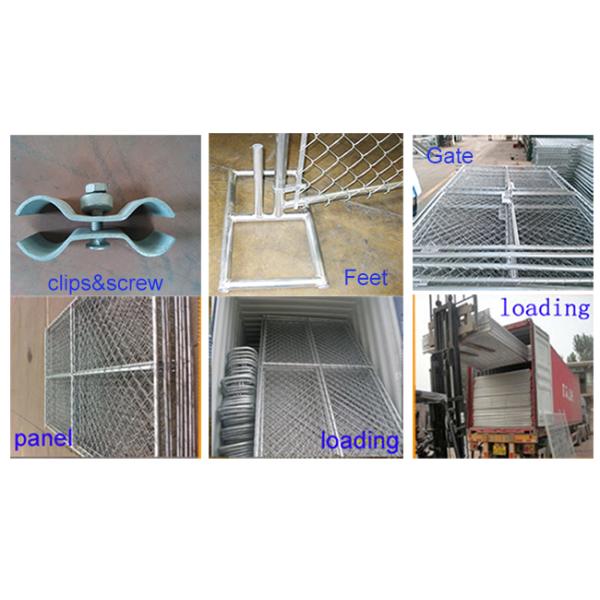

Packaging & Shipping
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗
ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗ASTM -A392-06 temporary chain link fence panels 6ft x 10ft construction fence Tubing 1⅗
