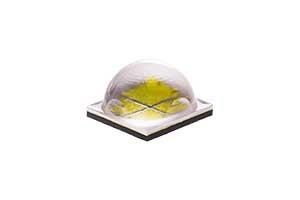

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light
XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light
Specifications
MOQ :
1000
Size :
7 x7 mm
Product Options :
6 V 12 V High-CRI
Maximum Drive Current (Standard) :
4.8 A (6 V) 2.4 A (12 V)
Max Power (W) :
29 W
Max Light Output (lm) :
4292 lm
Maximum Efficacy at Binning Conditions (lm/W) :
181 lm/W
Typical Forward Voltage :
5.6 V White @ 2100 mA (6 V) 11.2 V @ 1050 mA (12 V)
Viewing Angle :
125 °
Binning :
85°C ANSI (White) 2- 3- and 5-Step EasyWhite®
Description

CREE Xlamp XHP70A 12v 3000k ,4000k,6500k application for wall pack ,car light and torch

Size 7 x 7 mm
Product Options 6 V
12 V
High-CRI
Maximum Drive Current (Standard) 4.8 A (6 V)
2.4 A (12 V)
Max Power (W) 29 W
Max Light Output (lm) 4292 lm
Maximum Efficacy at Binning Conditions (lm/W) 181 lm/W
Typical Forward Voltage 5.6 V White @ 2100 mA (6 V)
11.2 V @ 1050 mA (12 V)
Viewing Angle 125 °
Binning 85°C
ANSI (White)
2- 3- and 5-Step EasyWhite®
Reflow Solderable Yes JEDEC J-STD-020C-compatible
Thermal Resistance 0.9 °C/W
RoHS-Compliant Yes
REACh-Compliant Yes

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light

XHP70A COB LED Chip CREE Xlamp 12v 3000k 4000k 6500k For Wall Pack / Car Light
