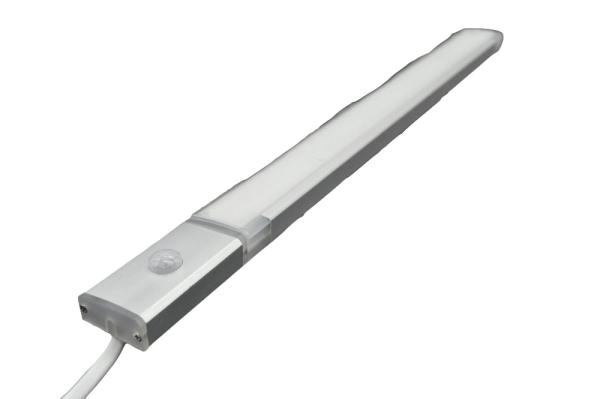

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible
White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible
White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible
White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible
White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible
White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible
Specifications
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
LED Type :
SMD2835
Item Type :
Side Cabnet Lights
Input Voltage(V) :
DC24V (DC12V Is Optional)
Lamp Power(W) :
17
Lamp Luminous Flux(lm) :
1020-1190lm
Lamp Luminous Efficiency(lm/w) :
60-70lm/W
Shade Direction :
Side
Beam Angle :
100
Description

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

Product description:

Voltage:DC( 12V version is optional)

Operating Temperature:32-113F(0-45°)

Lamp Life:40 000hrs/70%

Color Temperature:2700k,3000k,4000k,6000k

CRI:>80

Energy efficiency:70Lm/W

Degree of Protection:IP20

Product Features:

Perfect Lighting Distribution,No Spot dot

DIY Link available –Quick Connection system Between light bars

Six options of basic lengths ,can DIY any length

Various installation methods avaiable

Full sets of accessories

Constant voltage circuit design support 6m Link with tiny light difference

Soft light, good for eyes

Sensor switch function

Product Data sheet

PN H015-3W H030-5W H060-9W H090-14W H100-15W H120-17W
Length(mm) 150 300 600 900 1000 1200
Watt(W) 3 5 9 14 15 17
LED Qty(pcs) 18 36 72 108 120 144
Voltage(V) DC24 DC24 DC24 DC24 DC24 DC24
Lumens(Lm) 180-210 300-350 540-630 840-980 900-1050 1020-1190
Light Efficacy(Lm/W) 60-70 60-70 60-70 60-70 60-70 60-70
CCT(K) 2700K, 3000K,4000K,6000K
CRI(Ra) 82/92 　 　 　 　 　
Beam Angle(°) 100 100 100 100 100 100
Dimmable YES YES YES YES YES YES
Power Factor(PF) 1 1 1 1 1 1
Lifetime(Hrs) 40000 40000 40000 40000 40000 40000

Application

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

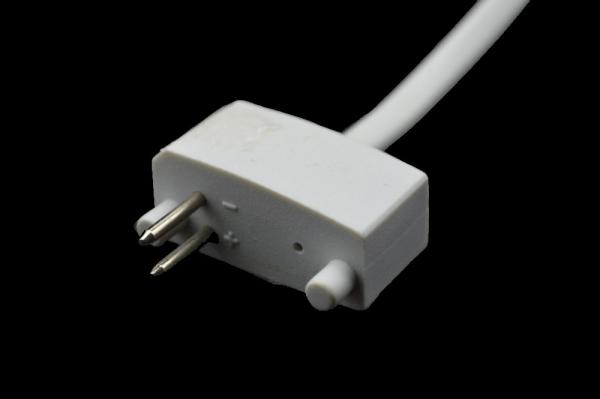

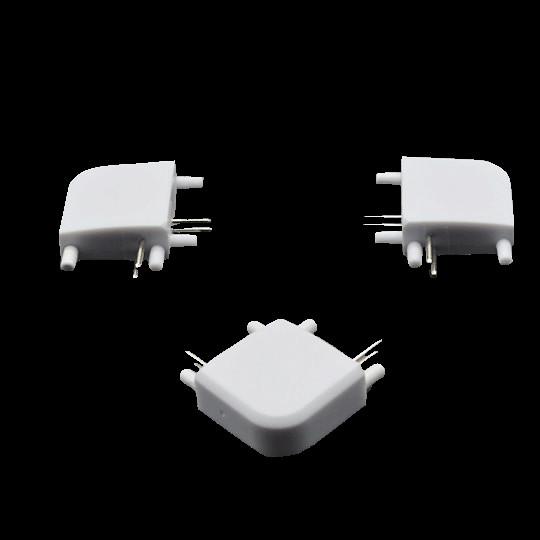

Accessories

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

White color side 17W 1200mm length liner LED side view cabinet light with Sensor switch and DIY function avaible

Product Package

Model Airline2-H015-3W Airline2-H030-5W Airline2-H030-5W Airline2-H030-5W Airline2-H030-5W Airline2-H030-5W
Box*Size 645*254*42mm 645*254*42mm 645*254*42mm 645*254*42mm 645*254*42mm 645*254*42mm
Qty/Box 40 20 10 10 10 10
Carton Size 670*265*200 670*265*200 670*265*200 670*265*200 670*265*200 670*265*200
Qty/Carton 160pcs 80pcs 40pcs 40pcs 40pcs 40pcs
G.W 12kg 12kg 12kg 16.5kg 17.8kg 22kg
