Easy Install 128x128 Dot P4mm Full Color LED Wall Display
Easy Install 128x128 Dot P4mm Full Color LED Wall Display
Easy Install 128x128 Dot P4mm Full Color LED Wall Display
Easy Install 128x128 Dot P4mm Full Color LED Wall Display
Specifications
Brand Name :
JuCaiYuan
Model Number :
P4
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen,China
MOQ :
10 square meters
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 square meters per month
Delivery Time :
12-20 working days after deposit
Packaging Details :
Standard wooden case or flight case packing as customer's request
Product Name :
Indoor Led Screens
Application :
indoor
Cabinet Material :
Die Casting Aluminum
Tube Chip Color :
Full Color
LED Lamp :
SMD2121
pixel pitch :
4mm
Life span :
100000hours
Description

Features of P4 indoor led screen:

1, High quality LED chip and high anti-static electricity capacity.
2, Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3, Ultra high brightness,low attenuation,high reliability and weather ability.
4, High Refresh Rate up to 1920Hz/s, could be adjusted.
5, High-Energy Saving, which could be save 66% energy.

Applications:

advertising media, sports stadiums, airport station integrated information dissemination, business

establishments, public area.


Specification

ITEM NO:P4
LED Module Parameters
Pixel Pitch 4.mm
Pixel Density 62500dot/m2
LED Configuration 1R1G1B
LED Type SMD2121
Module resolution 128*128dots
Module Size 256*128 mm
LED Cabinet Parameters
No of module 2*2
Cabinet Size 500*500*75mm
Cabinet Weight 6.8Kg
Flatness gap<0.2mm
Maintain Way optional
IP Rating IP 65
Cabinet Material Aluminium die casting
General Parameters
Driving method/Scan method Constant current ;1/13
Driving IC 2038s
Gray Scale 65536
Refresh rate ≥1920Hz
Luminance of white balance ≥1000cd/m2
Color temperature 4500K-9500K
View angle H:120°, V:120°
Uniformity of the luminance and chromaticity ≥97%
Max.Power Consumption 800W/m2
Avg.Power Consumption 360W/m2
Input Voltage AC220V/50Hz
Frame Rate 60Hz
MTBF 100000 Hours
Operating Temperature/Humidity -20 - 60°C/ 10%-90%RH
Certification FCC,CE,Rosh
Blind spot rate ≤0.01%
Support Input Composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA
Control Distance Ethernet cable≤100m or Fiber Optic>100m

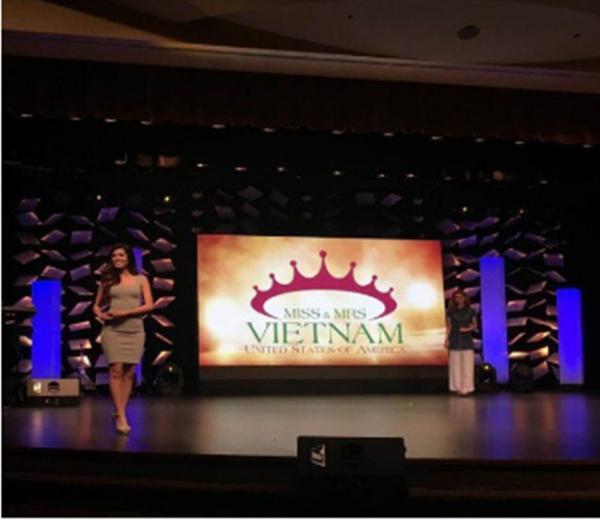

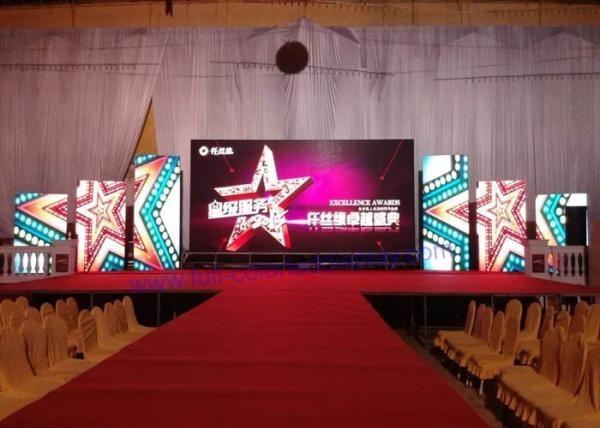

Case

Easy Install 128x128 Dot P4mm Full Color LED Wall Display

FAQ

1. Can we make any size of led display?
Nope, according the led module size and cabient size, such as ph4.81mm is 500x500mm for smallest unit.

2. What's best size of led display?
The best aspect ratio of LED display are W16:H9 or W4:H3

3. How to install led display?
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.

4. How to order LED display?
Please tell me indoor or outdoor do you need,size of led display,where will be application of led display.

5. How to shipment?
Normally, ph4.81mm will be shipped by air and dhl, becayse the value is high than other product.

6. How to payment?
You can transfer payment by TT,west union, Alibaba Trade Assurance online.
