3In1 1R1G1B P4mm Indoor Advertising LED Display Screen
3In1 1R1G1B P4mm Indoor Advertising LED Display Screen
3In1 1R1G1B P4mm Indoor Advertising LED Display Screen
3In1 1R1G1B P4mm Indoor Advertising LED Display Screen
3In1 1R1G1B P4mm Indoor Advertising LED Display Screen
3In1 1R1G1B P4mm Indoor Advertising LED Display Screen
Specifications
Brand Name :
JuCaiYuan
Model Number :
P4
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen,China
MOQ :
10 square meters
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 square meters per month
Delivery Time :
12-20 working days after deposit
Packaging Details :
Standard wooden case or flight case packing as customer's request
Product Name :
Indoor Led Screens
Life span :
100000hours
Application :
indoor
Cabinet weight :
5.2KG
Tube Chip Color :
Full Color
LED Lamp :
SMD2121
port type :
HUB75
pixel pitch :
4mm
Cabinet Material :
Die Casting Aluminum
Color :
1R1G1B
Description
3in1 Indoor Advertising LED Display Screens , Electronic SMD , 1R1G1B P4 Full Color

Safety. Using the low voltage DC so that no matter the elderly and children can safely operate without potential safety hazard.

Softness. Using PCB as the substrate and can apply to various advertising model requirements.

Long lifespan. The normal operating time is 100000 hours. If worked all the day long, it would work

for at least 10 years.

Energy conservation and environmental protection. Using the environmental materials and

low power (0.04W-0.08W) so that cannot result in waste and pollution.

Easily installation. Using attaching clamp, wire casing, iron wire, iron net and can install on all kinds

of undertake surface. It can also be installed by the double-sided adhesive because of the light weight.

Pure color. Using the high bright SMT and the color is pure, downy and no glare

Applications:

advertising media, sports stadiums, airport station integrated information dissemination, business

establishments, public area.


Specification

ITEM NO:P4
LED Module Parameters
Pixel Pitch 4.mm
Pixel Density 62500dot/m2
LED Configuration 1R1G1B
LED Type SMD2121
Module resolution 128*128dots
Module Size 256*128 mm
LED Cabinet Parameters
No of module 2*2
Cabinet Size 500*500*75mm
Cabinet Weight 6.8Kg
Flatness gap<0.2mm
Maintain Way optional
IP Rating IP 65
Cabinet Material Aluminium die casting
General Parameters
Driving method/Scan method Constant current ;1/13
Driving IC 2038s
Gray Scale 65536
Refresh rate ≥1920Hz
Luminance of white balance ≥1000cd/m2
Color temperature 4500K-9500K
View angle H:120°, V:120°
Uniformity of the luminance and chromaticity ≥97%
Max.Power Consumption 800W/m2
Avg.Power Consumption 360W/m2
Input Voltage AC220V/50Hz
Frame Rate 60Hz
MTBF 100000 Hours
Operating Temperature/Humidity -20 - 60°C/ 10%-90%RH
Certification FCC,CE,Rosh
Blind spot rate ≤0.01%
Support Input Composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA
Control Distance Ethernet cable≤100m or Fiber Optic>100m

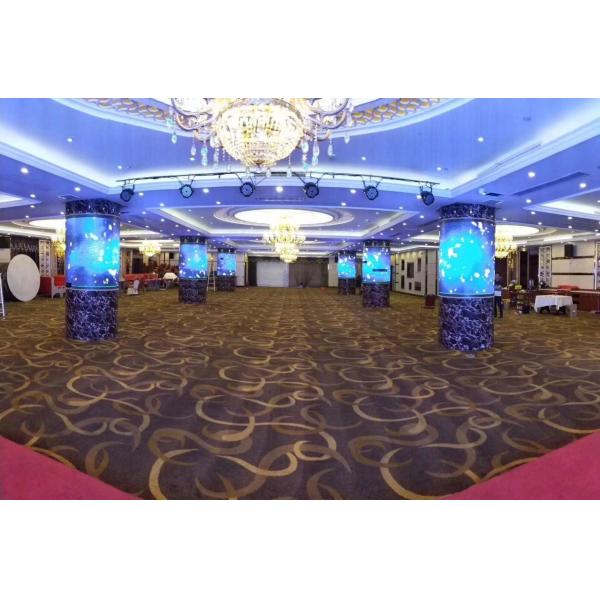

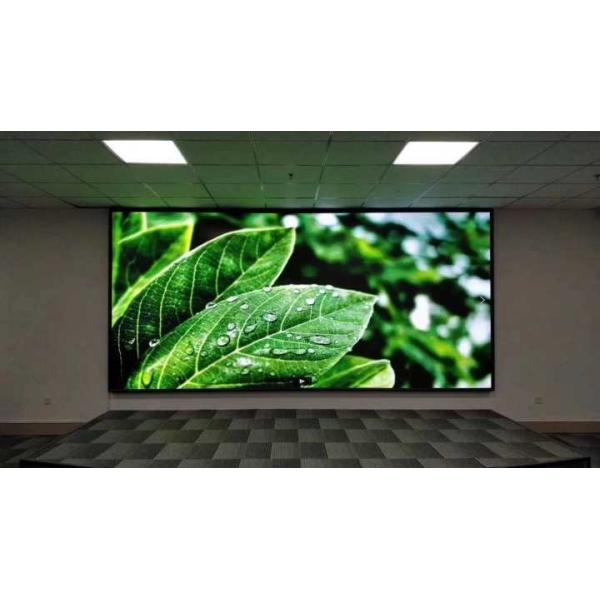

Case

3In1 1R1G1B P4mm Indoor Advertising LED Display Screen3In1 1R1G1B P4mm Indoor Advertising LED Display Screen

FAQ

1. Can we make any size of led display?
Nope, according the led module size and cabient size, such as ph4.81mm is 500x500mm for smallest unit.

2. What's best size of led display?
The best aspect ratio of LED display are W16:H9 or W4:H3

3. How to install led display?
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.

4. How to order LED display?
Please tell me indoor or outdoor do you need,size of led display,where will be application of led display.

5. How to shipment?
Normally, ph4.81mm will be shipped by air and dhl, becayse the value is high than other product.

6. How to payment?
You can transfer payment by TT,west union, Alibaba Trade Assurance online.


Remark

1. Price term:Total quotation is based on FOB Shenzhen
2. Warranty period: 2 years
3. Payment term: 30% deposit, Balance before shipping.
4. Packing method: Flight case
5. Delivery time: 12~20 working days after deposit
