Alumium Cabinet P8.928 3840Hz LED Screen Dance Floor
Alumium Cabinet P8.928 3840Hz LED Screen Dance Floor
Specifications
Brand Name :
jucaiyuan
Model Number :
P8.928
Certification :
CE,ROHS
Place of Origin :
shenzhen, China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
flight case, wooden case, carton, it is up to you
Product Name :
Interactive LED Floor Tile
Pitch :
8.928mm
Size(W×H×D) :
500×500×82 mm/tile
Pixel Density :
12580mm
Weight :
13 kg/tile
Material :
Aluminum Die Casting( lbs)
Application :
Play Video, Live Events Led Display
Cabinet Material :
Die-casting Alumium
Description

Interactive Floor LED Tile P8.928 12580mm Pixel Density 1/7 Scan Constant Current

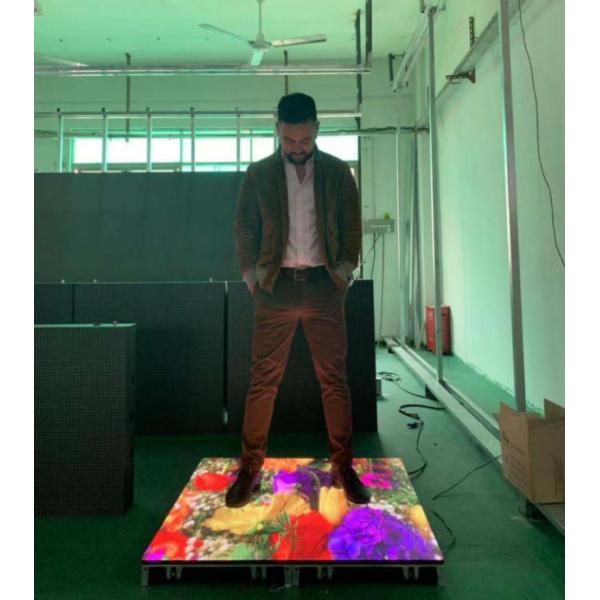

What is led floor tiles screen ?


LED tile screen is a kind of LED display designed for the ground, it has done a special design for load-bearing, protective properties, and thermal performance so that it can adapt to high-strength stampede, long time normal operation.

LED tile screen applications:
Used in the stage, concerts, performances, bars, disco, shopping malls, etc.

LED tile screen features:
1.Quick and flexible installation: no tools can be installed directly or rail installation.
2. High load-bearing performance: aluminum alloy structure, high load per square meter up to 1.5 tons.
3. Excellent maintenance performance: can be directly exchanged without removing the adjacent box
4. High contrast design: technology design masks, clear playback.
5. Outstanding low light high gray effect, showing uniform grayscale, good consistency.

Feature:

High weight load-bearing

With rubber seal,suitable for outdoor application besides indoor.

With die casting materials, each panel is only 13kg, greatly save transportation cost.

Adjustable base support to make the screen surface extremely flat

Taking any panel from front side no need to remove any other tiles

Fan-less design make the screen very quiet. It’s very important used in TV studio, concerts, etc.

500×500mm (W×H), easy to calculate and assemble big screen within limited time.

Many pixel pitch displays optional such as 8.93mm, 10.42mm, 17.85mm , 20.83mm

Parameter specification

Pixel Pixel pitch 8.928mm
Pixel configuration 1R1G1B
LED Lamp Red Wavelength 180-240M/CD
Green Wavelength 650-850M/CD
Blue Wavelength 80-100M/CD
LED specification SMD3535
Module Module size 250MM*250MM*16MM
Pixel resolution 28dots*28dots
Weight 540g
Cabinet Cabinet size 500MM*500MM*75MM
Cabinet resolution 56dots*56dots
Screen body Driving mode Constant current scaning 1/7
Pixel density 12580dots/ M
Brightness 1600-2400cd/ M
Gray scale 4096 grade
Refresh frequency ≥3840Hz
Span life ≥70000hours
Voltage AC220V±15% 47～64HZ
Maximum power/㎡ 400W/ M
Average power/㎡ 240W/ M
Mean Time Between Failure ≥7000hours
Working temperature -10℃～+60℃
Working humidity 10%-95%RH

Alumium Cabinet P8.928 3840Hz LED Screen Dance Floor
