Specifications
Brand Name :
JuCaiYuan
Model Number :
P7.81mm / 10.4mm
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 ㎡/month
Delivery Time :
12-20 working days after deposit
Packaging Details :
Standard wooden case or flight case packing as customer's request
Product Name :
Transparent LED Display
Pixel Pitch :
3.91-7.82MM
Cabinet Size :
1000x500mm
Usage :
Semi-outdoor, Outdoor
Pixel Configuration :
1R1G1B SMD1921
Scan Mode :
1/16scan
Protection Grade :
IP23
Warranty :
2 Years Warranty
Description

die cast aluminum cabinet SMD2121 high transparency window usage clear outdoor transparent led screen

Advantages of LED transparent display
Display effect Both have unique display effects because the display background is transparent, which can make the advertising screen feel like floating on the glass curtain wall, with good advertising and artistic effects
As we all know, because the LED transparent screen is transparent and beautiful, in the commercial market,
LED transparent screen
The application has become so popular. Relying on the characteristics of transparency, thinness, installation, energy saving and environmental protection, it is widely favored by the market, and it plays an irreplaceable position in the beautification and display of big cities in my country.

All kinds of parameter style as follows.if you need more detailed, you can contact me directly.
Product item LED transparent display(indoor installation)Frontal illumination
Lamp specifications Pixel composition density(dots/sqm) Cabinet size Millimeter drive mode Brightnes:CD
P 3.91-7.82 2121 1R1G1B 32768 1000*1000 1/16S ≥1200
2121 1R1G1B 32768 1000*1000 1/7S ≥2500
p3.91-7.82 1921 1R1G1B 32768 1000*1000 1/16S ≥2500
2727 1R1G1B 32768 1000*1000 1/7S ≥5000
P7.82-7.82 1921 1R1G1B 16384 1000*1000 1/8S ≥2000
2727 1R1G1B 16384 1000*1000 1/4S ≥4500
P7.82-15.625 2727 1R1G1B 8192 1000*1000 1/8S ≥2000
P10.4-10.4 3535 1R1G1B 9216 1000*1000 1/6S ≥2500
3535 1R1G1B 9216 1000*1000 1/3S ≥5500

Die Cast Aluminum Cabinet SMD2121 Outdoor Transparent LED Screen

Die Cast Aluminum Cabinet SMD2121 Outdoor Transparent LED Screen

Application:

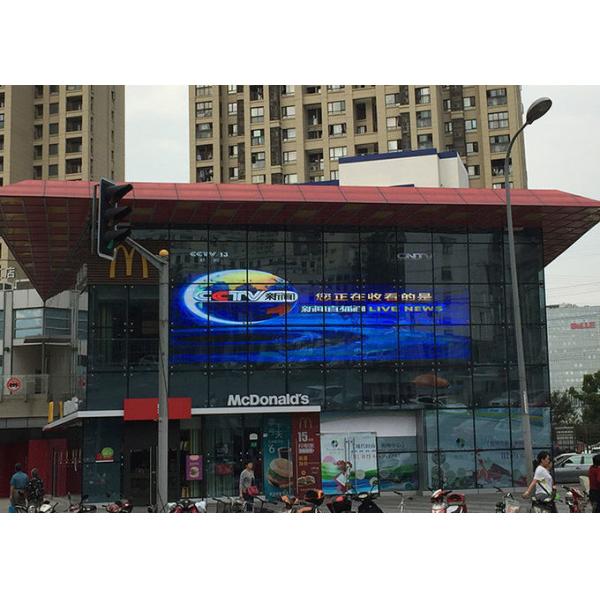

Ultra Thin 10mm Transparent Mesh Led Display has extremely high 80% transparency and able to achieve a brilliant visual effect. It is directly mounted on glass windows against the building for advertising and decoration, as well as rental application for stage. It's ultra thin and lightweight, making it the perfect choice for creative designing company to use on large-scale applications.

Die Cast Aluminum Cabinet SMD2121 Outdoor Transparent LED Screen
