Ultra Thin LED Display P12mm transparent glass advertising
Ultra Thin LED Display P12mm transparent glass advertising
Ultra Thin LED Display P12mm transparent glass advertising
Ultra Thin LED Display P12mm transparent glass advertising
Specifications
Brand Name :
JuCaiYuan
Model Number :
P12
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 ㎡/month
Delivery Time :
12-20 working days after deposit
Packaging Details :
Standard wooden case or flight case packing as customer's request
Product Name :
Transparent LED Display
Tube Chip Color :
Full Color
Pixel Density :
6400 dots/ ㎡
Module Size :
500mm*100mm
Life Span :
100000 Hours
Pixel Configuration :
1R1G1B SMD1921
Description

Outdoor IP65 P12 Transparent LED Screen , Ultra Thin LED Display , CE CCC RoHS

Description:

1. Lightweight & Super Thin
Made by good aluminum material, one panel only weights 12.5 KG. It enables the installation job and

delivery job very comfortable and convenient. Thin thickness not only saves space for delivery but also for

installation environment.

2. High brightness & Waterproof
Brightness reaches 6000nits, Waterproof IP65. The product can be used for indoor and outdoor.

3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. You can shape the LED panel as

arc shape.

4. Fast Lock System & No Fan Design
Fast lock system design enables the installation faster and easier. An average worker can complete 50-70

panels within one hour. Nature cool design generates better dissipation and less power consuming.

5. Comprehensive Usage
With Above features, the product can be used for multi purposes: rental and fix installation, events, trade

show etc.

Features:

1. Mainly be used for indoor and outdoor advertising, and outdoor wall decoration.

2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.

3. Curve degrees can be adjusted accordingly to different requests of architectural design.

4. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.

5. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;

Specification:

Pixel Pitch 12.5mm
Module Size 500mm*100mm
Module Resolution (W*H) 40 dots*8 dots
Pixel Density 6400 dots/ ㎡
LED Type SMD 3535
Pixel Configuration 1R1G1B
Wavelength (R.G.B) R:625±2nm G:525±2nm B:470±2nm
Drive Mode Dynamic 1/6 Duty Constant Current
Cabinet Size 500×1000×100mm
Cabinet Resolution 40dots×80dots
Brightness ≥6000cd/㎡
Contrast ≥2000:1
Viewing Angle 140°(Horizontal )/140°(Vertical )
Best Viewing Distance 7m-300m
Grey Scale 10bits/1024levels
Color Capability 16777216
Color Temperature 5000-9300K
Maximum Power Consumption 1200W/m2
Average Power Consumption 600 W/m2
Working Voltage AC 220V/110V s±15% 50-60 HZ
Frame Frequency 60-85 HZ
Refresh Frequency 240 - 1000HZ
Brightness Correction Pixel, Module, Cabinet Correction
Operating Temperature -40~+65℃
Operating Humidity 10-90% RH
LED Lifespan 100,000 hours
MTBF ≥50,000 hours
Computer Operation System Win 98/ Win XP/ Win 2000
Video Signal Input RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card DVI Graphics Card
Control Distance LINSN / NOVA / DB-STAR
Software LED studio 10.0
Waterproof Level IP65(Front Side), IP54 (Back Side)
Installation hung and stand
Out of Control Rate 0.01 %


Application:

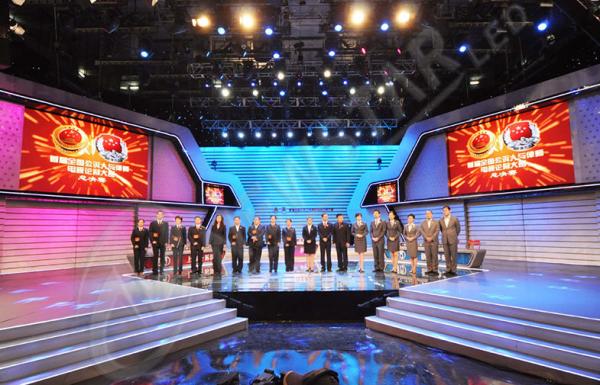

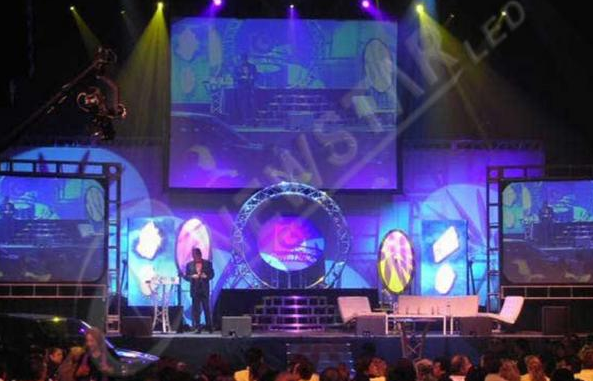

Widely using for theater, stadium, showroom, stage, monitoring room and etc.

Factory Equipment:

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
