P5.95mm Portugal Stadium CE 84x84 Dot Full Color LED Display
P5.95mm Portugal Stadium CE 84x84 Dot Full Color LED Display
P5.95mm Portugal Stadium CE 84x84 Dot Full Color LED Display
P5.95mm Portugal Stadium CE 84x84 Dot Full Color LED Display
P5.95mm Portugal Stadium CE 84x84 Dot Full Color LED Display
P5.95mm Portugal Stadium CE 84x84 Dot Full Color LED Display
Specifications
Brand Name :
JuCaiYuan
Model Number :
P5.95
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 ㎡/month
Delivery Time :
12-20 working days after deposit
Packaging Details :
Standard wooden case or flight case packing as customer's request
Pitch :
5.95mm
Scanning Mode :
1/7 Scan
LED Standard :
SMD2828
Protection Degree :
IP65
Density :
28224 Dot/㎡
Module Resolution :
84x84 Dots
Brightness :
≥6000 Cd/sqm
Warranty Period :
2 Years
Description

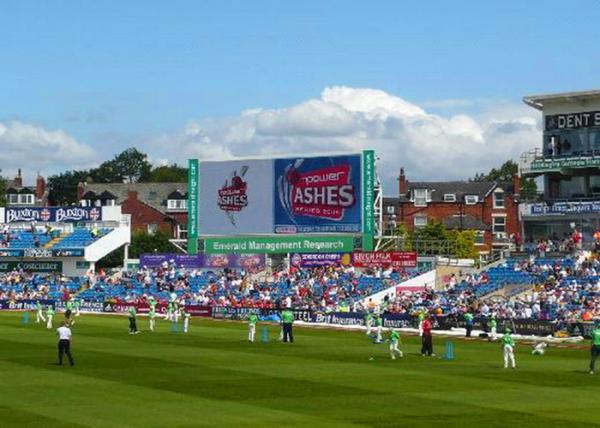

P5.95 Full Color LED Display in Portugal Stadium / Gymnasium Center

Feature of Stadium LED Display:

1. Modular design Innovative IP65 waterproof module bringing high-consistency image output with ultra-high flatness.

2. Top access Innovative top access cabinet structure helps to achieve fast installation & maintenance easily, all the parts (module, power and board card) can be easily maintained from the top of screen.

3. Exceeding the highest televised standards Refresh rate of 4000Hz and gray scale of 16bits enable the high-speed camera to capture any image of the display but without appearing any scanning line while it is on air.

4. Energy saving low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.

5. Accurate calibration technology Point-by-point chroma correction, correcting color of each diode, and eliminating chroma differences among different batches of leds.

6. High protective The front of IP65, and the rear of IP54, cabinet internal wiring with innovative structure;

7. Seamless assembled Both sides of cabinet lock designed, and precision can control in 0.3 mm;

8. 10000:1 contrast ratio With unique mask design and black SMD led, the contrast ratio can reach 10000:1.

9. Favorable effect using dot to dot calibration technology makes the image clearer and the layering stronger.

Specifications

Hot Model P5.95 P3.125 P3.91 P4.81 P5.95
Operating Environment indoor & outdoor indoor indoor indoor & outdoor indoor & outdoor
LED Encapsulation 2828 2020 (black) 2020 (black) 1818 2828
Pixel Ptich(mm) 5.95 3.125 3.91 4.81 5.95
Pixel Density(dot/m2) 28224 102400 65536 43264 28224
Weight(kg/unit) 5.9 5.8 5.7 6.5 6.4
Unit Resolution(w*h) 84*84 160*160 128*128 104*104 84*84
IP Grade Front IP65 Back IP54 IP50 IP50 Front IP65 Back IP54 Front IP65 Back IP54
