SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
Specifications
Brand Name :
JuCaiYuan
Model Number :
P1.923-P1.86-P1.875-P1.56
Certification :
CE/ROHS/FCC
Place of Origin :
Shenzhen,China
MOQ :
1 PCS
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6,000sqm per month
Delivery Time :
3-25 working days after finished the payment
Packaging Details :
Strong Carton Box, Standard Wood Case, Flight Case etc
Product Name :
Transparent Led Display Screen
Pixel Pitch :
1.923mm
Brightness :
>1000nits
Screen Dimension :
Customized
Application :
Video Display
Warranty :
2 Years
Description
Overview
Quick Details
Application:
Indoor, Advertising
Color:
Full color
Panel Size:
Customized
Pixel Pitch:
1.923mm
Place of Origin:
Guangdong, China
Model Number:
P1.923 indoor high definition
Brand Name:
TOPLED
Function:
SDK
Product name:
P1.923 high definition Led Display
Pixels:
1.923mm
Usage:
Indoor
Certificate:
CE ROHS FCC
Brightness:
≥900nits
Physical Density:
270,400pixels/m²
Scanning Mode:
1/30
Module size:
200*150mm
Life span:
100000hours
Supply Ability
Supply Ability
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. Flightcase carton 2. Honeycomb carton 3. Polywood case
Port
Shenzhen

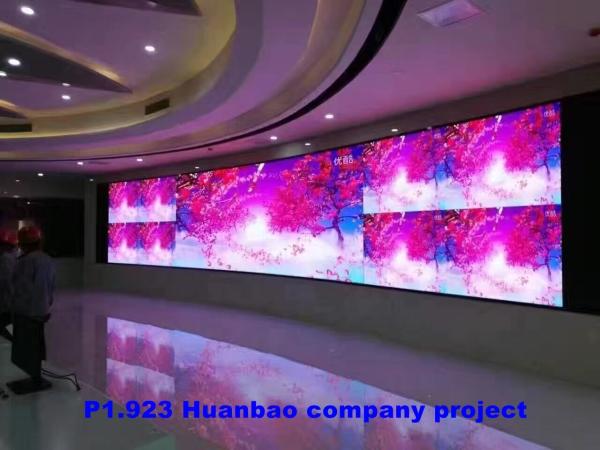

Picture Example:
Lead Time:
Quantity(Square Meters) 1 - 200 201 - 500 501 - 1000 >1000
Est. Time(days) 7 10 15 To be negotiated
Video Description
00:04
00:32

Products Parameter

P1.923 High definition full color digital led display for indoor advertising
Aluminum alloy die-casting technology, light and beautiful quality, using LED special high-brush IC+ hidden IC, easy to
achieve high definition image, professional and high-efficiency IC design, high-def energy-saving one step.

* HD quality
* Best visual image
* Strong resistant
* Good flatness
* Magnetic suction installation
* Front and rear maintenance
Indoor small pixel high definition series
Type
P1.25
P1.5625
P1.667
P1.875
P1.923
Pixel Pitch(mm)
1.25
1.5625
1.667
1.875
1.923
Physical Density (dot/sqm)
640,000
409,600
360,000
284,444
270,400
Brightness
≥900nits
≥900nits
≥900nits
≥900nits
≥900nits
Scanning Mode
1/30
1/32
1/30
1/30
1/30
LED type
SMD1010
SMD1010
SMD1010
SMD1515
SMD1515
Module Size
150×168.75mm
150×168.75mm
200×150mm
150×168.75mm
200×150mm
Module Resolution
120×135pixels
96×128pixels
120×90pixels
128×96pixels
104×78pixels
Grey Scale
16bit
16bit
16bit
16bit
16bit
Refresh Rate
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
Average Power
200w/m²
200w/m²
200w/m²
200w/m²
200w/m²
Cabinet Size
600×337.5mm
600×337.5mm
400×300mm
600×337.5mm
400×300mm
Cabinet Weight
5.9kg
5.9kg
3kg
8.5kg
3kg
Cabinet Material
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Input Voltage
AC 110V～220V
±10%
AC 110V～220V
±10%
AC 110V～220V ±10%
AC 110V～220V
±10%
AC 110V～220V
±10%
Protection Level
IP45
IP45
IP45
IP65
IP65
