advantages:
1, Silicon rubber is chosen for waterproof protector. This material has high thermostability. We design three-protectors structure for waterproof.
2, The mask is designed with high capacity of impact resistence. Buffering arc-surface 'structure is applied for the mask shelter It can defuse the impact football, tennis ball and players.
3, New structure design. It can meet the needs of rental, perimeter and fix installation. This multi-functional cabinets makes the new items easily and conveniently applied in different occasions. And this structure make the seam of cabinets connection much small. During hanging.
3, New color collocation, the color contrast between the black cabinet body and silver-gray door makes the LED screen much more elegant

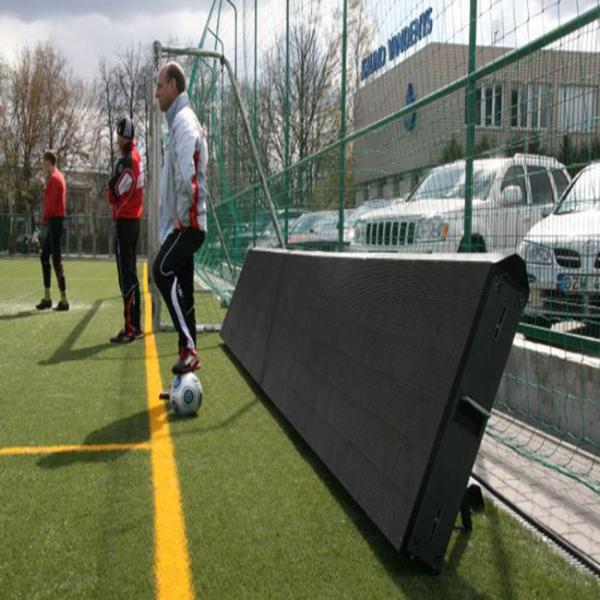

4, Angle adjustable back bracket. User can adjust the best display viewing angle for audience by the bracket. When rental and fix installation, the bracket can be folded on the cabinet.
5, Rubber protector for top of cabinet to protect the player from injury.
6, Aluminum alloy is used for the cabinet to reduce weight, easy to move from this stadium to that stadium.
♦ Technical specification
outdoor SMD P8 | ||||||||||||||
Resolution/mm | 8 / 6 /10 | |||||||||||||
Pixel configuration | 1R1G1B | |||||||||||||
Pixel density/pixels/sqm | 15625/sqm | |||||||||||||
Module resolution | 32x16 | |||||||||||||
Module size/mm | 320x160mm | |||||||||||||
View distance | 7-500m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >8000cd/sqm | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 16bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | (1/4) | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >4200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss | |||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
Maximum power:/sqm | <950W | |||||||||||||
Average power:/sqm | <350W | |||||||||||||
Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) | |||||||||||||
Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) | |||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |

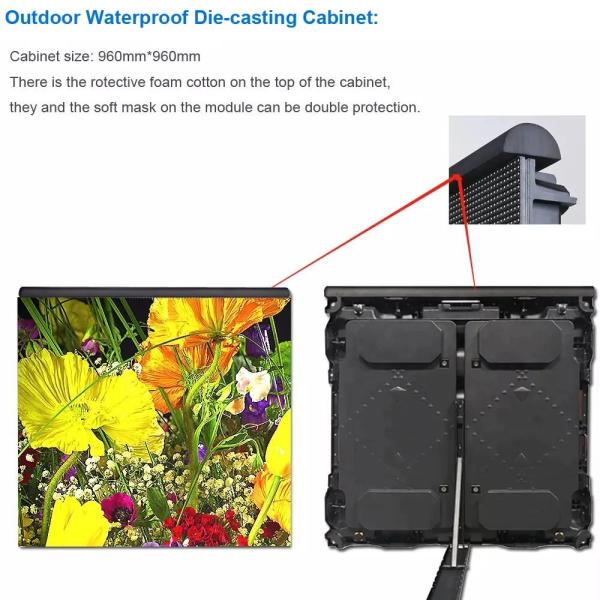

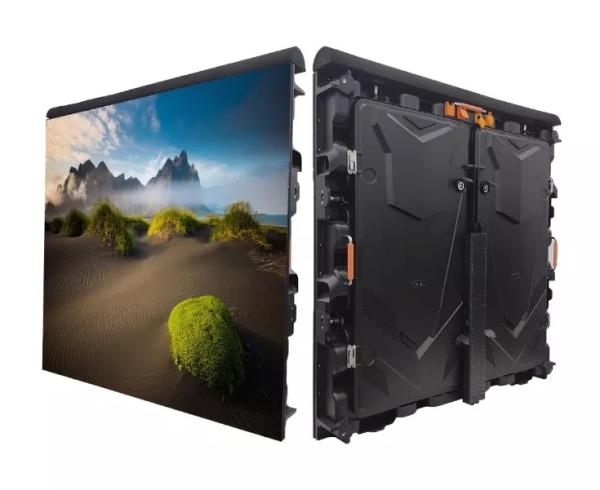

Cbainet details
♦ Packaging and shipping
Wooden case or flight case package are available.
